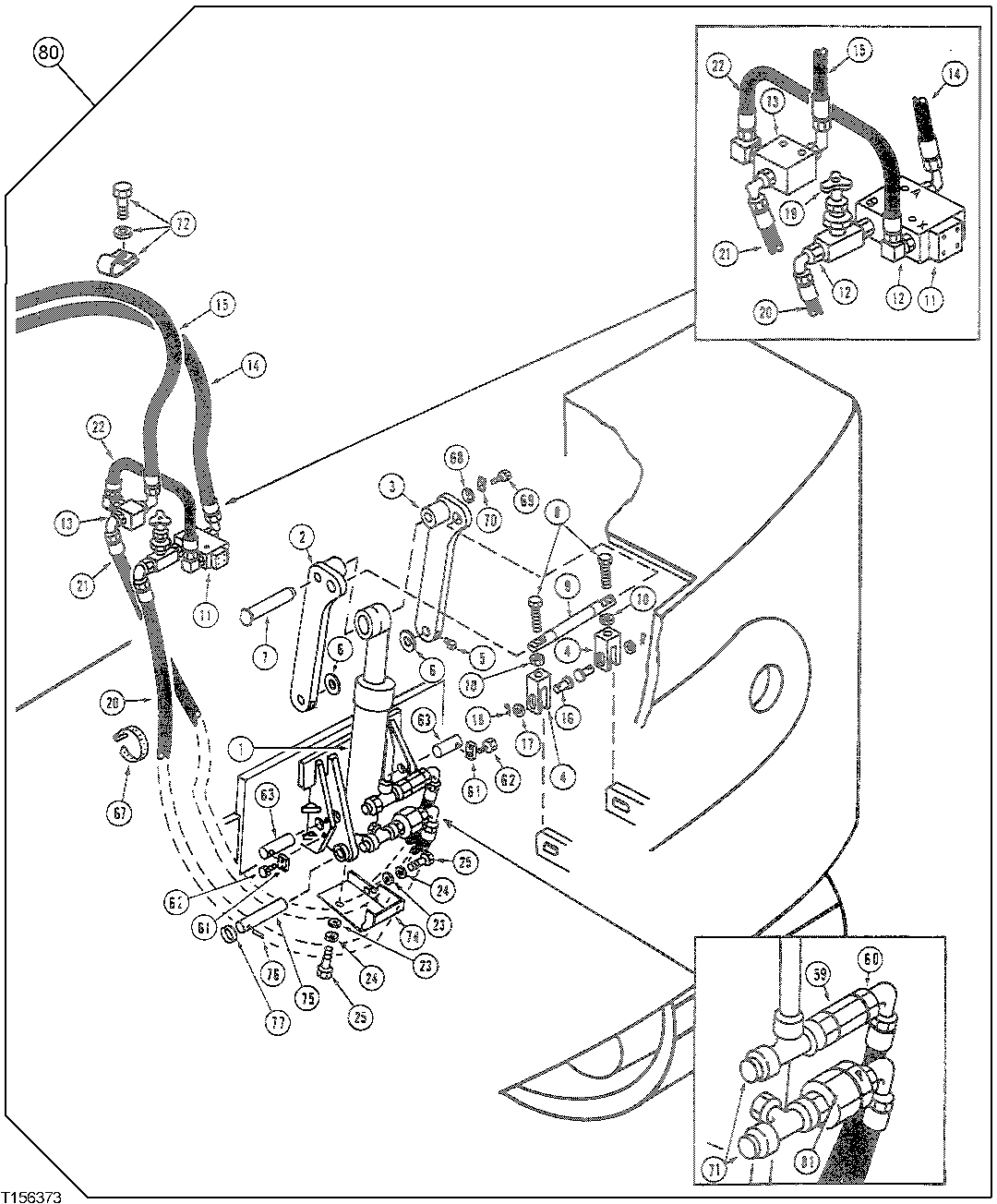

Запчасти John Deere 50CLC 318 - COUNTERWEIGHT REMOVAL KIT AND COMPONENTS 3365 HYDRAULIC CYLINDERS 33

1

4344048

Cylinder

(SUB FOR AT170141)

1шт.

2

9134171

Link

(LH) (SUB FOR AT170120)

1шт.

3

9134172

Link

(RH) (SUB FOR AT170122)

1шт.

4

4337792

Fork

(SUB FOR AT170125)

2шт.

6

4348458

Shim

(SUB FOR AT170138)

2шт.

7

4337830

Pin

(SUB FOR AT170127)

1шт.

8

4235221

Cap Screw

(SUB FOR AT170133)

2шт.

9

4337811

Pin

(SUB FOR AT170124)

1шт.

10

J953030

Nut

(SUB FOR AT170130)

2шт.

11

4240863

Flow Control Hyd. Valve

( 19M7875 AND 12M7066 Not Included With This Valve

1шт.

19M7875

Cap Screw

M10 X 70 (SUB FOR AT133602)

2шт.

12M7066

Lock Washer

10 mm

2шт.

12

4154656

Elbow Fitting

(SUB FOR TH101588)

1шт.

13

4210942

Adapter Fitting

(SUB FOR AT131868)

2шт.

A853144

Adapter Fitting

(SUB FOR THA853144)

2шт.

4240862

Manifold

(SUB FOR AT132547)

2шт.

4154656

Elbow Fitting

(SUB FOR TH101588)

1шт.

19M8655

Cap Screw

M10 X 55

1шт.

12M7066

Lock Washer

10 mm

1шт.

14

T77857

O-Ring

(SUB FOR TH108323)

2шт.

4331745

Hydraulic Hose

(SUB FOR AT170149)

1шт.

4348093

Hydraulic Hose

(SUB FOR TH4348093)

1шт.

Hose Guard

(CTL) (MAKE FROM XHG-0 75 ) (SUB FOR AT138222)

2шт.

15

4331745

Hydraulic Hose

(SUB FOR AT170149)

1шт.

4348093

Hydraulic Hose

(SUB FOR TH4348093)

1шт.

Hose Guard

(CTL) (MAKE FROM XHG-0 75 ) (SUB FOR AT138222)

2шт.

16

4337833

Pin

(SUB FOR AT170126)

2шт.

17

A590142

Washer

(SUB FOR AT170132)

2шт.

18

414322

Spring Locking Pin

(SUB FOR AT170131)

2шт.

19

94-1703

Adapter Fitting

(SUB FOR TH101976)

1шт.

4220806

Flow Control Hyd. Valve

1шт.

20

4343812

Hydraulic Hose

(SUB FOR AT170150)

1шт.

4457800

Hydraulic Hose

(SUB FOR TH4457800)

1шт.

21

4274178

Elbow Fitting

(SUB FOR AT170146)

2шт.

4343813

Hydraulic Hose

(SUB FOR AT170151)

1шт.

4457798

Hydraulic Hose

(SUB FOR TH4457798)

1шт.

T77857

O-Ring

(SUB FOR TH108323)

2шт.

22

AT126482

Hydraulic Hose

1шт.

24

12H317

Lock Washer

9/16"

3шт.
