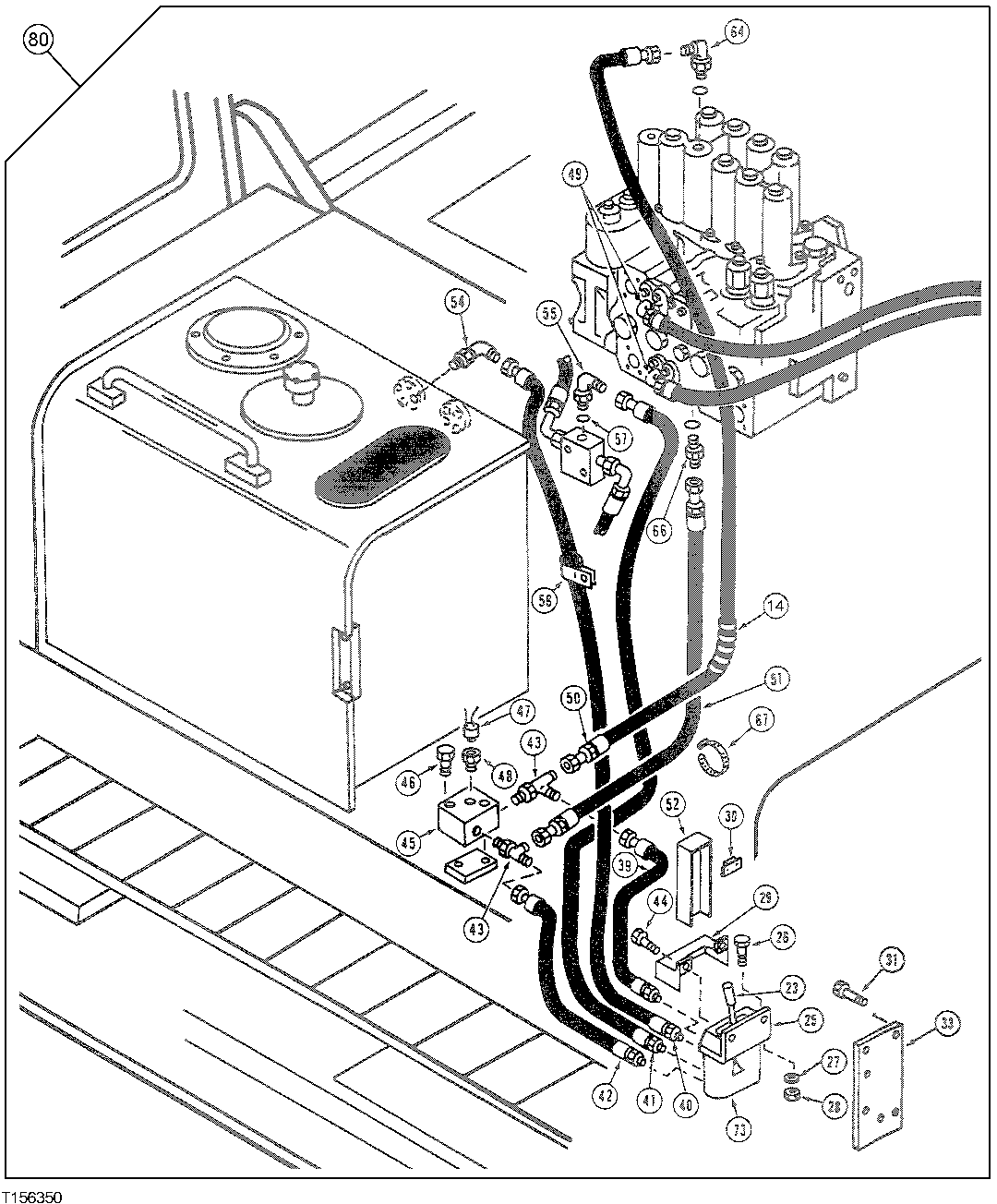

Запчасти John Deere 50CLC 317 - COUNTERWEIGHT REMOVAL KIT AND COMPONENTS 3365 HYDRAULIC CYLINDERS 33

14

Conduit

(CTL) (SUB FOR TH100996 OR A T138222 ) (MAKE FROM XHG-075)

1шт.

23

9732429

Lever

(SUB FOR AT132598)

1шт.

34M7102

Spring Pin

5 X 26 mm

1шт.

4122424

Grip

(SUB FOR AT132489)

1шт.

24M7085

Washer

15 X 28 X 2.500 mm

3шт.

25

3046025

Bracket

(SUB FOR AT132476)

1шт.

19M6332

Cap Screw

M14 X 35

3шт.

26

19M7402

Cap Screw

M10 X 25

2шт.

27

12M7066

Lock Washer

10 mm

2шт.

28

14M7274

Nut

M10

2шт.

29

8044683

Cover

(SUB FOR AT132582)

1шт.

30

4240985

Catch

(SUB FOR AT132550)

1шт.

21M7394

Screw

M3 X 10

2шт.

12H233

Lock Washer

1/8" (SUB FOR 12M7048)

2шт.

31

19M8011

Cap Screw

M12 X 30

4шт.

39

AT37543

Hydraulic Hose

1шт.

4436254

Hydraulic Hose

(SUB FOR TH4436254)

1шт.

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

40

4373639

Hydraulic Hose

(SUB FOR AT170155 OR 4258889)

1шт.

4457505

Hydraulic Hose

(SUB FOR TH4457505)

1шт.

41

4373639

Hydraulic Hose

(SUB FOR AT170155 OR 4258889)

1шт.

4457508

Hydraulic Hose

(SUB FOR TH4457508)

1шт.

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

42

4290170

Hydraulic Hose

(SUB FOR AT170158)

1шт.

4457503

Hydraulic Hose

(SUB FOR TH4457503)

1шт.

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

43

4207300

Tee Fitting

(SUB FOR AT126381)

1шт.

A852423

Tee Fitting

(SUB FOR THA852423)

1шт.

44

19M7402

Cap Screw

M10 X 25

1шт.

45

4195759

Flow Control Hyd. Valve

1шт.

46

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

47

4254563

Pressure Switch

(SUB FOR AT154212)

1шт.

4436535

Sensor

(SUB FOR TH4436535)

1шт.

48

4339737

Reducer

(SUB FOR AT170159)

1шт.

49

4240861

Flange

(SUB FOR AT132546)

2шт.

4395369

Flange Fitting

(SUB FOR TH4395369)

2шт.

T72216

O-Ring

2шт.

4506418

O-Ring

(SUB FOR U46489)

2шт.

19M8734

Screw

M14 X 45

8шт.

4210942

Adapter Fitting

(SUB FOR AT131868)

2шт.

A853144

Adapter Fitting

(SUB FOR THA853144)

2шт.

T77857

O-Ring

(SUB FOR TH108323)

2шт.

50

4305130

Hydraulic Hose

(SUB FOR AT170156)

1шт.

4457509

Hydraulic Hose

(SUB FOR TH4457509)

1шт.

51

4234397

Hydraulic Hose

(SUB FOR AT170157)

1шт.

4457510

Hydraulic Hose

(SUB FOR TH4457510)

1шт.

52

4240984

Cover

(SUB FOR AT132549)

1шт.

54

4241385

Elbow Fitting

(SUB FOR AT170160)

1шт.

55

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

57

M800650

Packing

1шт.

58

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

1шт.

AT121321

Hose Clamp

1шт.

64

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

66

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

67

H77698

Tie Band

1шт.

73

9074843

Hyd Actuated Control Valve

1шт.

80

AT196481

Kit

(WHOLE GOODS) Additional C omponents On Separate Page

1шт.
