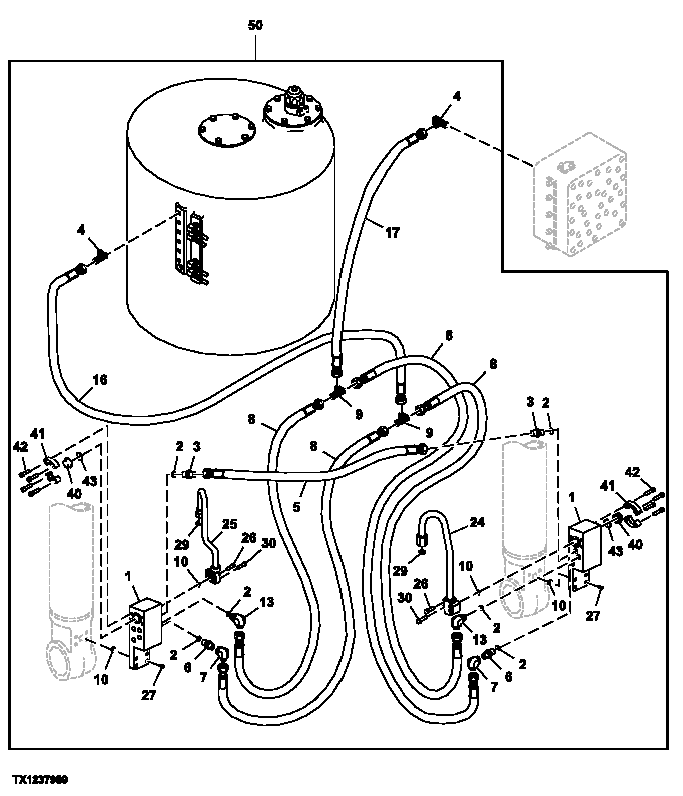

Запчасти John Deere 50CLC 315 - Boom Anti-Drift Kit 3360 HYDRAULIC SYSTEM

1

AT300303

Check Valve

Boom

2шт.

2

AT300313

Sealing Ring

6шт.

3

X6V4OMXS

Elbow Fitting

2шт.

4

AT36921

Tee Fitting

2шт.

5

AT339065

Hydraulic Hose

SUB FOR (1) AT191567

1шт.

6

X6F4OMXS

Adapter Fitting

2шт.

7

AE24616

Elbow Fitting

2шт.

8

AP36265

Hydraulic Hose

4шт.

9

Adapter Fitting

X6JTXS NLA

2шт.

10

T78313

O-Ring

4шт.

13

X6C4OMXS

Elbow Fitting

2шт.

16

AT300465

Hydraulic Hose

1шт.

17

AT300466

Hydraulic Hose

1шт.

24

AT313679

Oil Line

1шт.

25

AT313681

Oil Line

1шт.

26

19M8444

Screw

M12 X 60

4шт.

27

19M9012

Screw

M12 X 55

8шт.

29

T76938

O-Ring

2шт.

30

19M8444

Screw

M12 X 60

4шт.

40

FF550392

Plug

1шт.

41

AT131685

Flange Fitting

SUB FOR 4089703

2шт.

42

J781445

Bolt

4шт.

43

966993

O-Ring

SUB FOR Z966993

1шт.

50

AT316251

Kit

WHOLE GOODS Boom Reduced Drift Kit

1шт.
