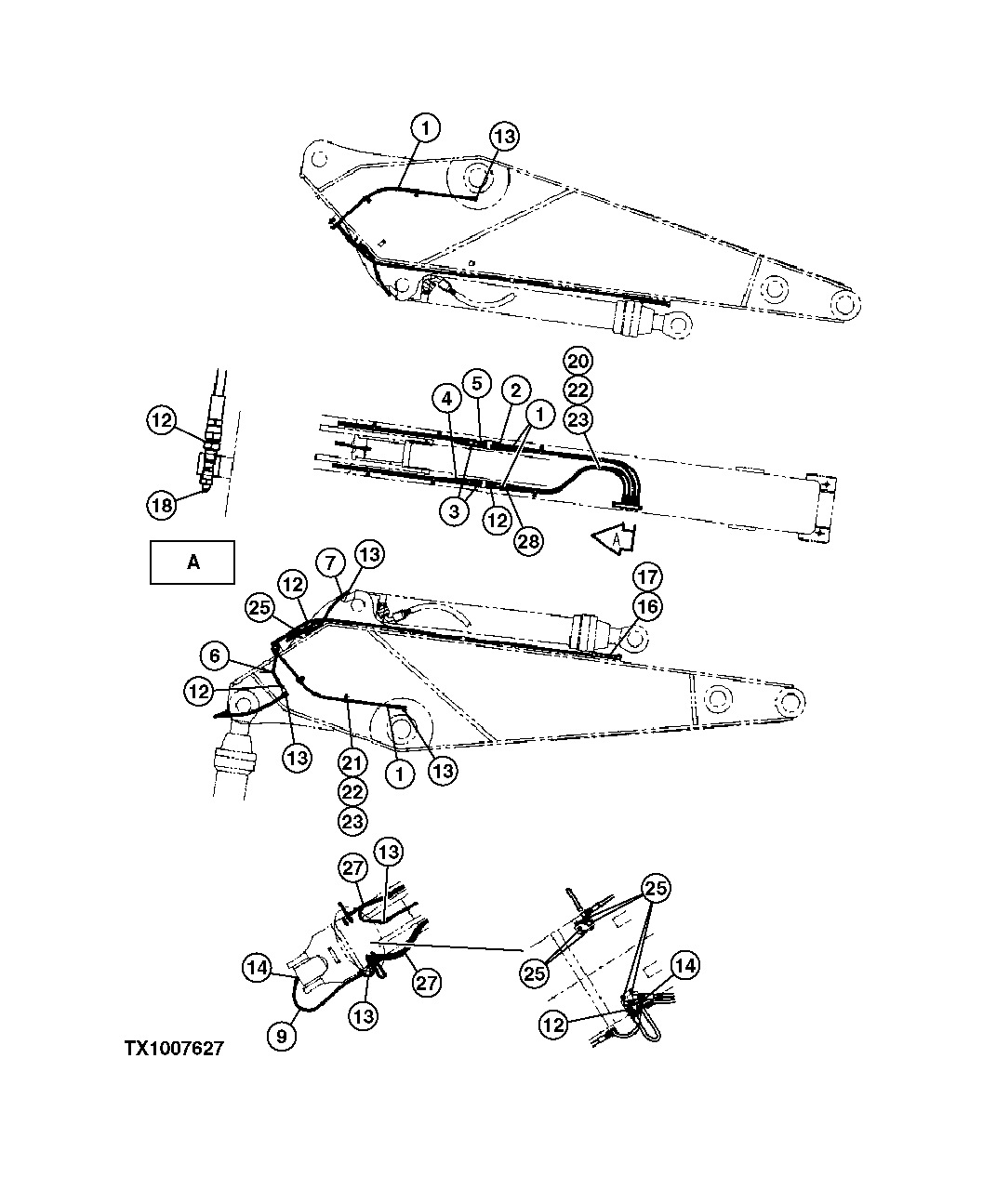

Запчасти John Deere 50CLC 314 - LUBRICATION HOSES AND LINES-BULK EXCAVATING ARM 3360 HYDRAULIC SYSTEM

1

AE42281

Hydraulic Hose

4шт.

2

4306264S

Hose

SUB FOR 4249332 OR 4306264-S

1шт.

3

4456835

Hose

SUB FOR 4298763

2шт.

4

AT30743

Hydraulic Hose

1шт.

5

4449548

Hydraulic Hose

1шт.

6

4316263

Hose

1шт.

7

4203161

Hydraulic Hose

1шт.

9

4304400-S

Hydraulic Hose

1шт.

12

4154651

Adapter Fitting

15шт.

13

4154656

Elbow Fitting

9шт.

14

4154655

Elbow Fitting

2шт.

16

4274903

Junction Block

1шт.

17

19M7358

Cap Screw

M10 X 40

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

18

JD7769

Lubrication Fitting

SUB FOR TH100364

4шт.

20

4192018

Clip

8шт.

21

4190261

Clip

4шт.

22

19M8324

Cap Screw

M10 X 16

11шт.

23

12M7066

Lock Washer

10 mm

11шт.

25

M800462

Plug

7шт.

27

M73027

Tie Band

SUB FOR 4467676

2шт.

28

4468009

Hose

1шт.
