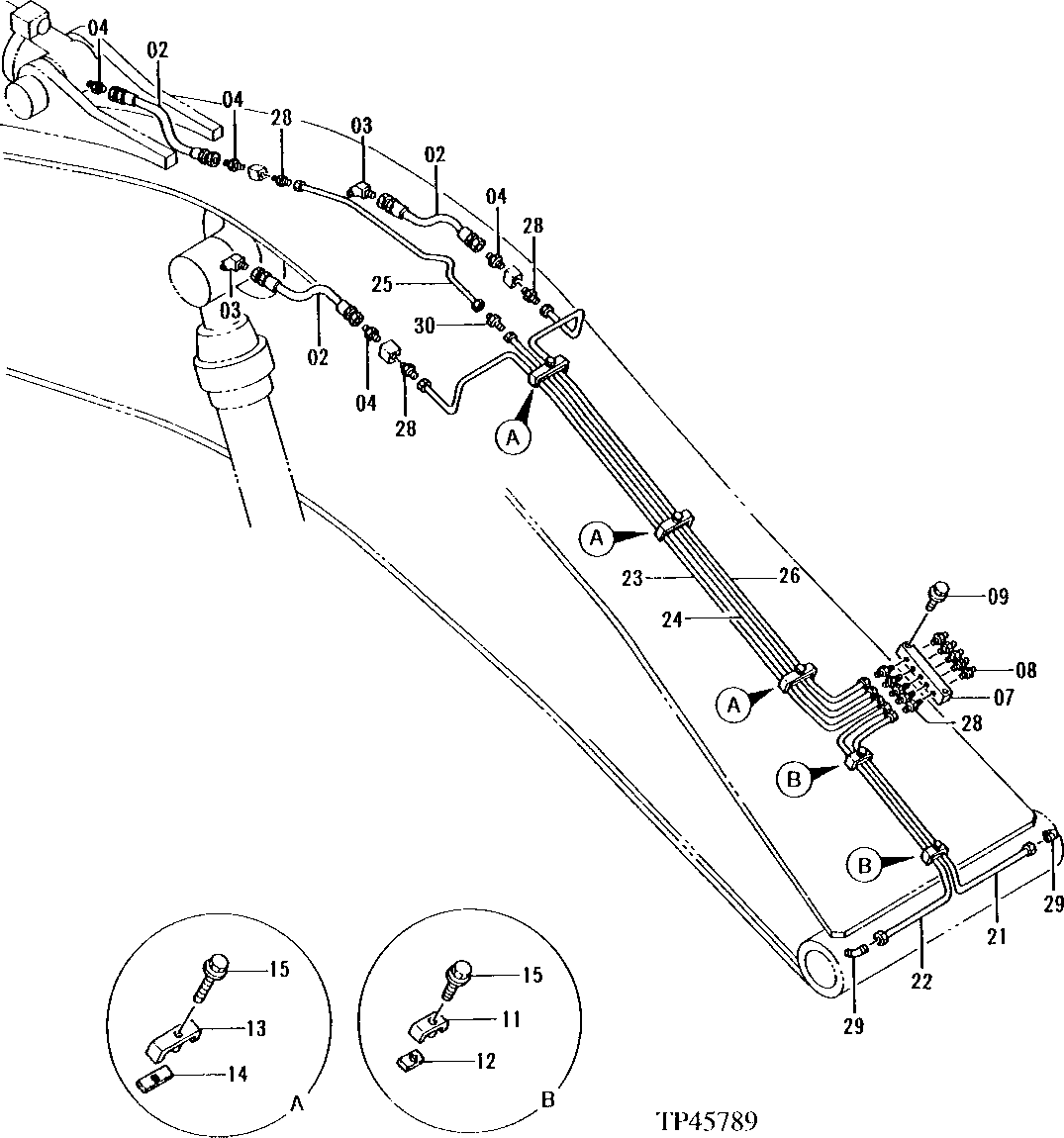

Запчасти John Deere 50CLC 312 - LUBRICATION HOSES AND LINES-BOOM 3360 HYDRAULIC SYSTEM

2

TH102493

Hydraulic Hose

3шт.

3

94-1501

Elbow Fitting

(SUB FOR AT121757)

2шт.

4

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

4шт.

7

4274903

Junction Block

(SUB FOR AT202119)

1шт.

8

JD7769

Lubrication Fitting

5шт.

9

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

9736422

Clamp

(SUB FOR AT202175)

2шт.

12

AT318012

Isolator

(SUB FOR 4269657 ) (SUB FOR AT130970)

2шт.

13

9736421

Clamp

(SUB FOR AT202174)

3шт.

14

AT318020

Strap

(SUB FOR 4273721, AT131668)

3шт.

15

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

21

4428307

Hydraulic Hose

(SUB FOR AT201688) Fabricate

1шт.

22

AH96002

Hydraulic Hose

(ALSO ORDER AH79175 ) (SUB FOR 4428306 AND AT201689) Fabricate

1шт.

23

3066800

Line

(SUB FOR AT201699)

1шт.

24

3066801

Line

(SUB FOR AT201700)

1шт.

25

3066802

Line

(SUB FOR AT201701)

1шт.

26

3066803

Line

(SUB FOR AT201702)

1шт.

28

4130169

Fitting

(SUB FOR TH101391)

8шт.

29

4130175

Fitting

(SUB FOR TH101392)

2шт.

30

Z32962

Fitting

1шт.
