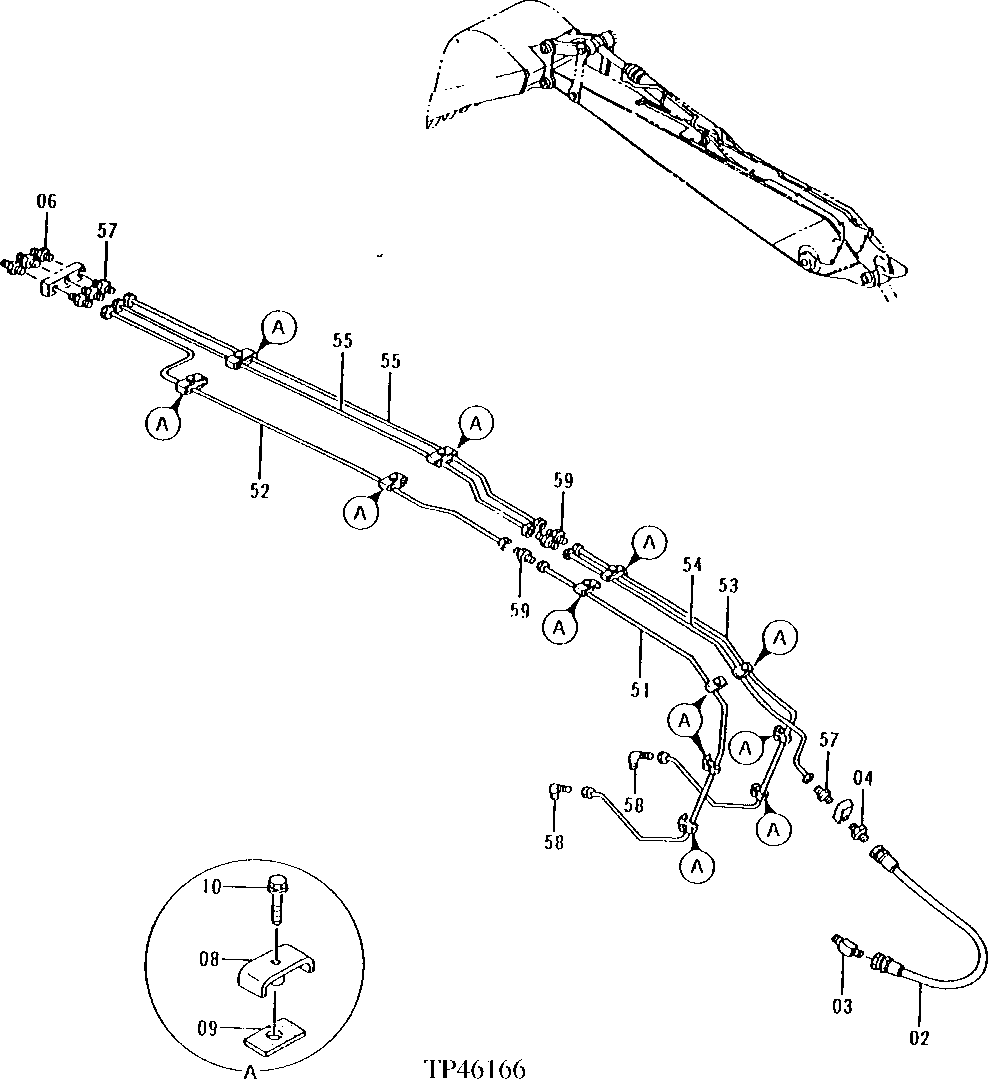

Запчасти John Deere 50CLC 311 - LUBRICATION HOSES AND LINES FOR LONG ARM 3360 HYDRAULIC SYSTEM

2

AT202092

Hydraulic Hose

1/4" X 750 mm (29-1/2") X 1/4"

1шт.

3

94-1501

Elbow Fitting

(SUB FOR AT121757)

1шт.

4

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

1шт.

6

JD7769

Lubrication Fitting

3шт.

8

9736422

Clamp

(SUB FOR AT202175)

12шт.

9

AT318012

Isolator

(SUB FOR 4269657 ) (SUB FOR AT130970)

12шт.

10

19M7662

Cap Screw

M10 X 30

12шт.

51

3071657

Line

(SUB FOR AT172107)

1шт.

52

3071658

Line

(SUB FOR AT172108)

1шт.

53

3071659

Line

(SUB FOR AT172109)

1шт.

54

4345528

Line

(SUB FOR AT172110)

1шт.

55

3071660

Tube

(SUB FOR AT172111)

2шт.

57

4130169

Fitting

(SUB FOR TH101391)

4шт.

58

4130175

Fitting

(SUB FOR TH101392)

2шт.

59

Z32962

Fitting

3шт.
