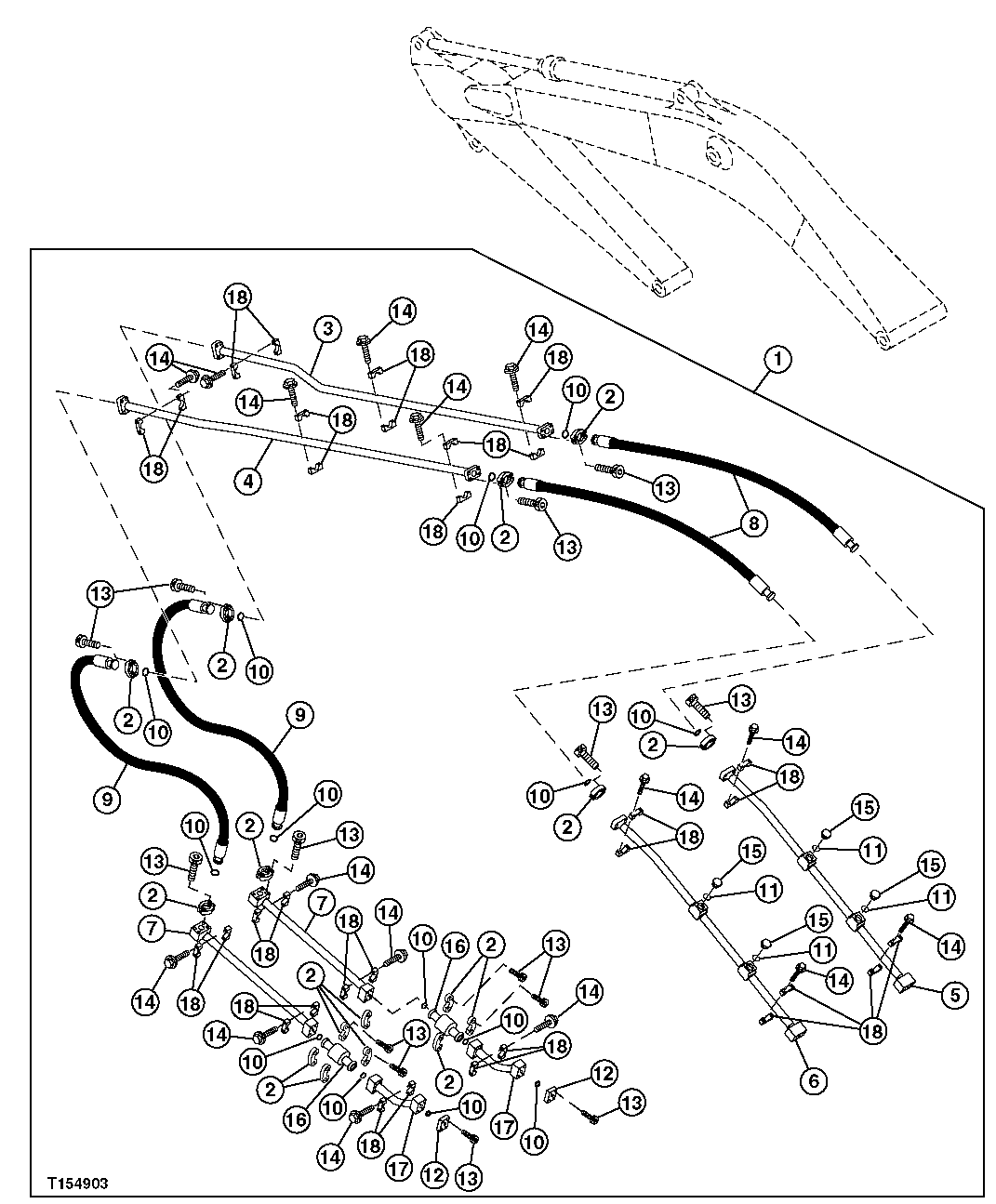

Запчасти John Deere 50CLC 300 - AUXILIARY HYDRAULIC LINES 3360 HYDRAULIC SYSTEM

1

Field Installation Kit

Auxiliary Assembly Contains All Items On T his Page - Additional Components Listed On Separate Pages (WHOLE GOODS) ( AT195681 NLA )

1шт.

2

AT131685

Flange Fitting

24шт.

3

AT169920

Oil Line

Boom Auxiliary (RH)

1шт.

4

AT169921

Oil Line

Boom Auxiliary (LH)

1шт.

5

AT169922

Oil Line

Boom Auxiliary (REAR) (RH)

1шт.

6

AT172488

Oil Line

Boom Auxiliary (REAR) (LH)

1шт.

7

AT169923

Oil Line

Arm Auxiliary

2шт.

8

AT169990

Hydraulic Hose

Boom Knee

2шт.

9

AT169991

Hydraulic Hose

90 in., Boom To Arm Arm Hose Length

2шт.

10

T72216

O-Ring

14шт.

11

T76938

O-Ring

4шт.

12

T153655

Plug

2шт.

13

19M7393

Cap Screw

M14 X 50

44шт.

14

19M7818

Screw

M12 X 80

36шт.

15

38H1419

Fitting

4шт.

16

AT195936

Ball Cock Valve

2шт.

17

AT196315

Oil Line

2шт.

18

AT201796

Clamp

32шт.
