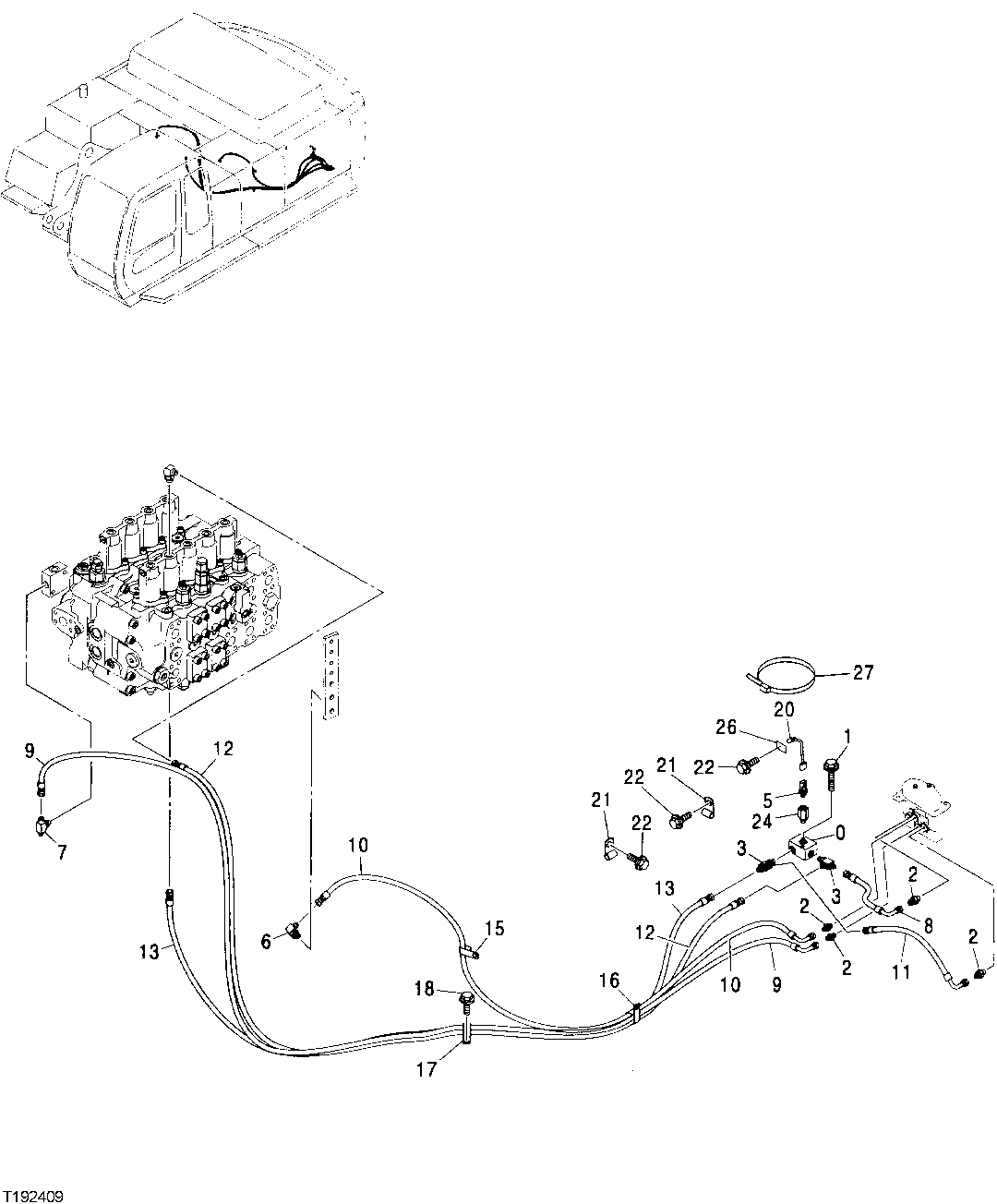

Запчасти John Deere 50CLC 296 - COUNTERWEIGHT REMOVAL PILOT HYDRAULIC HOSES 3360 HYDRAULIC SYSTEM

0

4195759

Flow Control Hyd. Valve

(SUB FOR AT132401)

1шт.

1

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

2

A852123

Adapter Fitting

(INCLUDES M800650)

4шт.

M800650

Packing

4шт.

3

A852423

Tee Fitting

(SUB FOR THA852423)

2шт.

M800650

Packing

(SUB FOR 957366)

2шт.

5

4436535

Sensor

(SUB FOR TH4436535)

1шт.

6

A852333

Elbow Fitting

(INCLUDES CH11570 ) (SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

CH11570

O-Ring

1шт.

7

4226388

Tee Fitting

(INCLUDES M800650 ) (SUB FOR AT205878)

1шт.

M800650

Packing

1шт.

8

4436254

Hydraulic Hose

(SUB FOR TH4436254)

1шт.

9

4457508

Hydraulic Hose

(SUB FOR TH4457508)

1шт.

10

4457505

Hydraulic Hose

(SUB FOR TH4457505)

1шт.

11

4457503

Hydraulic Hose

(SUB FOR TH4457503)

1шт.

12

4443902

Hydraulic Hose

(SUB FOR TH4457509, 4457509 OR 4443896)

1шт.

13

4457510

Hydraulic Hose

(SUB FOR TH4457510)

1шт.

15

T32854

Clamp

1шт.

16

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

17

AT121321

Hose Clamp

1шт.

18

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

20

4456689

Wiring Harness

(SUB FOR TH4456689)

1шт.

21

4190261

Clip

(SUB FOR TH109649)

2шт.

22

19M8761

Screw

M10 X 22

3шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

24

4202564

Adapter Fitting

1шт.

26

4257159

Bracket

1шт.

27

H77698

Tie Band

1шт.
