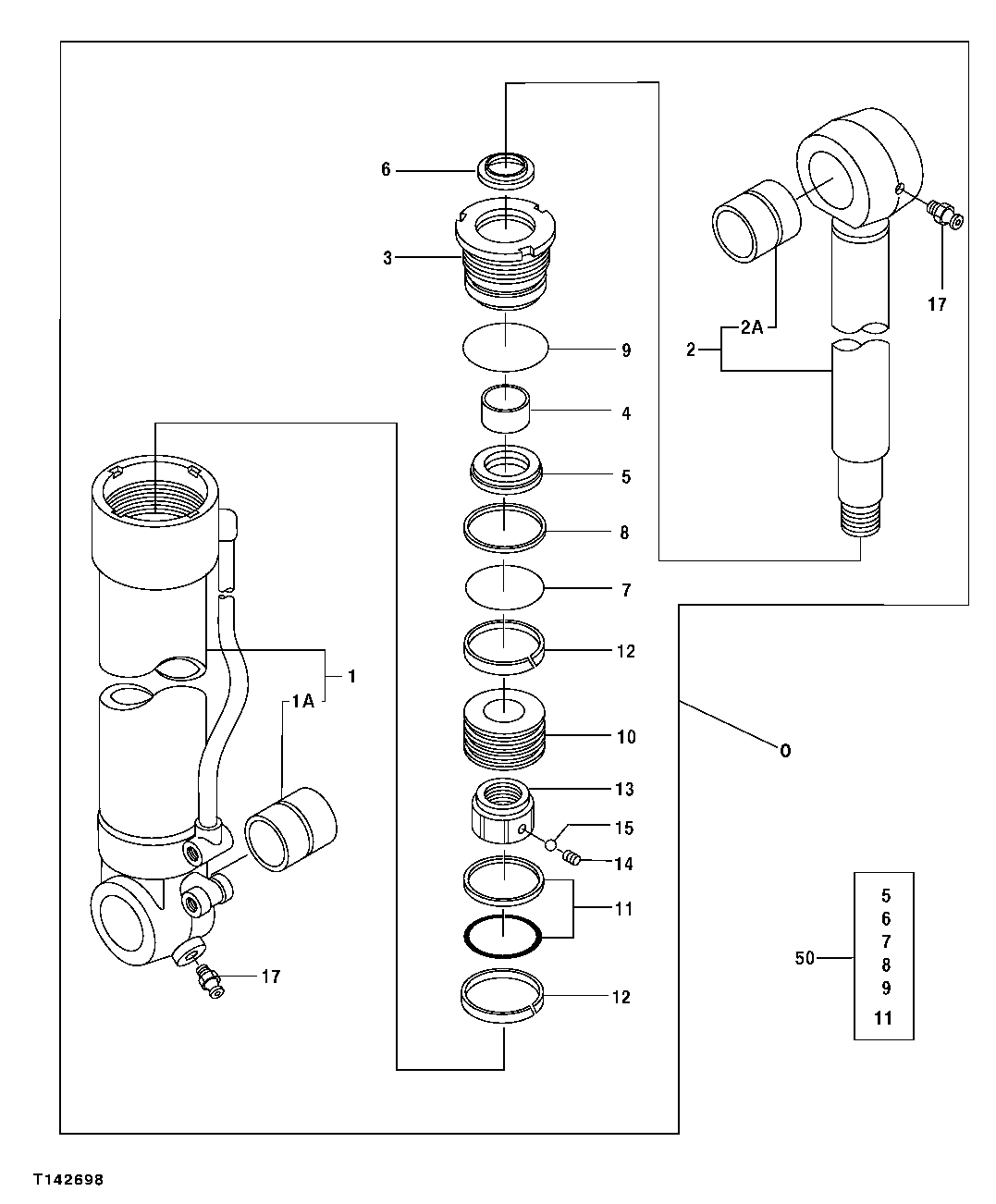

Запчасти John Deere 50CLC 294 - Cylinder Components (Counterweight Removal) 3360 HYDRAULIC SYSTEM

0

4344048

Cylinder

SUB FOR AT170141

1шт.

1

0657701

Tube

SUB FOR AT174367

1шт.

1A

0188905

Bushing

SUB FOR AT132686

1шт.

2

0657702

Rod

SUB FOR AT174369

1шт.

2A

0188905

Bushing

SUB FOR AT132686

1шт.

3

0657703

Cylinder Head

SUB FOR AT174370

1шт.

4

0657704

Bushing

SUB FOR AT174371

1шт.

5

4085460

Seal

SUB FOR AT132692

1шт.

6

H158164

Scraper Ring

SUB FOR AT163910 OR 0437005

1шт.

7

A811125

O-Ring

SUB FOR AT200001

1шт.

8

0409906

Back-Up Ring

SUB FOR 4S00666

1шт.

9

AT264224

O-Ring

SUB FOR AT122159

1шт.

10

0657705

Piston

SUB FOR AT174375

1шт.

11

0254305

Seal

SUB FOR AT174377

1шт.

12

0657706

Ring

SUB FOR AT174378

2шт.

13

0310511

Nut

SUB FOR TH109325

1шт.

14

22M6684

Set Screw

M12 X 12

1шт.

15

T13624

Ball

1шт.

17

TH100074

Lubrication Fitting

2шт.

50

Seal Kit

SUB FOR AT174383, 4363078 NLA

1шт.
