293 - CYLINDER (COUNTERWEIGHT REMOVAL)

Запчасти John Deere 50CLC 293 - CYLINDER (COUNTERWEIGHT REMOVAL) 3360 HYDRAULIC SYSTEM

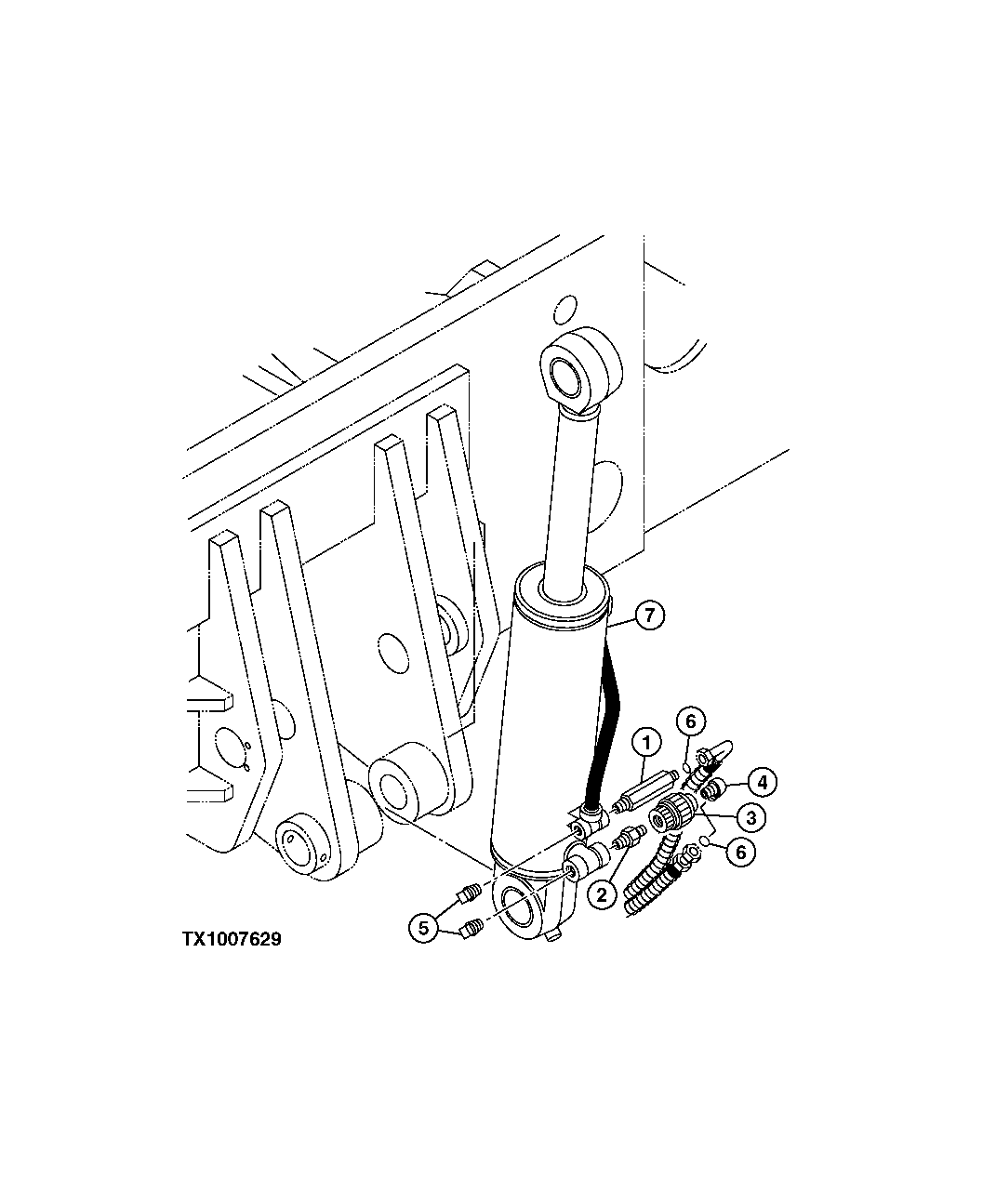

Схема запчастей John Deere 50CLC - 293 - CYLINDER (COUNTERWEIGHT REMOVAL) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4344048

Cylinder

(SUB FOR AT170141)

1шт.

1

3071216

Adapter Fitting

(SUB FOR AT170143)

1шт.

2

4339469

Adapter Fitting

(SUB FOR AT170144)

1шт.

3

4221984

Valve

(SUB FOR AT132492)

1шт.

4

4274178

Elbow Fitting

(SUB FOR AT170146)

1шт.

5

94-2024

Fitting Plug

(SUB FOR TH101292)

2шт.

6

T77857

O-Ring

2шт.

7

4344048

Cylinder

(SUB FOR AT170141)

1шт.

Выбрано товаров: 8
