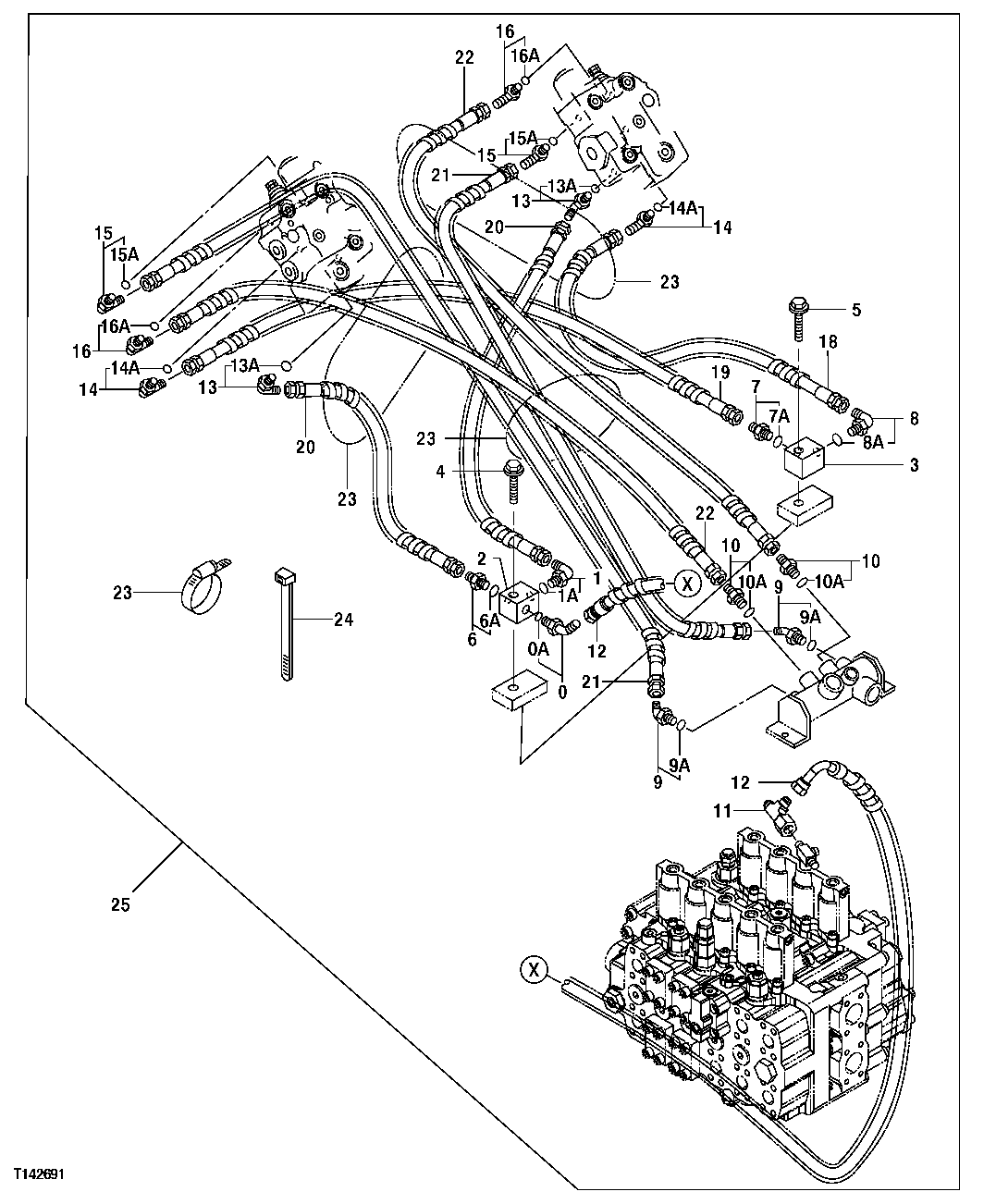

Запчасти John Deere 50CLC 290 - BOOM CYLINDER LOAD LOWERING VALVE HOSES 3360 HYDRAULIC SYSTEM

0

4190244

Elbow Fitting

(SUB FOR TH106152)

1шт.

0A

CH11570

O-Ring

1шт.

1

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

1A

CH11570

O-Ring

1шт.

2

4251601

Junction Block

(SUB FOR AT175150)

1шт.

3

4335378

Junction Block

(SUB FOR AT175157)

1шт.

4

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

5

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.

6

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

6A

CH11570

O-Ring

1шт.

7

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

7A

M800650

Packing

1шт.

8

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

8A

M800650

Packing

1шт.

9

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

9A

CH11570

O-Ring

1шт.

10

A852144

Adapter Fitting

(SUB FOR THA852144)

2шт.

10A

4506418

O-Ring

(SUB FOR U46489)

1шт.

11

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

12

4463266

Hydraulic Hose

(SUB FOR TH4463266)

1шт.

13

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

13A

CH11570

O-Ring

1шт.

14

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

14A

M800650

Packing

1шт.

15

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

15A

CH11570

O-Ring

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

(SUB FOR U46489)

1шт.

18

4322515

Hydraulic Hose

(SUB FOR AT175158)

1шт.

19

4322516

Hydraulic Hose

(SUB FOR AT175159)

1шт.

20

4322512

Hydraulic Hose

(SUB FOR AT175161)

2шт.

21

4322514

Hydraulic Hose

(SUB FOR AT175162)

2шт.

22

4322513

Hydraulic Hose

(SUB FOR AT175163)

2шт.

23

TY22485

Hose Clamp

(SUB FOR AT175267 OR 4351923)

3шт.

24

H77698

Tie Band

5шт.

25

Field Installation Kit

(AT194999 NLA) Boom Cylinder Load Lowering Valve Kit Additional Compo nents On Separate Page (WHOLE GOODS )

1шт.
