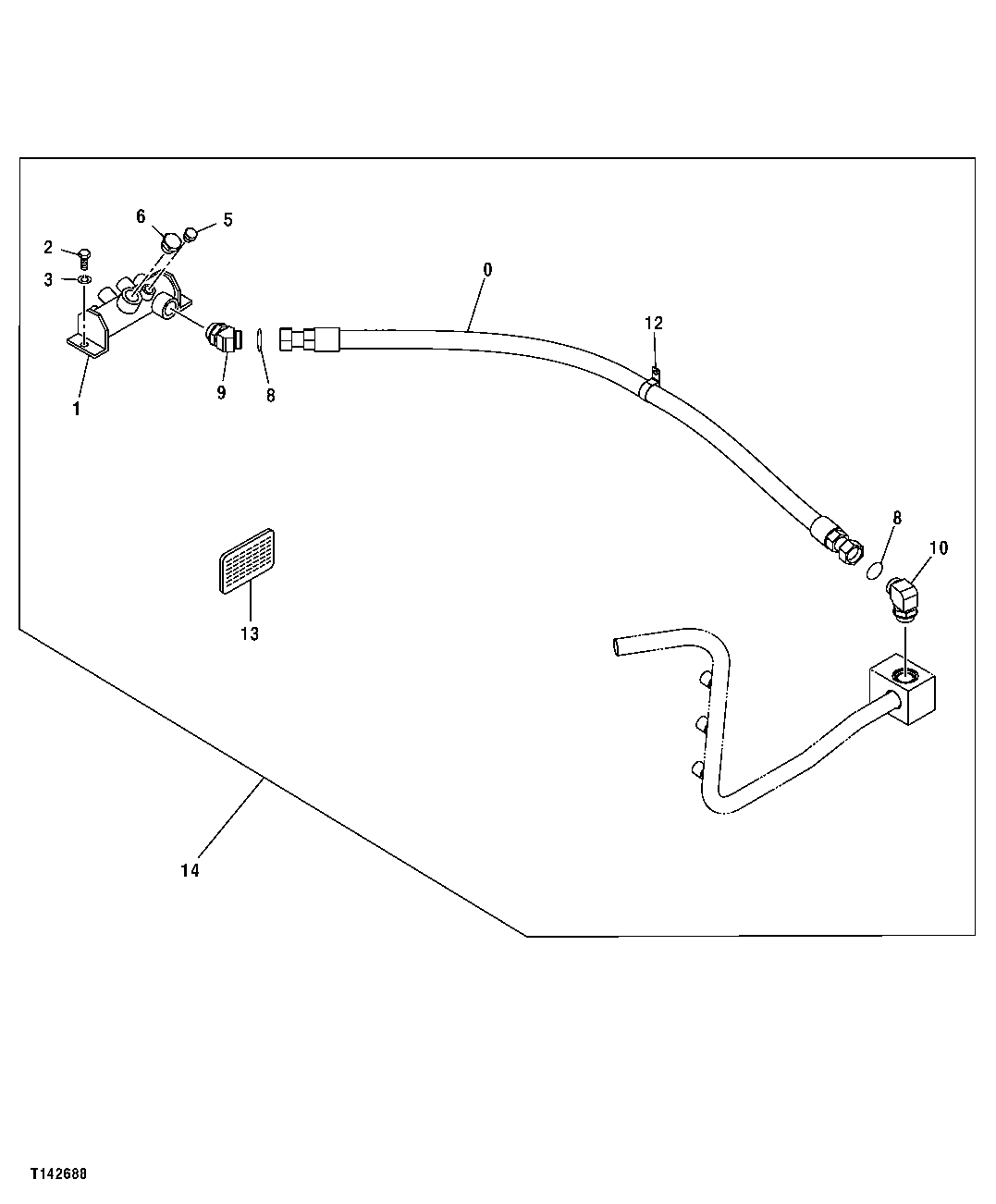

Запчасти John Deere 50CLC 288 - BOOM CYLINDER LOAD LOWERING VALVE HOSE 3360 HYDRAULIC SYSTEM

0

4462695

Hydraulic Hose

SUB FOR TH4462695

1шт.

1

8042550

Manifold

SUB FOR AT175140

1шт.

2

19M7872

Cap Screw

M12 X 25

2шт.

3

12H301

Lock Washer

1/2"

2шт.

5

4174541

Fitting

SUB FOR TH110477

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

6

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

TH101926

O-Ring

1шт.

8

T78612

O-Ring

SUB FOR 4187329

2шт.

9

A853200

Elbow Fitting

SUB FOR THA853200

1шт.

970860

O-Ring

SUB FOR TH104634

1шт.

10

Elbow Fitting

THA853300 NLA

1шт.

970860

O-Ring

SUB FOR TH104634

1шт.

12

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

1шт.

13

Plate

TH4370859 NLA

1шт.

14

Field Installation Kit

AT194999 NLA Boom Cylinder Load L owering Valve Kit Additional Compo nents On Separate Page WHOLE GOODS

1шт.
