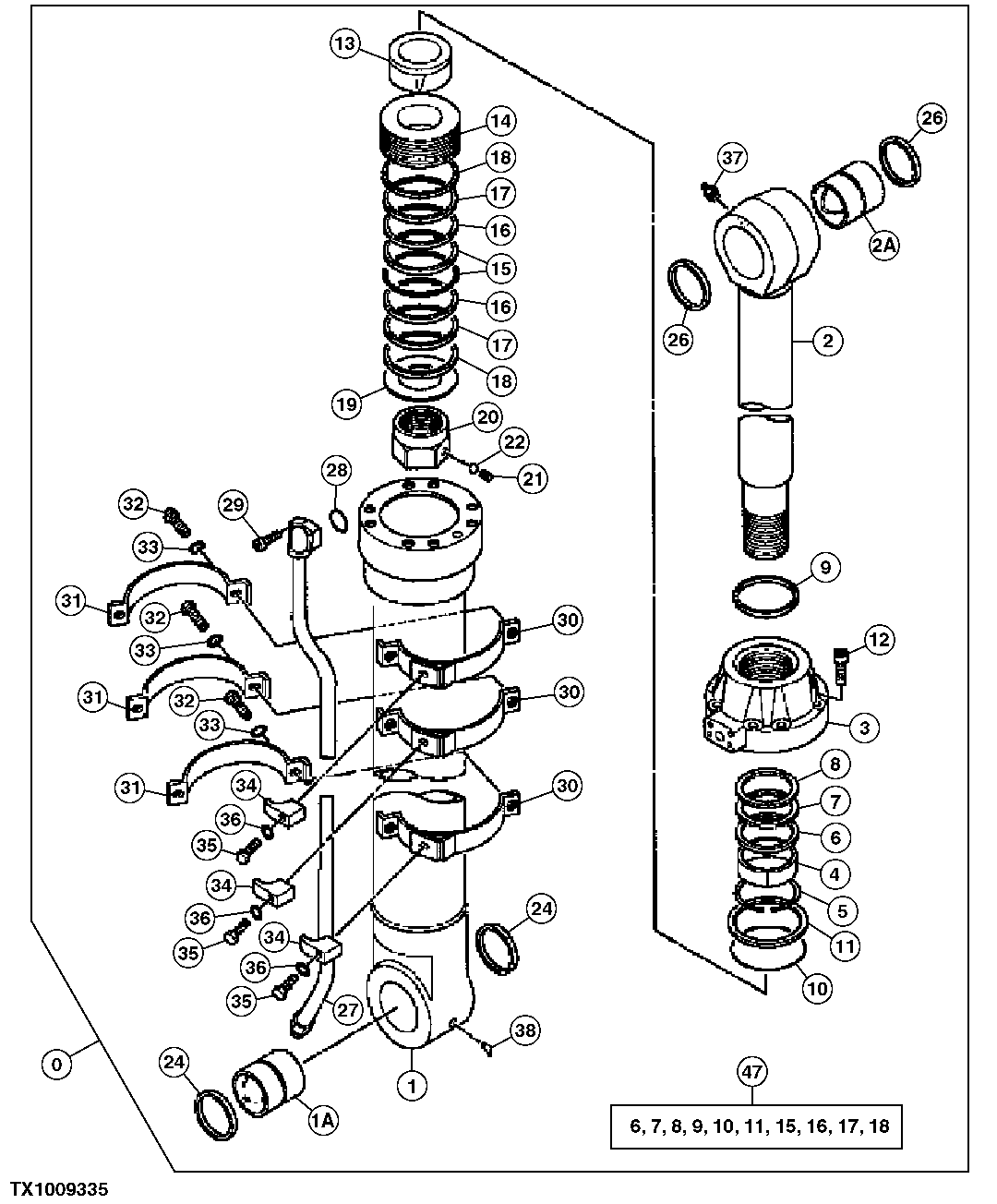

Запчасти John Deere 50CLC 287 - Bucket Cylinder (4.9 M Long Arm) (Units Built December 2005 and After) 3360 HYDRAULIC SYSTEM

0

4658553J

Hydraulic Cylinder

SUB FOR 4658553

1шт.

1

0997701

Hydraulic Cylinder Barrel

1шт.

1A

0937502

Bushing

1шт.

2

0937503

Hydraulic Cylinder Rod

1шт.

2A

0937504

Bushing

1шт.

3

0997702

Cylinder Head

1шт.

4

T108050

Wear Ring

SUB FOR 0309204

1шт.

5

TH102766

Snap Ring

SUB FOR 0236905

8шт.

6

H227909

Seal

SUB FOR 0997703 OR 0976005

1шт.

7

H227910

Seal

SUB FOR 0976006 OR H155308

1шт.

8

H155310

Back-Up Ring

SUB FOR 0667405

1шт.

9

H155311

Seal

SUB FOR 0481803

1шт.

10

A811140

O-Ring

1шт.

11

0937506

Back-Up Ring

SUB FOR 0962004

1шт.

12

19M8985

Screw

M20 X 80 SUB FOR 0166012

1шт.

13

0850602

Cushion

1шт.

14

0937507

Piston

1шт.

15

0373411

Sealing Ring

SUB FOR 4S00801

1шт.

16

0492208

Back-Up Ring

SUB FOR 4S00802

1шт.

17

0962008

O-Ring

SUB FOR 4S00803

1шт.

18

0373413

Ring

SUB FOR 4S00804

1шт.

19

0836111

Shim

2шт.

20

0836112

Nut

2шт.

21

H228111

Set Screw

SUB FOR 0352715

1шт.

22

R26552

Ball

SUB FOR 0104404

1шт.

24

TH102445

Seal

SUB FOR 4067901

1шт.

26

TH102411

Seal

SUB FOR 4074008

1шт.

27

0997705

Oil Line

1шт.

28

AT264348

O-Ring

SUB FOR Z984614 OR 984614

1шт.

29

19M8448

Screw

M12 X 35 SUB FOR M341236

1шт.

30

0880610

Band

1шт.

31

0373419

Band

1шт.

32

19M7550

Cap Screw

M10 X 35 SUB FOR J901035

1шт.

33

12M7066

Lock Washer

10 mm SUB FOR A590910

1шт.

34

0309219

Clamp

1шт.

35

19M8348

Cap Screw

M12 X 65 SUB FOR 0224115

2шт.

36

12M7067

Lock Washer

12 mm SUB FOR 0208516

1шт.

37

TH100074

Lubrication Fitting

SUB FOR J75481

1шт.

38

T116334

Lubrication Fitting

SUB FOR 0271312

1шт.

47

FYA00001401

Seal Kit

SUB FOR 4660570

1шт.
