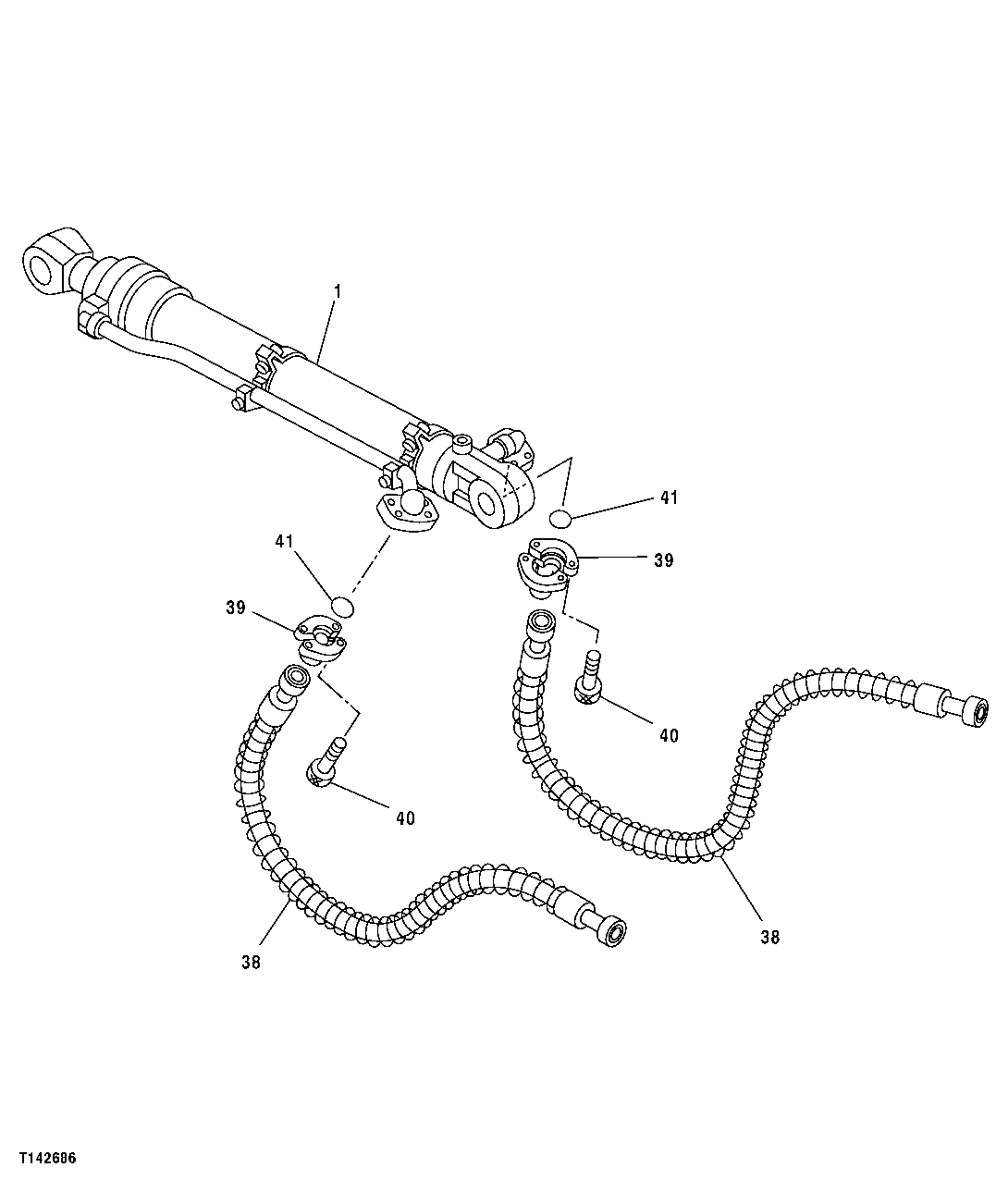

Запчасти John Deere 50CLC 284 - HYDRAULIC HOSES (BUCKET CYLINDER) 3360 HYDRAULIC SYSTEM

1

Cylinder

Use With Short Arm, Standard Arm, Or Semi-Long Arm (ORDER AT183700 (REMAN))

1шт.

9264721JEX

Hydraulic Cylinder Reman

( AT182461 NLA) (REMAN) Use With Long Arm

1шт.

38

AT172097

Hydraulic Hose

3.4 mm ,11.15 ft., Standard Arm Fabricate

2шт.

4326995

Hydraulic Hose

2.9 m. ,9.5 ft., Short Arm Fabricate

2шт.

AT202135

Hydraulic Hose

3.9 m, 12.8 ft., Semi - Long Arm

2шт.

4345675

Hydraulic Hose

4.9 m, 16.08 ft., Long Ar m (LH) (SUB FOR AT172092)

1шт.

4334631

Hydraulic Hose

4.9m, 16.08 ft., Long Arm (RH ) (SUB FOR AT172093) Fabricate

1шт.

39

4085560

Flange Fitting

(SUB FOR TH101960)

4шт.

40

19M8395

Screw

M12 X 40

8шт.

41

T78313

O-Ring

2шт.
