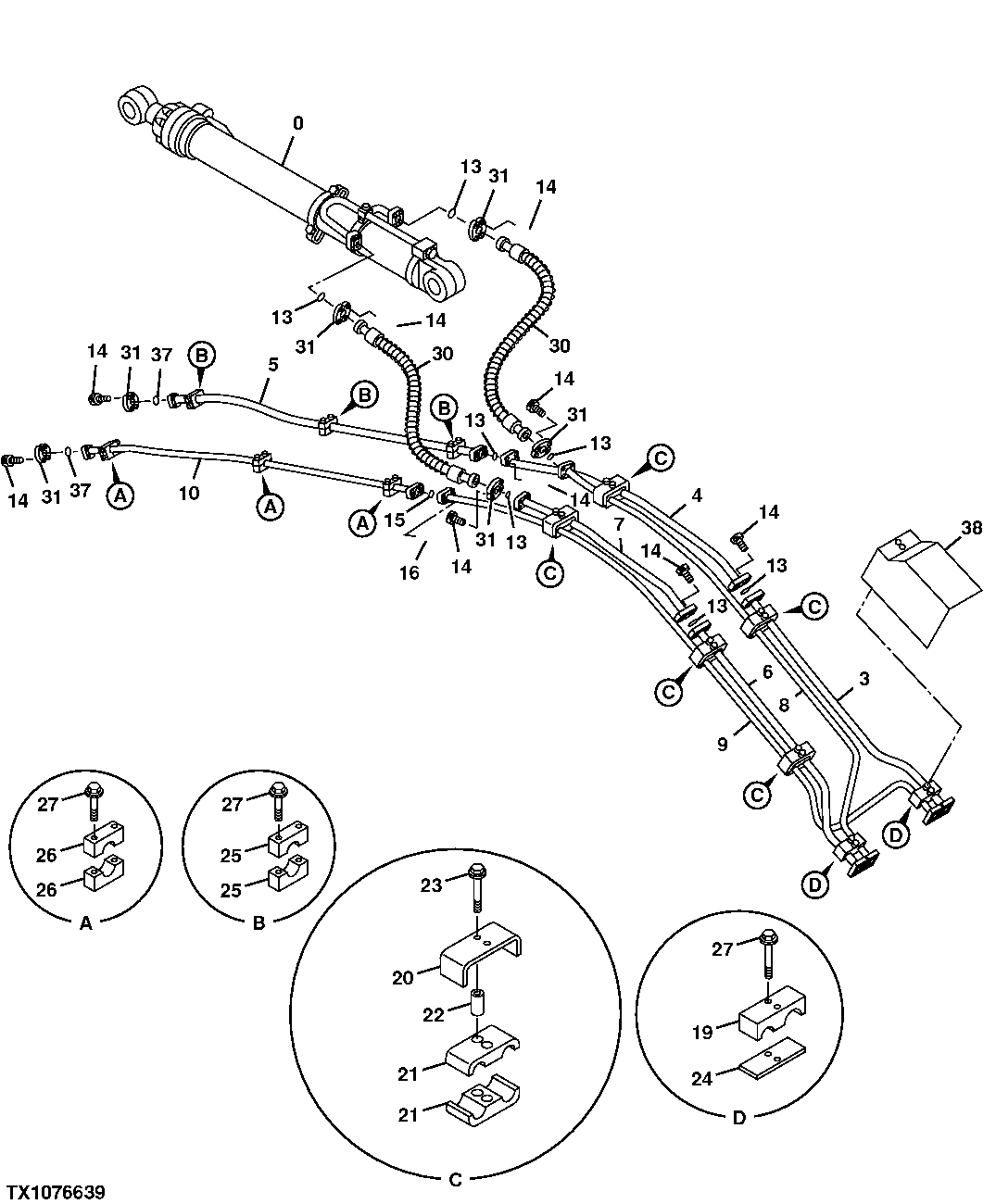

Запчасти John Deere 50CLC 281 - HYDRAULIC LINES, HOSES AND FITTINGS (BOOM) 3360 HYDRAULIC SYSTEM

0

4340512JEX

Hydraulic Cylinder Reman

Use With Standard Cab REMAN, SUB FOR TH4340512 OR 4310243

1шт.

4653044G

Hydraulic Cylinder

SUB FOR 4637753 OR PG200032G

1шт.

3

8055572

Oil Line

SUB FOR AT201896

1шт.

4

8055573

Oil Line

SUB FOR AT201897

1шт.

5

8055574J

Oil Line

SUB FOR AT201898 OR 8055574

1шт.

6

8055575

Oil Line

SUB FOR AT201899

1шт.

7

8055576

Oil Line

SUB FOR AT201900

1шт.

8

8055577

Oil Line

SUB FOR AT201901

1шт.

9

7026617

Oil Line

SUB FOR AT201864

1шт.

10

8055578J

Oil Line

SUB FOR AT201902 OR 8055578

1шт.

13

T72216

O-Ring

7шт.

14

19M8712

Screw

M14 X 50

36шт.

15

T78313

O-Ring

1шт.

16

19M8395

Screw

M12 X 40

4шт.

19

4249565

Clamp

SUB FOR AT202109

2шт.

20

4304481

Clamp

SUB FOR AT201755

5шт.

21

4304482

Clamp

SUB FOR AT201756

10шт.

22

28H2611

Spacer

0.546" X 0.840" X 2"

10шт.

23

12M7058

Lock Washer

12 mm SUB FOR 12M7067

26шт.

19M8122

Cap Screw

M12 X 85

26шт.

24

Plate

NOT AVAILABLE FOR SERVICE

1шт.

25

AT201796

Clamp

6шт.

26

4334363

Clamp

SUB FOR AT201795

6шт.

27

Cap Screw

NOT AVAILABLE FOR SERVICE

2шт.

30

AT168741

Hydraulic Hose

1-1/4" X 999 mm (39-1/4") X 1-1/4"

2шт.

31

AT131685

Flange Fitting

12шт.

37

T72216

O-Ring

2шт.

38

3070800

Cover

1шт.
