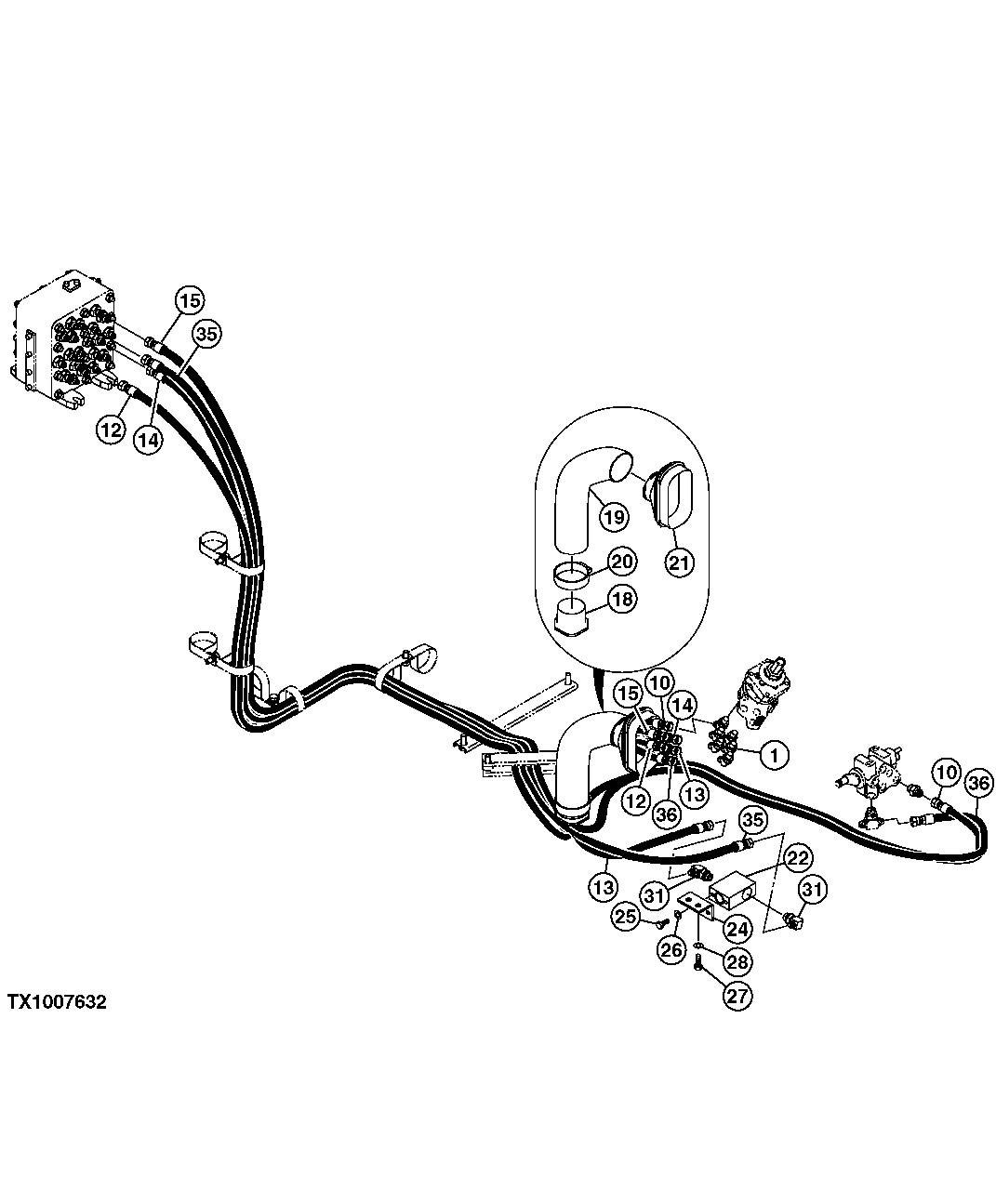

Запчасти John Deere 50CLC 271 - HYDRAULIC HOSES (FROM RIGHT PILOT CONTROLLER) 3360 HYDRAULIC SYSTEM

0

A852223

Elbow Fitting

INCLUDES M800650; SUB FOR THA852223

6шт.

M800650

Packing

6шт.

10

4450438

Hydraulic Hose

SUB FOR TH4450438

1шт.

12

4446850

Hydraulic Hose

SUB FOR TH4446850

1шт.

13

4450440

Hydraulic Hose

SUB FOR TH4450440

1шт.

14

4446841

Hydraulic Hose

SUB FOR TH4446841

1шт.

15

4671428

Hydraulic Hose

SUB FOR TH4446851, 4446851, 4484031, 4446852 OR 4484025, 4419172 OR 4462306

1шт.

18

3079728

Bushing

SUB FOR AT250589

1шт.

19

4351175

Hose

SUB FOR AT213957

1шт.

20

4351774

Clamp

SUB FOR AT213962

1шт.

21

2045998

Bushing

SUB FOR TH2045998

1шт.

22

4456004

Flow Control Hyd. Valve

SUB FOR TH4456004

1шт.

24

4449773

Bracket

SUB FOR TH4449773

1шт.

25

19M7881

Screw

M8 X 20

2шт.

26

Washer

12M7065 NLA

2шт.

27

19M7402

Cap Screw

M10 X 25

2шт.

28

12M7066

Lock Washer

10 mm

2шт.

31

A852333

Elbow Fitting

INCLUDES CH11570; SUB FOR TH101047; SUB FOR 4154671

2шт.

CH11570

O-Ring

2шт.

35

4484032

Hydraulic Hose

SUB FOR TH4459268 OR 4459268

1шт.

36

4460044

Hydraulic Hose

SUB FOR TH4460044

1шт.
