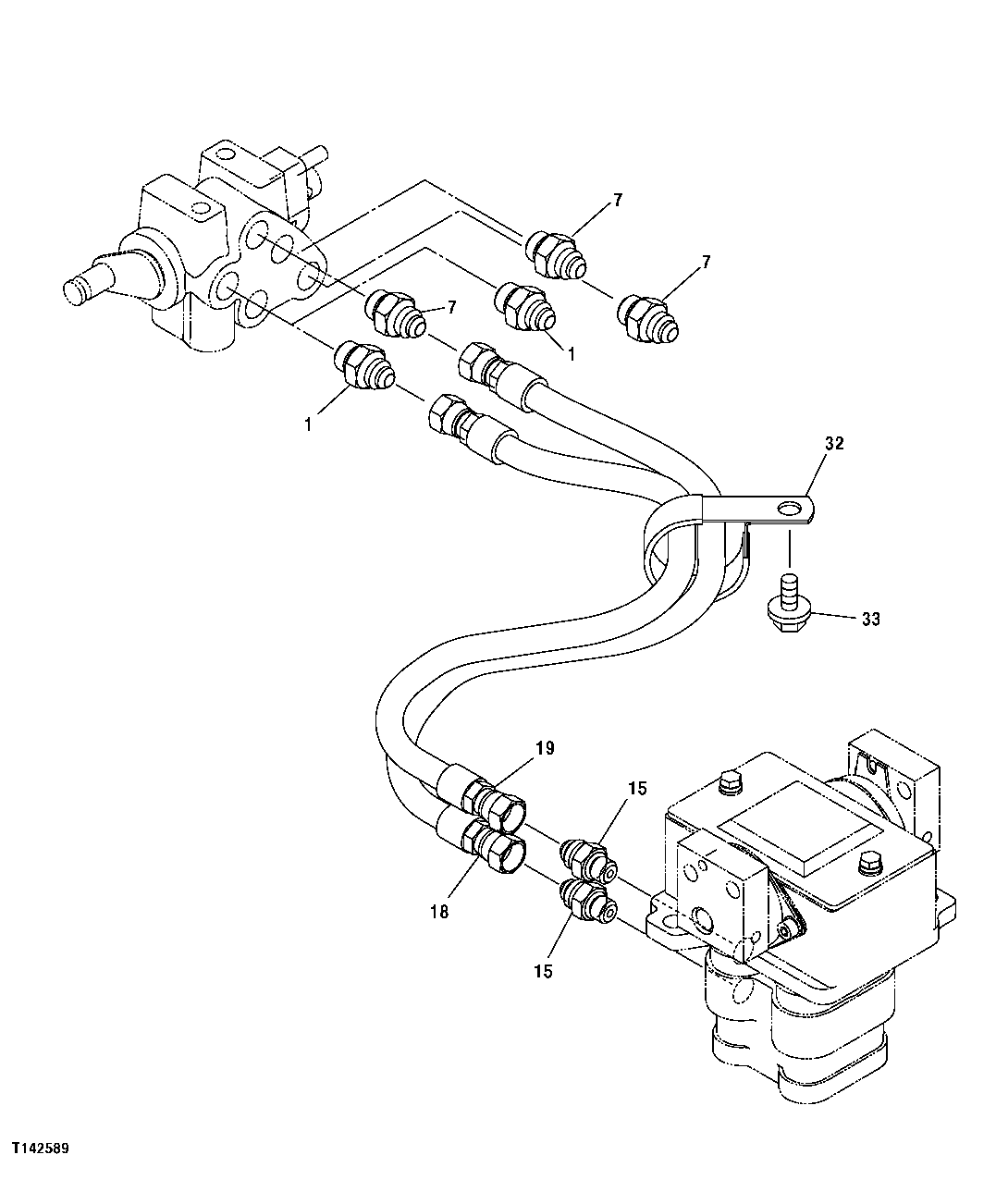

Запчасти John Deere 50CLC 270 - HYDRAULIC HOSES (FROM PILOT PROPEL VALVE TO SHUT-OFF VALVE) 3360 HYDRAULIC SYSTEM

1

4200466

Adapter Fitting

(INCLUDES CH11570 ) (SUB FOR TH108320)

2шт.

CH11570

O-Ring

2шт.

7

4261938

Fitting

(INCLUDES CH11570 ) (SUB FOR AT154285)

3шт.

CH11570

O-Ring

3шт.

15

A852123

Adapter Fitting

2шт.

M800650

Packing

2шт.

18

4437844

Hydraulic Hose

(SUB FOR TH4450427 OR 4450427)

1шт.

19

AT48428

Hydraulic Hose

(SUB FOR 4450428)

1шт.

32

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

33

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.
