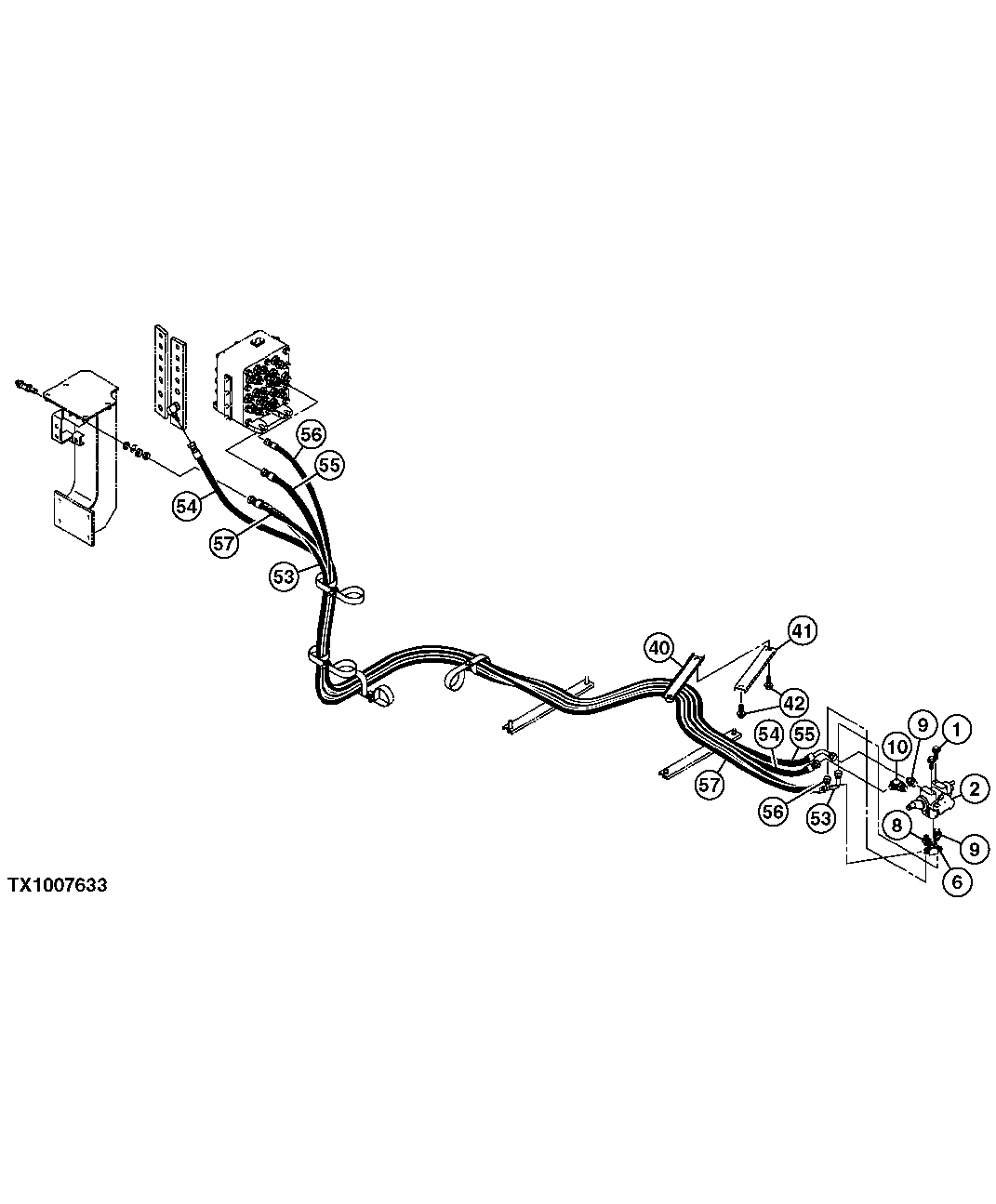

Запчасти John Deere 50CLC 269 - HYDRAULIC HOSES (FROM PILOT SIGNAL MANIFOLD) 3360 HYDRAULIC SYSTEM

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

2

4407253

Flow Control Hyd. Valve

(SUB FOR TH4407253)

1шт.

6

A852533

Tee Fitting

(SUB FOR THA852533)

1шт.

CH11570

O-Ring

1шт.

8

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

M800650

Packing

1шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

CH11570

O-Ring

2шт.

10

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

CH11570

O-Ring

1шт.

40

9754739

Clamp

(SUB FOR TH9754739)

1шт.

41

4436124

Clamp

(SUB FOR TH4436124)

1шт.

42

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

53

4484020

Hydraulic Hose

(SUB FOR TH4459264 OR 4459264)

1шт.

54

4671428

Hydraulic Hose

(SUB FOR TH4459265, 4459265, 4484025, 4419172 OR 4462306)

1шт.

55

4459266

Hydraulic Hose

(SUB FOR TH4459266)

1шт.

56

4484023

Hydraulic Hose

(SUB FOR TH4459267 OR 4459267)

1шт.

57

Hydraulic Hose

( 4484024 NLA) (SUB FOR TH4460 043 OR 4460043 ) (SUB 4469032)

1шт.

4469032

Hydraulic Hose

1шт.
