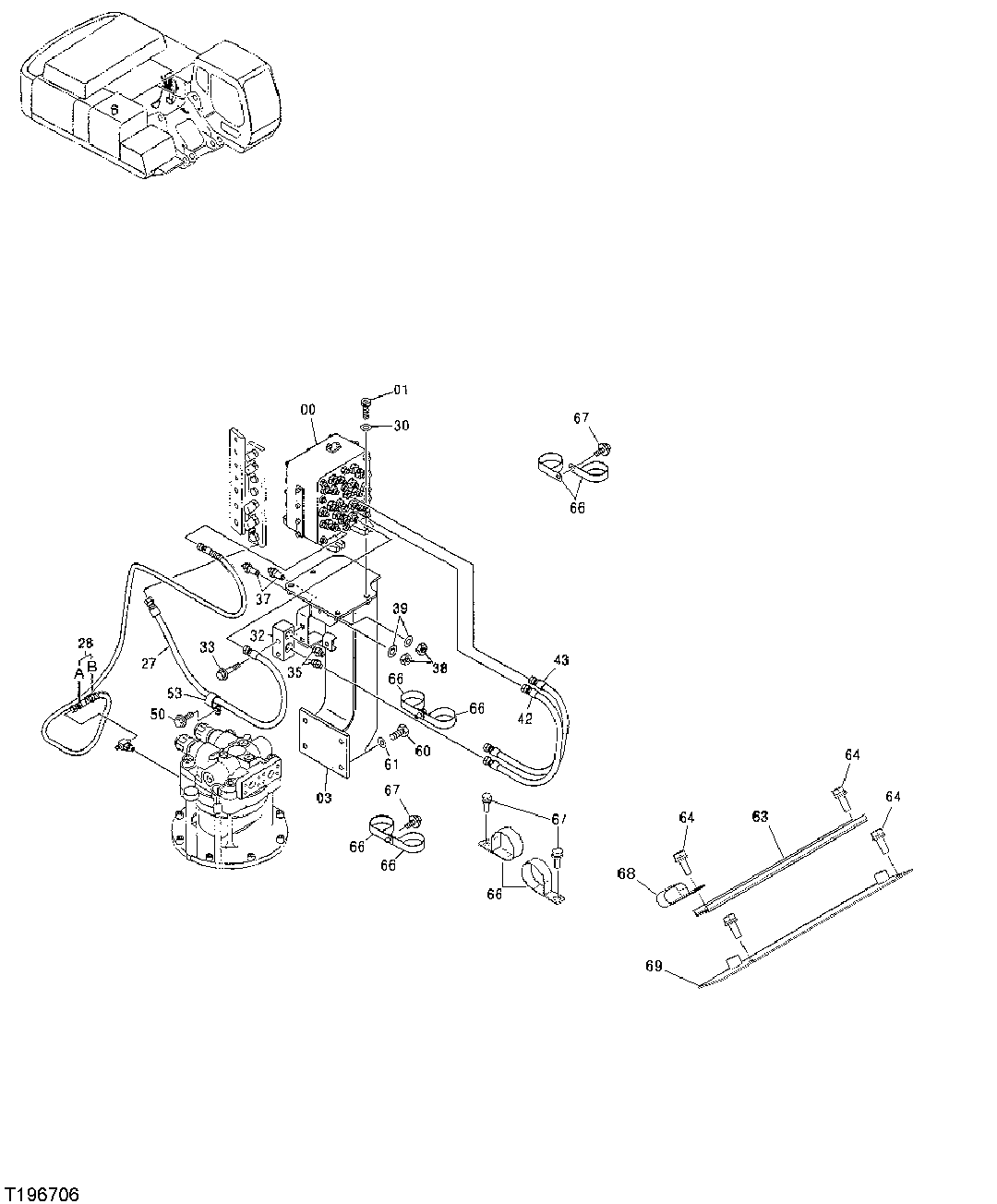

Запчасти John Deere 50CLC 267 - HYDRAULIC HOSES (FROM PILOT SIGNAL MANIFOLD) 3360 HYDRAULIC SYSTEM

0

4470661

Flow Control Hyd. Valve

SUB FOR 4443488, ALSO ORDER 4461599, A852523 AND A852323

1шт.

4461599

Hose

1шт.

A852523

Tee Fitting

1шт.

A852323

Elbow Fitting

1шт.

1

L159272

Screw

SUB FOR AT213615 OR J781040

4шт.

3

7042908

Bracket

SUB FOR 7040117

1шт.

27

4446846

Hydraulic Hose

SUB FOR TH4446846

1шт.

28

Hydraulic Hose

( TH9203456 NLA)

1шт.

28A

4463867

Hydraulic Hose

1шт.

4461334

Hose

(USE WITH 4470661)MANIFOLDS

1шт.

28B

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

4шт.

30

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

32

3090109

Manifold

SUB FOR TH3090109

1шт.

33

Cap Screw

M10 X 60 ( 19M5536 NLA)

2шт.

12M7066

Lock Washer

10 mm

2шт.

35

A852123

Adapter Fitting

INCLUDES M800650

2шт.

M800650

Packing

2шт.

37

R27238

Fitting

2шт.

38

14H888

Nut

9/16"

2шт.

39

12H317

Lock Washer

9/16"

2шт.

42

4678895

Hose

SUB FOR 4450908

1шт.

43

4450909

Hydraulic Hose

SUB FOR TH4450909

1шт.

50

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

53

XCL-19

Hose Clamp

SUB FOR 4192035

1шт.

XCL-29

Hose Clamp

SUB FOR 4193848

1шт.

60

19M7403

Cap Screw

M12 X 35

4шт.

61

24M7345

Washer

13.500 X 24 X 2.500 mm

4шт.

63

4425177

Channel

SUB FOR TH4425177

1шт.

64

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

66

R134002

Clamp

SUB FOR TH111255, SUB FOR 4193816

6шт.

67

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

68

4190266

Clip

1шт.

69

9760161

Bracket

1шт.
