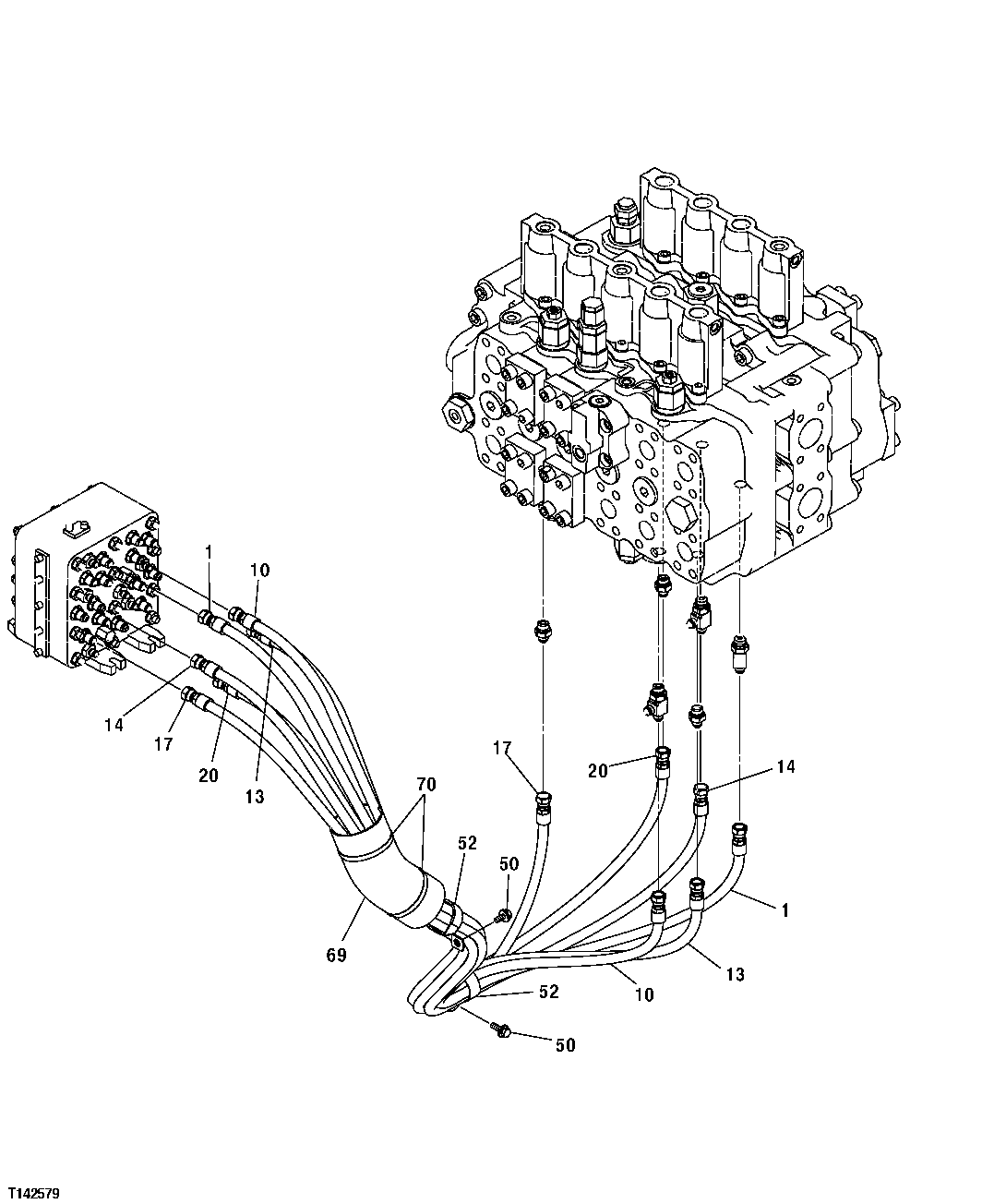

Запчасти John Deere 50CLC 266 - HYDRAULIC HOSES (CONTROL VALVE TO PILOT SIGNAL MANIFOLD) 3360 HYDRAULIC SYSTEM

1

4446832

Hydraulic Hose

(SUB FOR TH4446832)

1шт.

10

4446835

Hydraulic Hose

(SUB FOR TH4446835)

1шт.

13

4446840

Hydraulic Hose

(SUB FOR TH4446840)

1шт.

14

4450058

Hose

(SUB FOR TH4446838, 4446 838, 4456546 OR 4398302)

1шт.

17

4437663

Hydraulic Hose

(SUB FOR TH4437663)

1шт.

20

4450058

Hose

(SUB FOR TH4446839, 4446 839, 4456546 OR 4398302)

1шт.

50

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

52

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

2шт.

69

4219918

Isolator

(SUB FOR TH111416)

1шт.

70

H77698

Tie Band

2шт.
