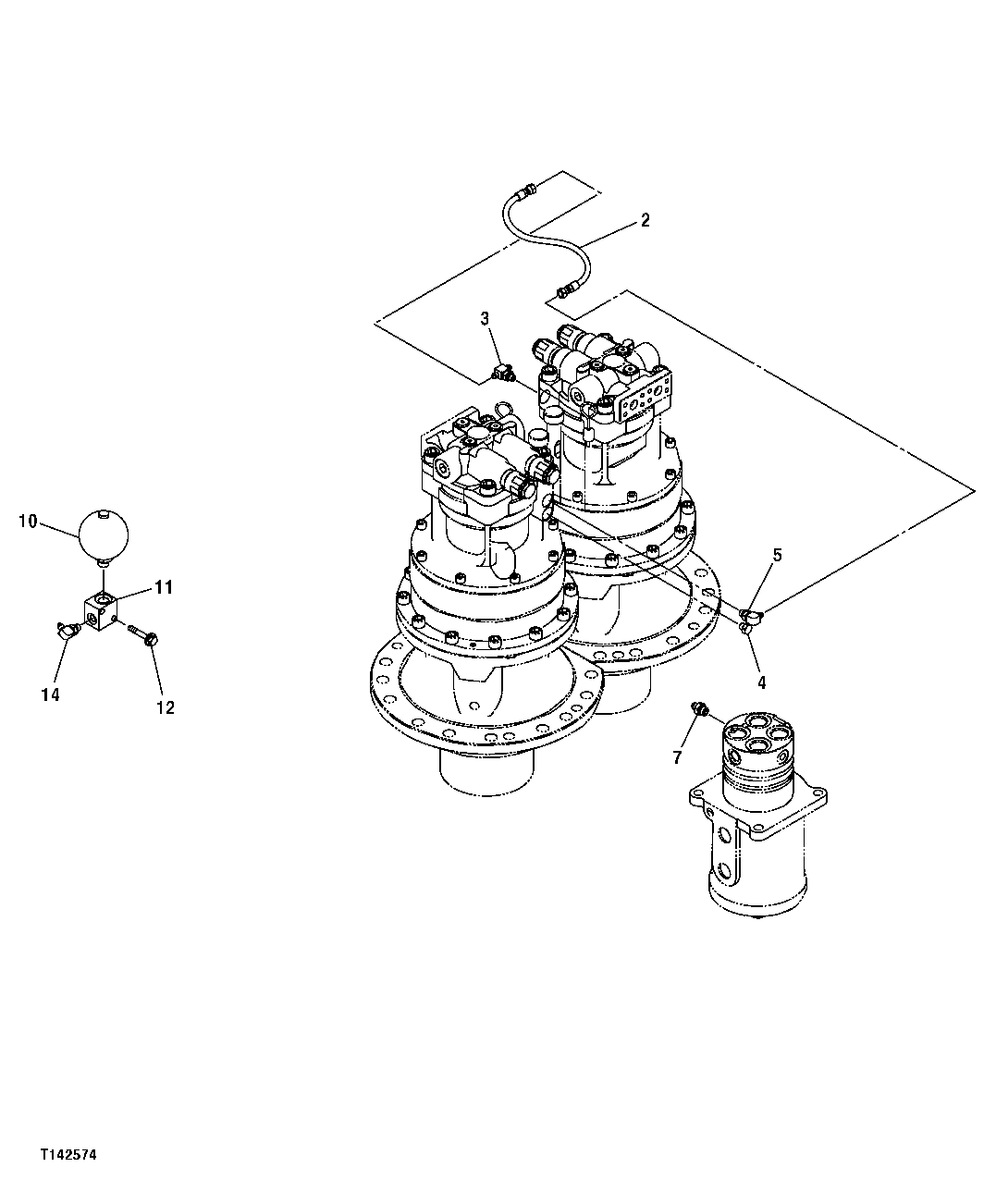

Запчасти John Deere 50CLC 262 - HYDRAULIC HOSES (SWING MOTOR-PILOT SYSTEM) 3360 HYDRAULIC SYSTEM

2

4437442

Hydraulic Hose

1шт.

4461599

Hose

1шт.

3

A852522

Tee Fitting

INCLUDES M800650

1шт.

A852523

Tee Fitting

INCLUDES M800650

1шт.

M800650

Packing

1шт.

4

A885002

Plug

INCLUDES M800650, SUB FOR THA885002

1шт.

M800650

Packing

1шт.

5

4154670

Elbow Fitting

INCLUDES M800650, SUB FOR A 852322, P67984 OR THA852322

1шт.

A852323

Elbow Fitting

INCLUDES M800650

1шт.

M800650

Packing

1шт.

7

4200466

Adapter Fitting

INCLUDES CH11570, SUB FOR TH108320

1шт.

CH11570

O-Ring

1шт.

10

FYA00025723

Hydraulic Accumulator

INCLUDES CH14634, SUB FOR AT162984 OR 4195978

1шт.

CH14634

O-Ring

1шт.

11

3036998

Manifold

SUB FOR AT126122

1шт.

12

Cap Screw

M10 X 60, 19M5536 NLA

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

4154670

Elbow Fitting

INCLUDES M800650, SUB FOR TH100951

1шт.

M800650

Packing

1шт.
