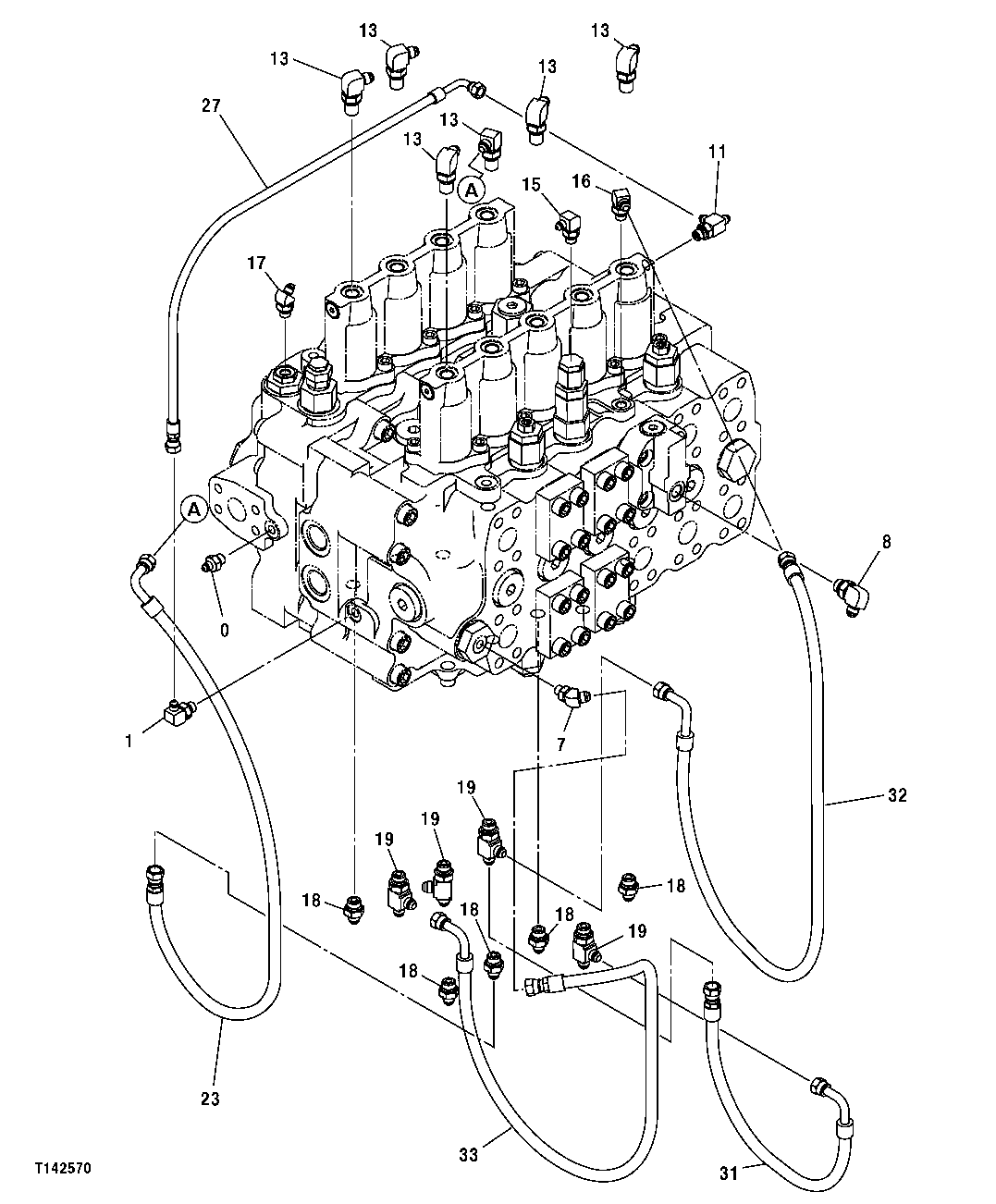

Запчасти John Deere 50CLC 260 - HYDRAULIC HOSES (CONTROL VALVE-PILOT SYSTEM) 3360 HYDRAULIC SYSTEM

0

4200465

Adapter Fitting

(INCLUDES M800650 ) (SUB FOR TH108328)

1шт.

M800650

Packing

1шт.

1

4154670

Elbow Fitting

(INCLUDES M800650 ) (SUB FOR TH100951)

1шт.

M800650

Packing

1шт.

7

A852223

Elbow Fitting

(INCLUDES M800650 ) (SUB FOR THA852223)

1шт.

M800650

Packing

1шт.

8

A852333

Elbow Fitting

(INCLUDES CH11570 ) (SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

CH11570

O-Ring

1шт.

11

A852422

Tee Fitting

(INCLUDES M800650 ) (SUB FOR THA852422)

1шт.

M800650

Packing

1шт.

13

4208913

Adapter Fitting

(SUB FOR AT126458)

6шт.

CH11570

O-Ring

6шт.

15

4154670

Elbow Fitting

(INCLUDES M800650 ) (SUB FOR TH100951)

1шт.

M800650

Packing

1шт.

16

A852323

Elbow Fitting

SUB FOR THA852323; INCLUDES M800650

1шт.

M800650

Packing

1шт.

17

THA852222

Elbow Fitting

(INCLUDES M800650)

1шт.

M800650

Packing

1шт.

18

4200466

Adapter Fitting

(INCLUDES CH11570 ) (SUB FOR TH108320)

5шт.

CH11570

O-Ring

5шт.

19

A852433

Tee Fitting

(INCLUDES CH11570 ) (SUB FOR THA852433)

4шт.

CH11570

O-Ring

4шт.

23

4445270

Hydraulic Hose

(SUB FOR TH4445270)

1шт.

27

4427782

Hydraulic Hose

(SUB FOR TH4437412 OR 4437412)

1шт.

31

4437436

Hydraulic Hose

(SUB FOR TH4437436)

1шт.

32

4437438

Hydraulic Hose

(SUB FOR TH4437438)

1шт.

33

4437440

Hydraulic Hose

(SUB FOR TH4437440)

1шт.
