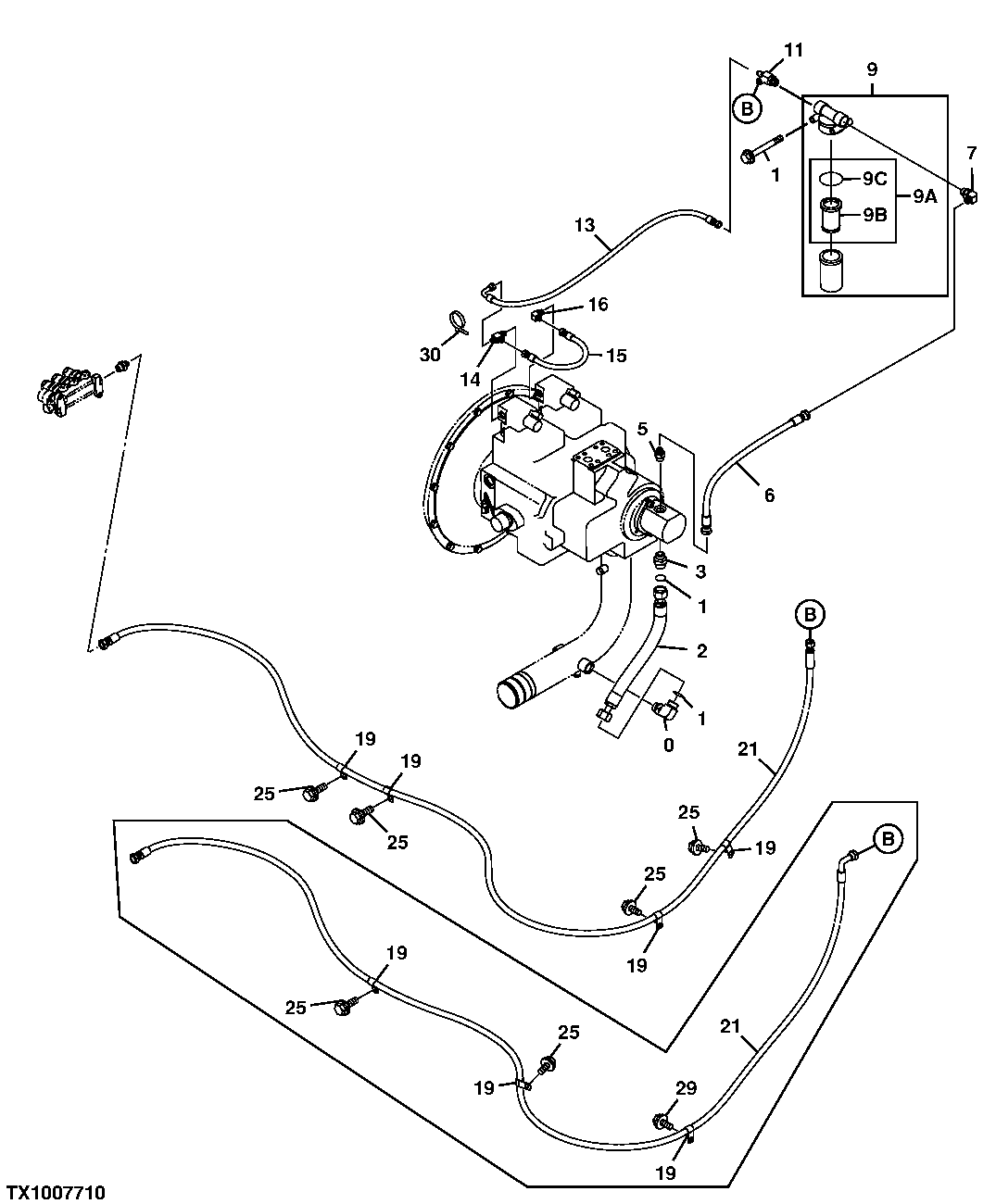

Запчасти John Deere 50CLC 259 - HYDRAULIC HOSES (FROM PILOT PUMP) 3360 HYDRAULIC SYSTEM

0

A853366

Elbow Fitting

INCLUDES TH100055; SUB FOR THA853366

1шт.

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

1

T77858

O-Ring

2шт.

2

4203134

Hydraulic Hose

30.1752" X 500 mm (19-3/4") X 30.1752" SUB FOR TH4203134

1шт.

3

A853166

Adapter Fitting

SUB FOR THA853166; INCLUDES TH100055

1шт.

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

5

A852144

Adapter Fitting

INCLUDES U46489; SUB FOR THA852144

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

6

4436884

Hydraulic Hose

SUB FOR TH4436884

1шт.

7

4154672

Elbow Fitting

INCLUDES U46489; SUB FOR TH101008

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

9

4631976

Oil Filter

SUB FOR TH108402 OR 4191300

1шт.

9A

AT186554

Filter Element

1шт.

9B

Filter Element

NLA

1шт.

9C

AT264334

O-Ring

SUB FOR TH100101

1шт.

10

12M7066

Lock Washer

10 mm

2шт.

19M8093

Cap Screw

M10 X 100

2шт.

11

4296066

Tee Fitting

INCLUDES U46489; SUB FOR TH4296066

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

13

4452732

Hydraulic Hose

SUB FOR TH4452732

1шт.

14

A852423

Tee Fitting

INCLUDES M800650; SUB FOR THA852423

1шт.

M800650

Packing

1шт.

15

4445276

Hydraulic Hose

SUB FOR TH4445276

1шт.

16

A852323

Pipe Elbow

INCLUDES M800650, SUB FOR THA852323

1шт.

M800650

Packing

1шт.

19

T28949

Clamp

SUB FOR TH108460 OR 4190273

3шт.

T28949

Clamp

4шт.

21

4611078

Hose

SUB FOR TH4459251 OR 4459251

1шт.

25

Screw With Washer

( J271025 NLA)

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

Screw With Washer

( J271020 NLA)

4шт.

19M7938

Cap Screw

M10 X 20 SUB FOR J901020

4шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR J222010

4шт.

29

19M8324

Cap Screw

M10 X 16

1шт.

12M7066

Lock Washer

10 mm

1шт.

30

H77698

Tie Band

1шт.
