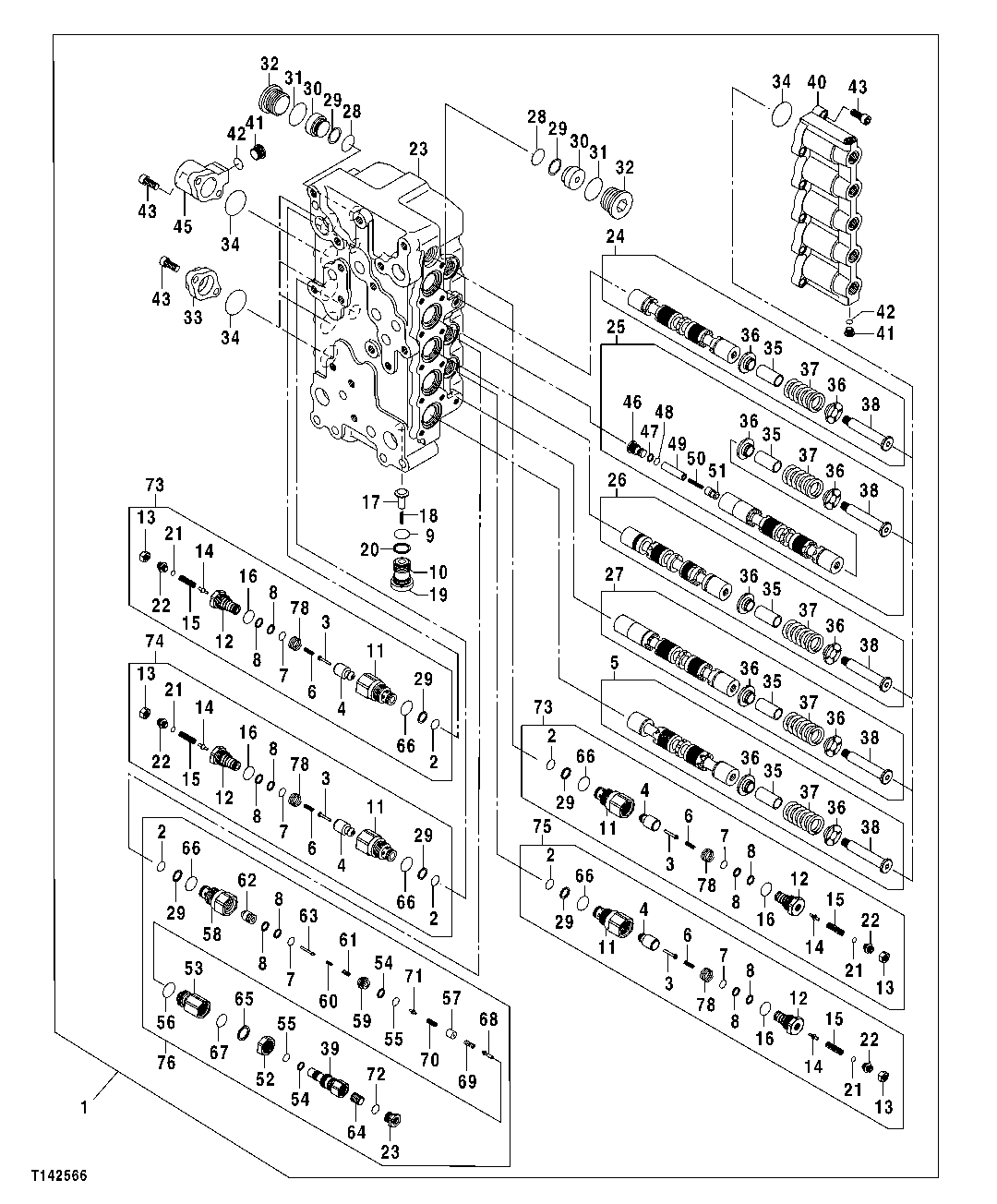

Запчасти John Deere 50CLC 257 - MAIN HYDRAULIC CONTROL VALVE (5-SPOOL SIDE) (CONTINUED) 3360 HYDRAULIC SYSTEM

52

0810711

Nut

SUB FOR TH0810711

1шт.

53

0810712

Sleeve

SUB FOR TH0810712

1шт.

54

0810713

Ring

SUB FOR TH0810713

2шт.

55

0810714

O-Ring

SUB FOR TH0810714

2шт.

56

0810715

O-Ring

SUB FOR TH0810715

1шт.

57

Retainer

0810716 NLA, SUB FOR TH0810716

1шт.

58

0810717

Sleeve

SUB FOR TH0810717

1шт.

59

0810718

Valve Seat

SUB FOR TH0810718

1шт.

60

0810719

Spring

SUB FOR TH0810719

1шт.

61

0810720

Spring

SUB FOR TH0810720

1шт.

62

0810721

Poppet

SUB FOR TH0810721

1шт.

63

0810722

Piston

SUB FOR TH0810722

1шт.

64

0810723

Piston

SUB FOR TH0810723

1шт.

65

0810724

Ring

SUB FOR TH0810724

1шт.

66

4366528

O-Ring

SUB FOR 4153108, SUB FOR 0818007, THIS APPLICATION

5шт.

67

0810725

O-Ring

SUB FOR TH0810725

1шт.

68

0810726

Poppet

SUB FOR TH0810726

1шт.

69

0810727

Spring

SUB FOR TH0810727

1шт.

70

0810728

Spring

SUB FOR TH0810728

1шт.

71

0810729

Poppet

SUB FOR TH0810729

1шт.

72

4366521

O-Ring

SUB FOR TH109041, SUB FOR 4153 098, OR 0818008THIS APPLICATION

1шт.

73

4469298

Pressure Relief Valve

SUB FOR TH4469298

2шт.

74

4469301

Pressure Relief Valve

SUB FOR TH4469301

1шт.

75

4469302

Pressure Relief Valve

SUB FOR TH4469302

1шт.

76

4659820

Pressure Relief Valve

SUB FOR TH4469303 OR 4469303

1шт.

78

0809724

Spring

SUB FOR TH0809724

4шт.
