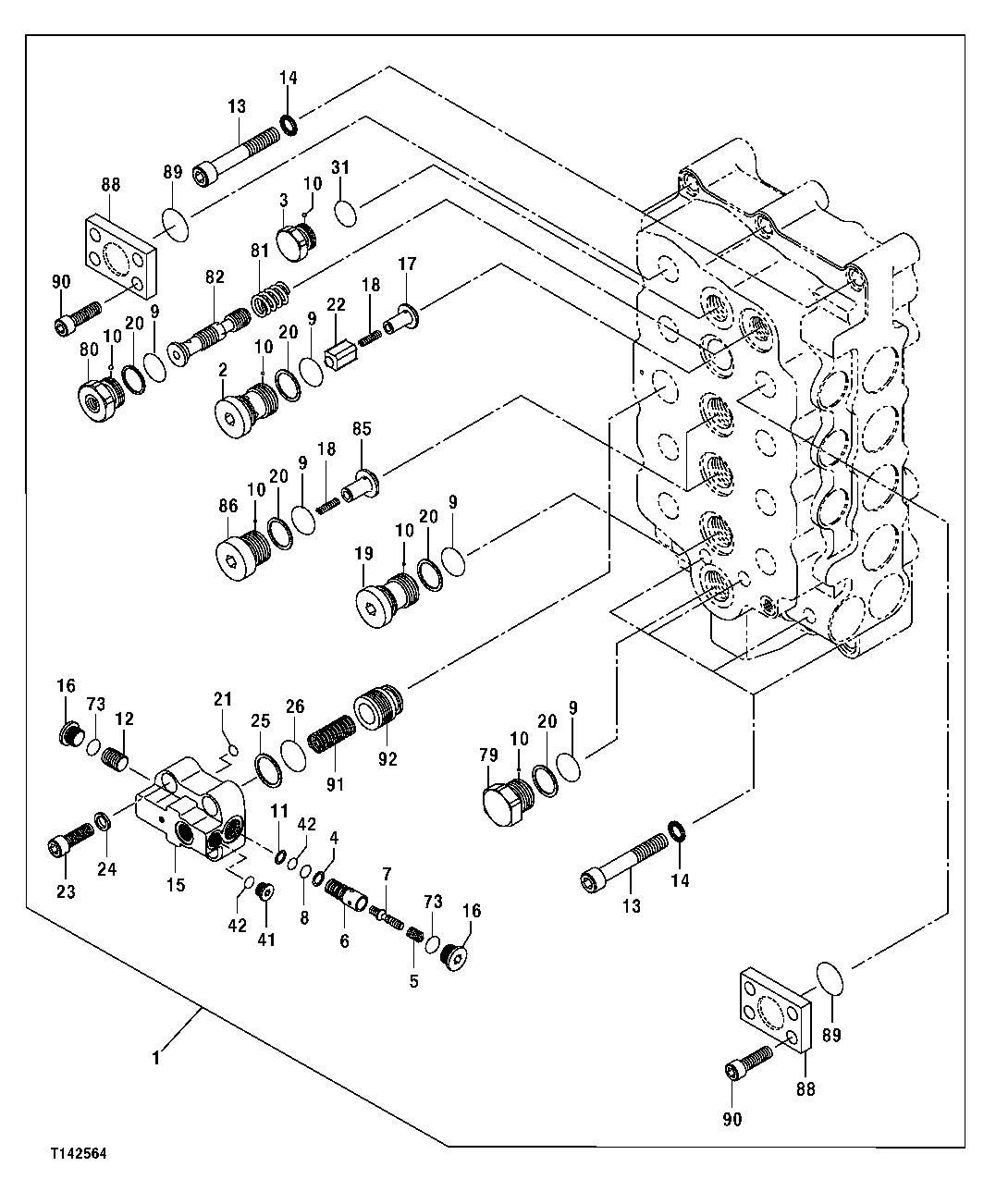

Запчасти John Deere 50CLC 254 - MAIN HYDRAULIC CONTROL VALVE (4-SPOOL SIDE) 3360 HYDRAULIC SYSTEM

1

4434686

Hyd Actuated Control Valve

(SUB FOR TH4434686 OR 4434686EX)

1шт.

2

0622850

Cap

(SUB FOR AT202034)

1шт.

3

0818102

Cap

(SUB FOR TH0818102)

1шт.

4

4040813

Back-Up Ring

(SUB FOR TH110449)

1шт.

5

0622863

Spring

(SUB FOR AT202047)

1шт.

6

0622866

Sleeve

(SUB FOR AT202050)

1шт.

7

0622864

Poppet

(SUB FOR AT202048)

1шт.

8

4140470

O-Ring

(SUB FOR TH109089)

1шт.

9

4088425

O-Ring

(SUB FOR AT202080)

6шт.

10

0189803

Ball

(SUB FOR AT203704)

7шт.

11

4092265

Back-Up Ring

(SUB FOR TH102598)

1шт.

12

0622867

Piston

(SUB FOR AT202051)

1шт.

13

19M8564

Screw

M16 X 110

7шт.

14

0189908

Washer

(SUB FOR AT217052)

7шт.

15

0809802

Cover

(SUB FOR TH0809802)

1шт.

16

0622822

Cap

(SUB FOR AT202006)

2шт.

17

0622829

Check Valve

(SUB FOR AT202013)

1шт.

18

0622827

Spring

(SUB FOR AT202011)

3шт.

19

0622825

Cap

(SUB FOR AT202009)

1шт.

20

0223104

Back-Up Ring

(SUB FOR AT217055)

6шт.

21

CH17167

O-Ring

1шт.

22

0622848

Check Valve

(SUB FOR AT202032)

1шт.

23

M341440

Screw

(SUB FOR AT201961)

4шт.

24

0622865

Washer

(SUB FOR AT202049)

4шт.

25

4138942

Back-Up Ring

(SUB FOR AT217083)

1шт.

26

AT264324

O-Ring

(SUB FOR TH100044)

1шт.

31

0624703

O-Ring

(SUB FOR TH0624703)

1шт.

41

0622810

Cap

(SUB FOR AT201994)

1шт.

42

M800650

Packing

2шт.

73

4506418

O-Ring

(SUB FOR U46489)

2шт.

79

0622870

Cap

(SUB FOR AT202054)

1шт.

80

0622846

Cap

(SUB FOR AT202030)

1шт.

81

0622845

Spring

(SUB FOR AT202029)

1шт.

82

0818101

Spool Valve

(SUB FOR TH0818101)

1шт.

85

0705401

Check Valve

(SUB FOR AT217070)

2шт.

86

0703701

Fitting Plug

(SUB FOR AT217064)

2шт.

88

0622858

Flange

(SUB FOR AT202042)

2шт.

89

0197011

O-Ring

(SUB FOR AT217054)

2шт.

90

19M8734

Screw

M14 X 45

8шт.

91

0622856

Spring

(SUB FOR AT202040)

1шт.

92

0622855

Poppet

(SUB FOR AT202039)

1шт.
