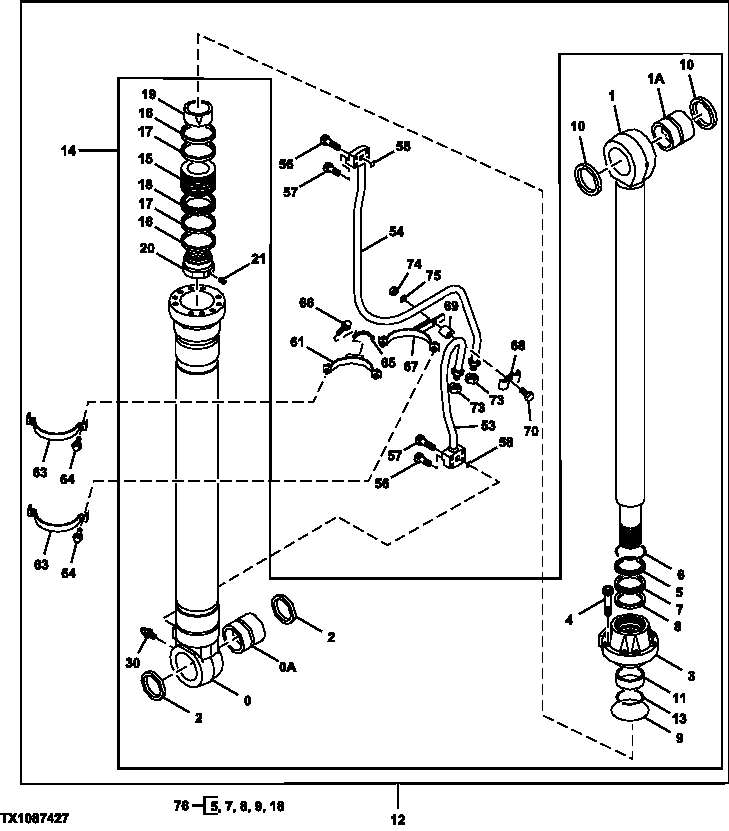

Запчасти John Deere 50CLC 249 - Left Boom Cylinder Components ( - 091286) 3360 HYDRAULIC SYSTEM

0

4646018

Hydraulic Cylinder Barrel

SUB FOR AT192597, 7035471 OR 7038394

1шт.

Cylinder Reman

PG201353 NLA, ORDER 4646018, REMAN

1шт.

0A

3083938

Bushing

SUB FOR TH3083938

1шт.

1

4645921

Hydraulic Cylinder Rod

SUB FOR AT192599 AND 7035476

1шт.

Cylinder Reman

PG201355 NLA, ORDER 4645921, REMAN

1шт.

1A

3083925

Bushing

SUB FOR AT192320

1шт.

2

AT201578

Ring

SUB FOR AT192602 OR 4411612

2шт.

3

1025101

Hydr. Cylinder Rod Guide

SUB FOR AT219589

1шт.

4

M342700

Screw

SUB FOR TH111068

8шт.

5

AT264305

Seal

SUB FOR AT250009, 4370927

1шт.

6

4370058

Snap Ring

SUB FOR AT250001

1шт.

7

AT264300

Seal

SUB FOR 4411659; SUB FOR AT192601

1шт.

8

4411656

Ring

SUB FOR AT264299; SUB FOR AT192600

1шт.

9

AT264309

O-Ring

For Heat Problems See DTAC Sol ution SUB FOR AT250098, 4393350

1шт.

4641099

O-Ring

Heat Resistant

1шт.

10

4411613

Seal

SUB FOR AT192608

2шт.

11

AT264304

Bushing

SUB FOR AT250007, 4370337

1шт.

12

Cylinder

NLA

1шт.

13

4372816

Snap Ring

SUB FOR AT250011

1шт.

14

9187754JEX

Hydraulic Cylinder Reman

REMAN SUB FOR TH9187754

1шт.

15

3080654

Piston

SUB FOR AT219642

1шт.

16

AT264302

Ring

SUB FOR AT250005, 4370063

2шт.

17

AT264303

Wear Ring

SUB FOR AT250006, 4370064

2шт.

18

AT264301

Seal

SUB FOR AT250004, 4370062

1шт.

19

2044681

Ring

SUB FOR AT192324

1шт.

20

3062096

Nut

SUB FOR AT200985

1шт.

21

4201806

Set Screw

SUB FOR TH110066

1шт.

30

JD7769

Lubrication Fitting

1шт.

53

8074374

Line

1шт.

54

8074373

Line

1шт.

56

19M8341

Screw

M12 X 45

4шт.

57

19M8444

Screw

M12 X 60

4шт.

58

AT264324

O-Ring

SUB FOR TH100044

2шт.

61

8079073

Clamp

SUB FOR AT250199, 8068103

1шт.

63

3088474

Clamp

SUB FOR AT219641, 3080222

2шт.

64

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

65

4174241

Clamp

SUB FOR TH110059

1шт.

66

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

67

8080074

Clamp

SUB FOR AT192605, 8074370

1шт.

68

4229234

Clamp

SUB FOR TH111990

1шт.

69

4410980

Spacer

SUB FOR AT192325

1шт.

70

19M8348

Cap Screw

M12 X 65

1шт.

73

4260204

Nut

SUB FOR AT219663

2шт.

74

14M7275

Nut

M12

1шт.

75

12H301

Lock Washer

1/2"

1шт.

76

9180582

Seal Kit

For Heat Problems See DTAC Solution SUB F OR AT264441 OR AT192606; INCLUDES AT280442

1шт.

9257552

Seal Kit

Heat Resistant

1шт.
