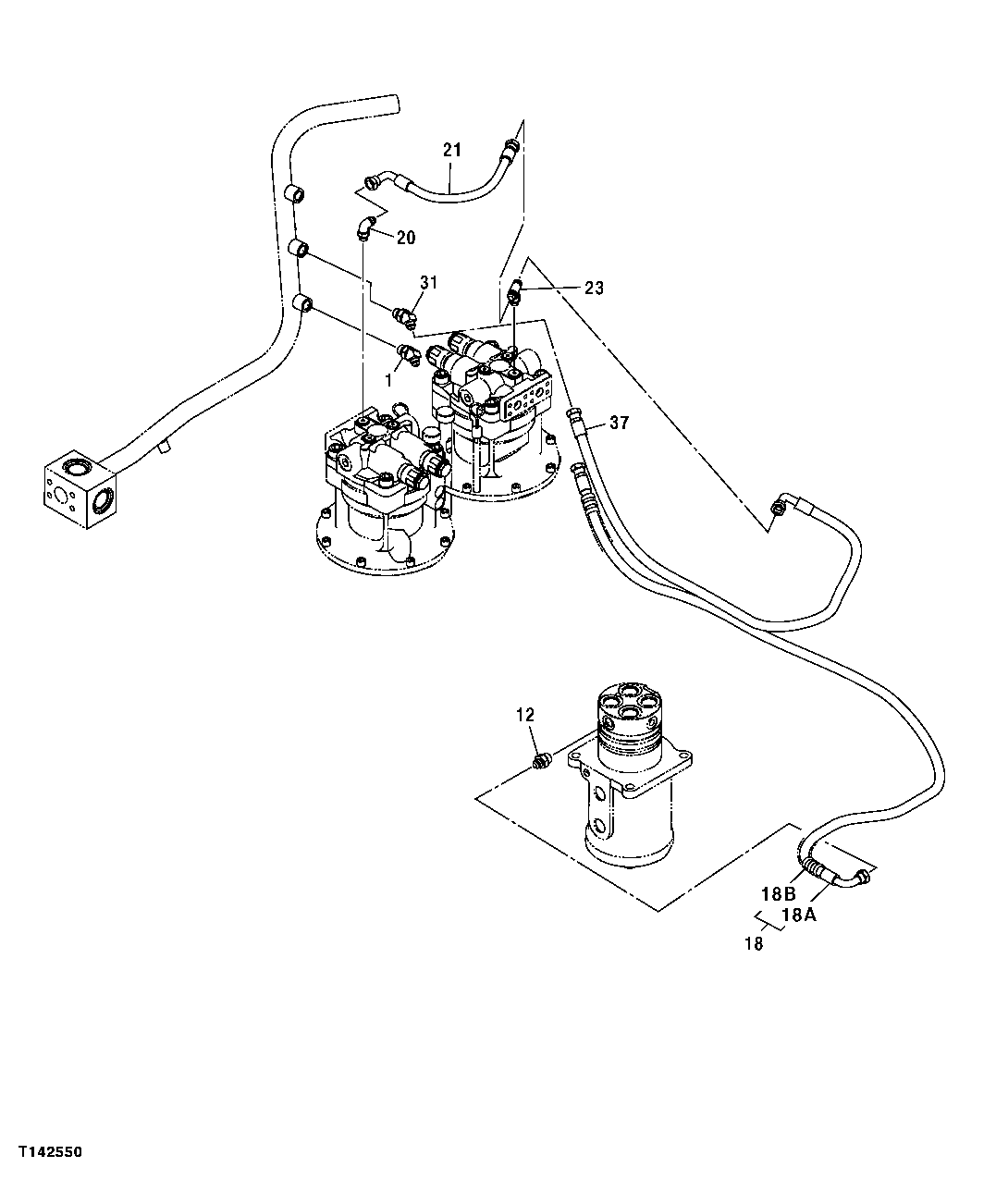

Запчасти John Deere 50CLC 242 - SWING MOTOR AND ROTARY MANIFOLD RETURN HOSES 3360 HYDRAULIC SYSTEM

1

A852244

Elbow Fitting

SUB FOR THA852244

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

12

A852144

Adapter Fitting

SUB FOR THA852144

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

18

Hydraulic Hose

( TH9206759 NLA)

1шт.

18A

4313170

Hydraulic Hose

SUB FOR TH4313170

1шт.

18B

4327315

Hose Guard

4327293 NLA SUB FOR AT213831

6шт.

20

A852334

Elbow Fitting

SUB FOR THA852334

1шт.

CH11570

O-Ring

1шт.

21

4313149

Hydraulic Hose

SUB FOR TH4313149

1шт.

23

A852534

Tee Fitting

SUB FOR THA852534

1шт.

CH11570

O-Ring

1шт.

31

A852244

Elbow Fitting

SUB FOR THA852244

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

37

9210754

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

4шт.
