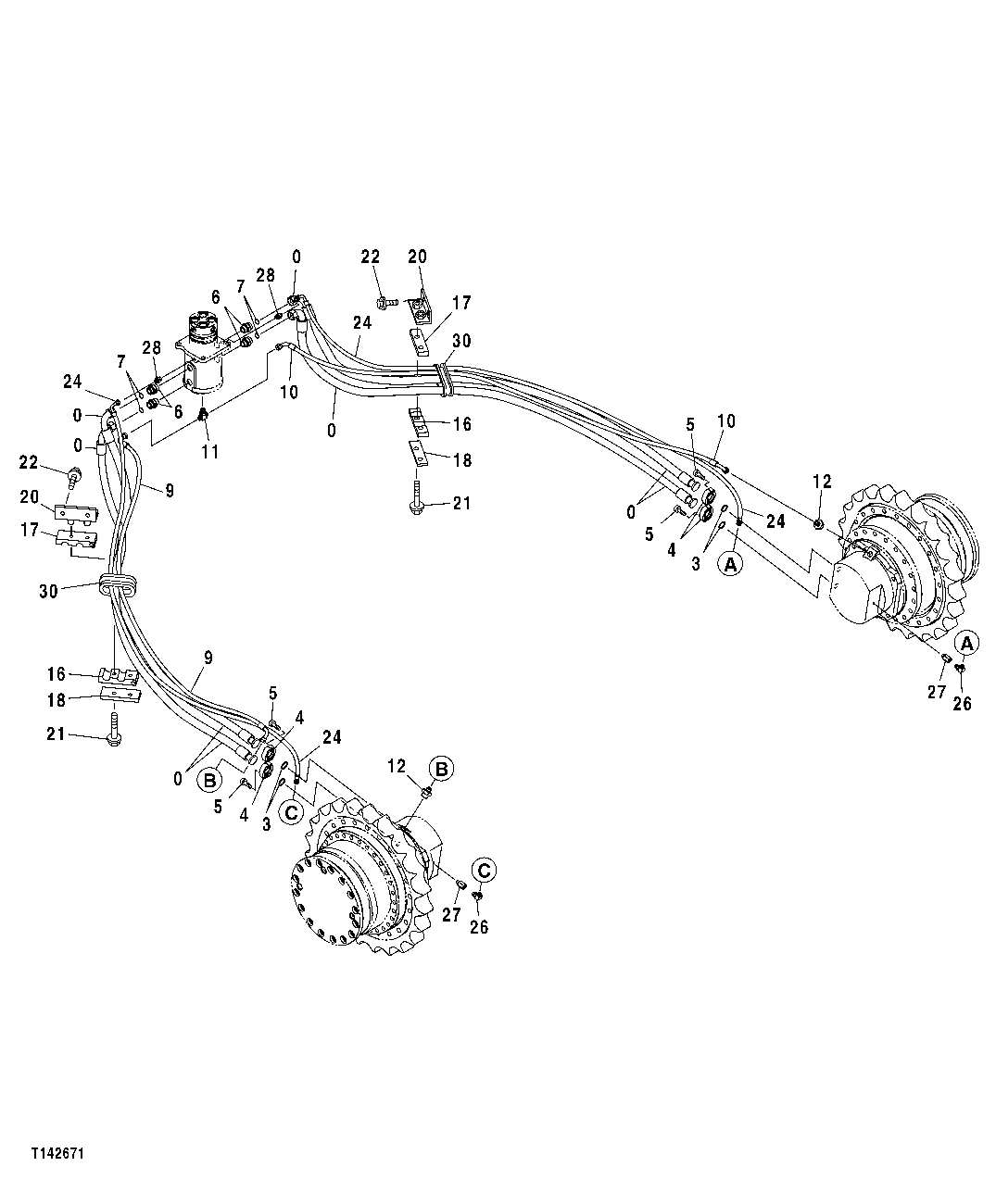

Запчасти John Deere 50CLC 13 - PROPEL DRIVE PLUMBING 0260 AXLES, DIFF. AND SUSP. SYS. HYD

0

4435320

Hydraulic Hose

SUB FOR TH4435320

4шт.

3

T78313

O-Ring

4шт.

4

4085560

Flange Fitting

SUB FOR TH101960

8шт.

5

19M8395

Screw

M12 X 40

16шт.

6

4189535

Adapter Fitting

SUB FOR AT114853

4шт.

6A

TH101926

O-Ring

(NOT ILLUSTRATED) COMPONENTS OF TH101926

1шт.

7

T76938

O-Ring

4шт.

9

4443346

Hydraulic Hose

SUB FOR TH4443346

1шт.

10

4443348

Hydraulic Hose

SUB FOR TH4443348

1шт.

11

A852544

Tee Fitting

SUB FOR THA852544

1шт.

11A

4506418

O-Ring

(SUB FOR U46489)(NOT ILLUSTR ATED) COMPONENTS OF THA852544

1шт.

12

4279302

Adapter Fitting

SUB FOR TH4317612 AND 4317612

2шт.

12A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)(NOT IL LUSTRATED) COMPONENTS OF TH4317612

1шт.

16

4339413

Hose Clamp

SUB FOR AT201818

2шт.

17

4267673

Hose Clamp

SUB FOR AT201725

2шт.

18

4268908

Strap

SUB FOR AT201727

2шт.

20

8061456

Bracket

SUB FOR AT202373

2шт.

21

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

22

12M7058

Lock Washer

12 mm (SUB FOR 12M7067

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

24

AT134361

Hydraulic Hose

2шт.

26

A852323

Elbow Fitting

SUB FOR THA852323

2шт.

26A

M800650

Packing

(NOT ILLUSTRATED) COMPONENTS OF THA852323

1шт.

27

4202564

Adapter Fitting

SUB FOR AT215879

2шт.

27A

M800650

Packing

(NOT ILLUSTRATED) COMPONENTS OF AT215879

1шт.

28

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

28A

CH11570

O-Ring

(NOT ILLUSTRATED) COMPONENTS OF THA852133

1шт.

30

4343768

Grommet

SUB FOR AT202351

2шт.
