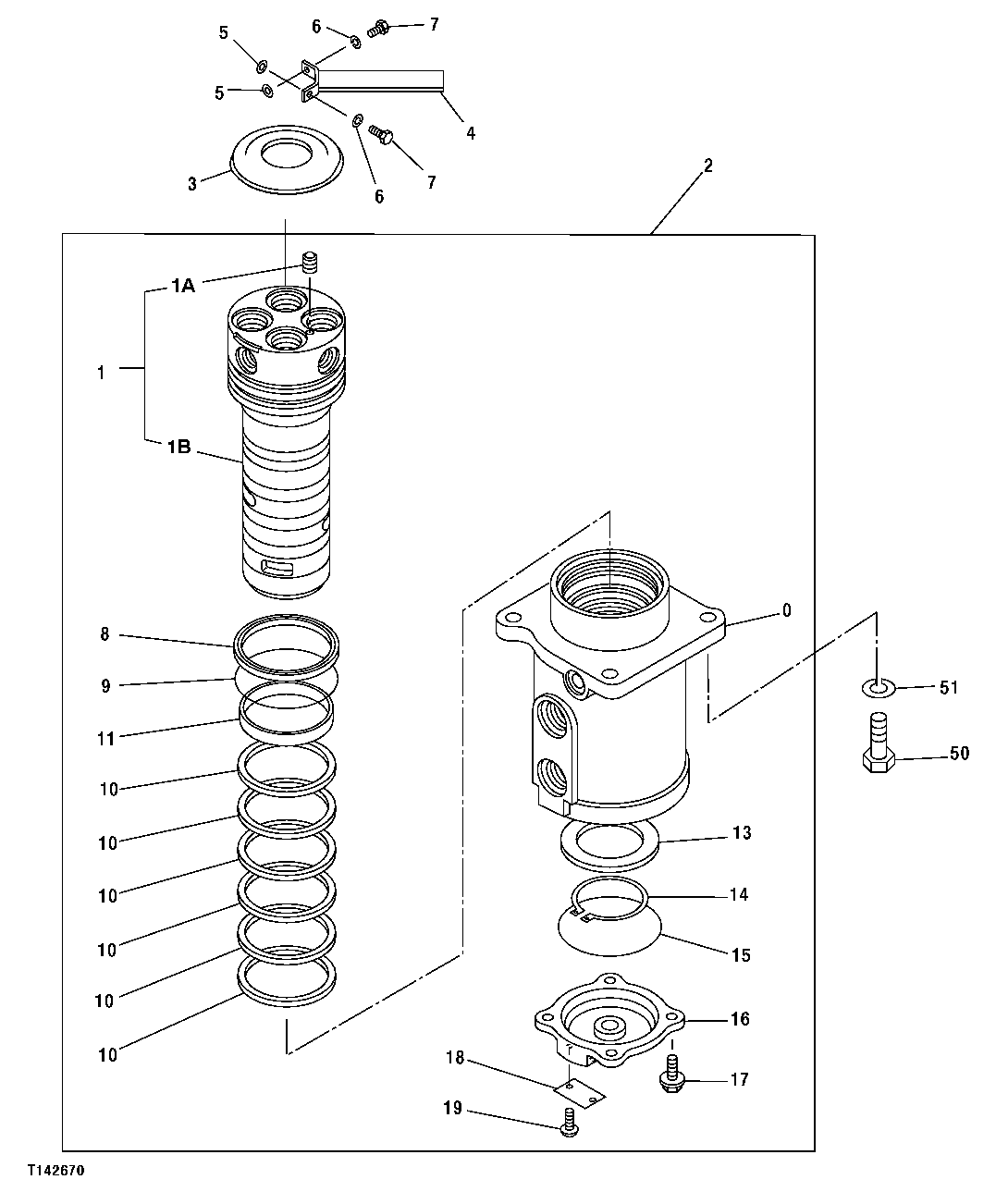

Запчасти John Deere 50CLC 12 - ROTARY MANIFOLD 0260 AXLES, DIFF. AND SUSP. SYS. HYD

0

Housing

( TH1027536 NLA)

1шт.

1

9186449

Spindle

(SUB FOR TH9186449)

1шт.

1A

Spindle

( TH0003590 NLA)

1шт.

1B

Plug

( AT154169 NLA)

1шт.

2

9199789

Manifold

NLA (ORDER 9199789EX)

1шт.

9199789EX

Manifold Reman

(REMAN FOR 9199789) (SUB F OR TH9183296 OR 9183296EX)

1шт.

3

4205476

Cover

(SUB FOR AT131790)

1шт.

4

8039014

Stop

(SUB FOR AT132067)

1шт.

5

4114404

Washer

(SUB FOR AT130666)

2шт.

6

12H317

Lock Washer

9/16"

2шт.

7

19M6332

Cap Screw

M14 X 35

2шт.

8

4408281

Seal

(SUB FOR TH4408281)

1шт.

9

AT264340

O-Ring

(SUB FOR TH4430508 OR 4430508 OR 992446)

1шт.

10

4359550

Seal

(SUB FOR T165610)

6шт.

11

4359549

Bushing

(SUB FOR T165611)

1шт.

13

4359548

Ring

(SUB FOR T165612)

1шт.

14

40M7150

Snap Ring

1шт.

15

CH13523

Packing

1шт.

16

3074241

Cover

(SUB FOR T165613)

1шт.

17

19M8011

Cap Screw

M12 X 30

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

18

Decals

( AT154130 NLA)

1шт.

19

37H99

Screw

0.100" X 1/4"

2шт.

50

19M7488

Cap Screw

M16 X 40

4шт.

51

12H294

Lock Washer

5/8"

4шт.
