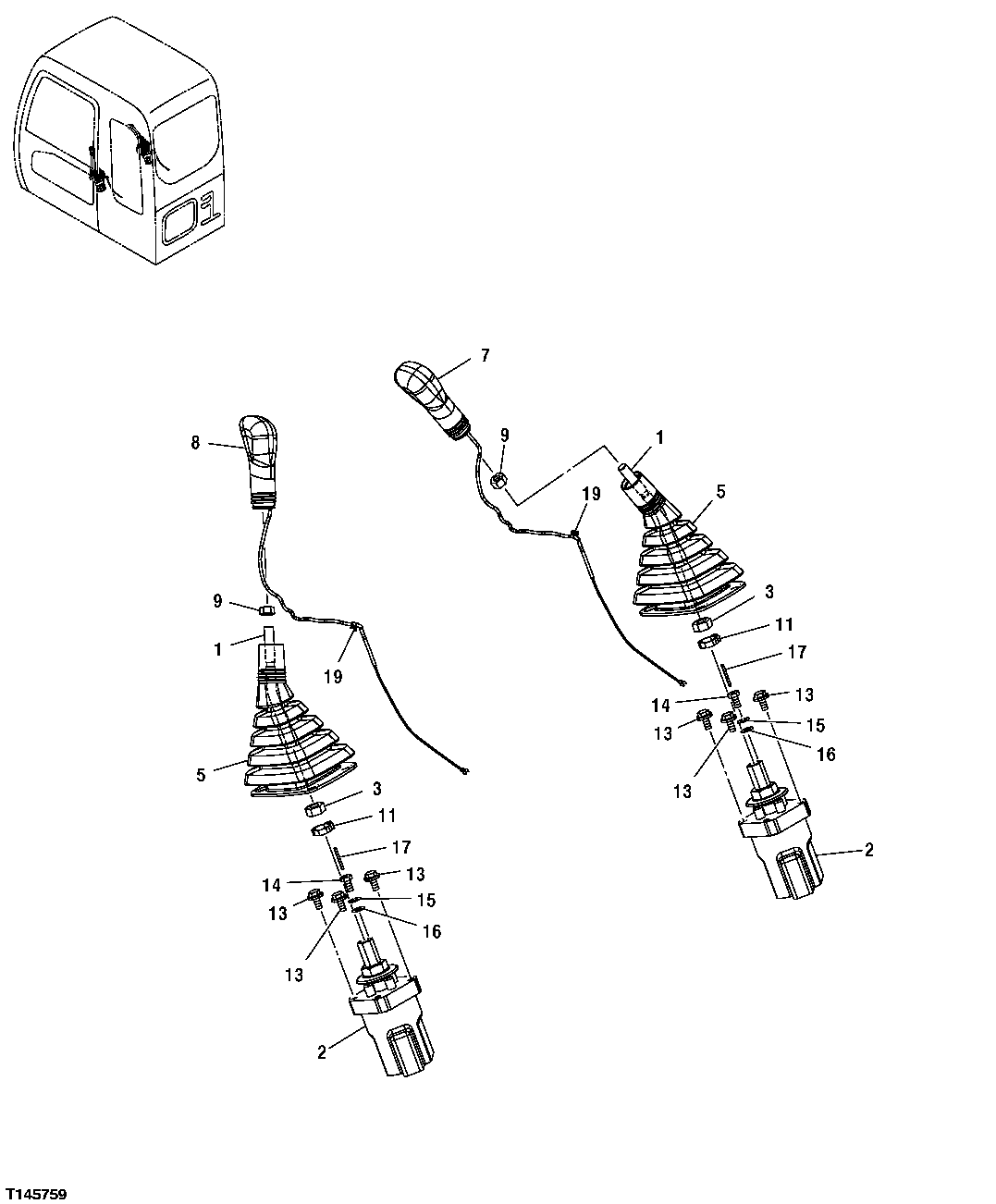

Запчасти John Deere 50CLC 221 - PILOT CONTROLLER LEVER COMPONENTS (DIG AND SWING) 3315 CONTROLS LINKAGE

1

4445322

Lever

(SUB FOR TH4445322)

2шт.

2

9239583

Hydr./Pilot Control Valve

(SUB 9239583 ) (ALSO ORDER (3) 19 M7139, (3) 24M7055 AND (3) 4609956 ) (SUB FOR TH9195304 AND 9195304)

2шт.

FYB60000655

Hydr./Pilot Control Valve

SUB FOR 9239583

2шт.

3

14M7141

Nut

M14

2шт.

5

2045470

Boot

(SUB FOR TH2045470)

2шт.

7

2045471

Grip

(SUB FOR TH2045471)

1шт.

8

2045472

Grip

(SUB FOR TH2045472)

1шт.

9

14M7357

Nut

M12

2шт.

11

H77698

Tie Band

2шт.

13

19M7932

Cap Screw

M8 X 16 (SUB FOR 19M7162)

6шт.

12M7056

Lock Washer

8 mm

6шт.

19M7139

Cap Screw

M8 X 20 (SUB FOR J260820, J900820)

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

6шт.

14

4438279

Bolt

(SUB FOR TH4438279)

2шт.

4609956

Bolt

2шт.

15

12M7056

Lock Washer

8 mm

2шт.

16

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

17

34M7086

Spring Pin

3 X 32 mm

2шт.

19

H77698

Tie Band

2шт.
