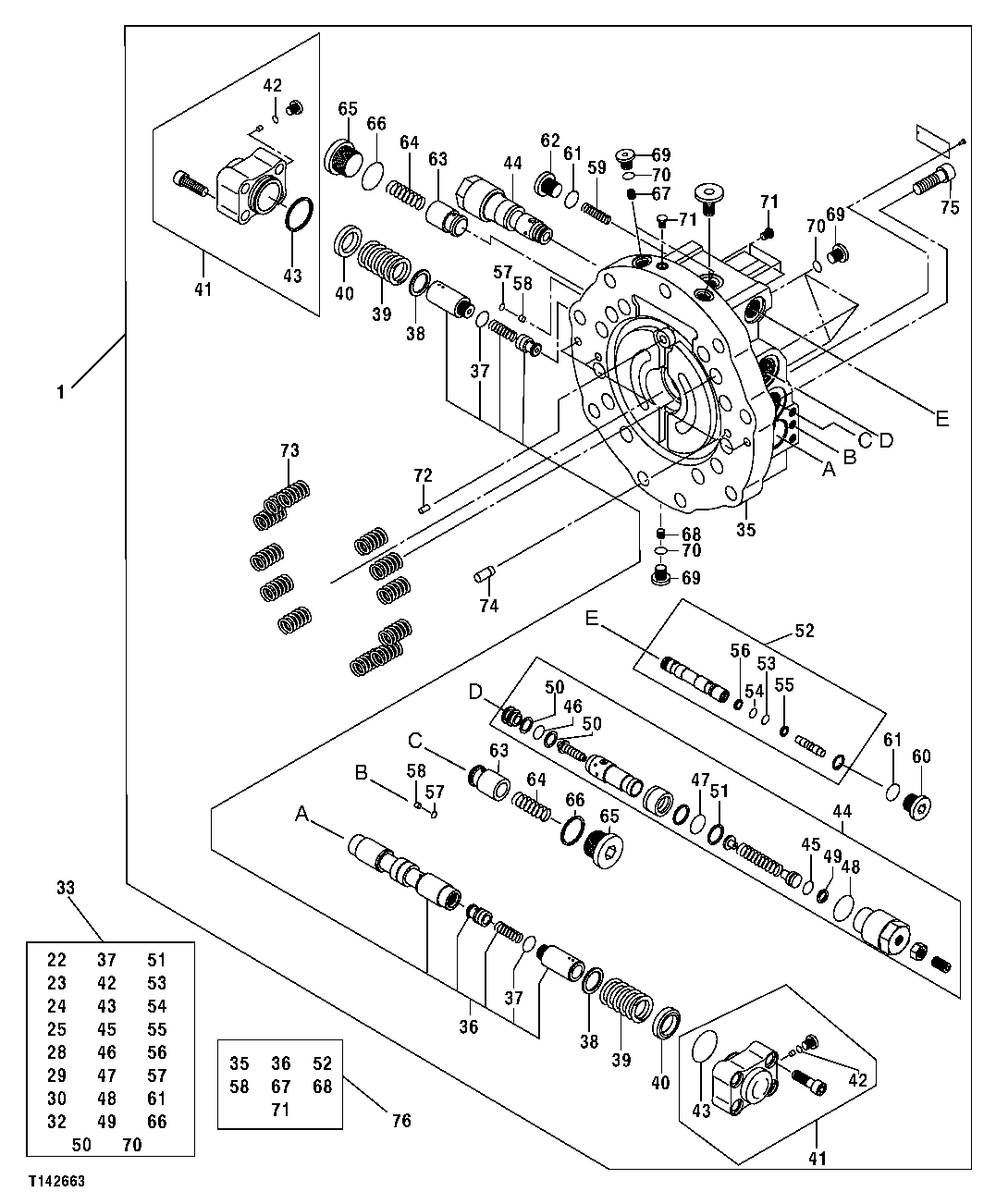

Запчасти John Deere 50CLC 11 - PROPEL MOTOR COMPONENTS 0260 AXLES, DIFF. AND SUSP. SYS. HYD

1

4637796

Hydraulic Motor

NLA (ORDER PG200030)

1шт.

PG200030

Hydraulic Motor Reman

Contains All Items On This Page - A dditional Components Listed On Separ ate Pages (SUB FOR TH4431549, 443154 9EX OR 4481832EX) (REMAN FOR 4637796 )

1шт.

33

0809515

Seal Kit

Contains All Items On This Page - Additional Components Listed On S eparate Pages (SUB FOR TH0809515)

1шт.

35

Plate

(NLA)

1шт.

36

Spool

(NLA)

1шт.

37

O-Ring

(NLA)

2шт.

38

0163601

Plate

(SUB FOR AT132163)

2шт.

39

0420002

Spring

(SUB FOR AT201568)

2шт.

40

0809601

Spring

Seat (SUB FOR TH0809601)

2шт.

41

0820201

Cap

(ASSY) (SUB FOR TH0820201)

2шт.

42

O-Ring

(NLA)

1шт.

43

O-Ring

(NLA)

1шт.

44

0820202

Pressure Relief Valve

(SUB FOR TH0820202)

2шт.

45

O-Ring

(NLA)

1шт.

46

O-Ring

(NLA)

1шт.

47

O-Ring

(NLA)

1шт.

48

O-Ring

(NLA)

1шт.

49

Back-Up Ring

(NLA)

1шт.

50

Back-Up Ring

(NLA)

2шт.

51

Back-Up Ring

(NLA)

2шт.

52

Valve

(NLA)

1шт.

53

O-Ring

(NLA)

1шт.

54

O-Ring

(NLA)

1шт.

55

Back-Up Ring

(NLA)

1шт.

56

Back-Up Ring

(NLA)

1шт.

57

CH11568

Packing

2шт.

58

Orifice

(NLA)

2шт.

59

0820203

Spring

(SUB FOR TH0820203)

1шт.

60

0671002

Fitting Plug

(SUB FOR AT218063)

1шт.

61

4506418

O-Ring

(SUB FOR U46489)

2шт.

62

0820204

Pipe Plug

(SUB FOR TH0820204)

1шт.

63

0352304

Check Valve

(SUB FOR AT132269)

2шт.

64

0352305

Spring

(SUB FOR AT132270)

2шт.

65

0352306

Plug

(SUB FOR AT132271)

2шт.

66

TH101926

O-Ring

2шт.

67

Orifice

(NLA)

2шт.

68

Orifice

(NLA)

1шт.

69

0436608

Fitting Plug

(SUB FOR AT218054)

6шт.

70

M800650

Packing

6шт.

71

Plug

(NLA)

9шт.

72

0682803

Pin

(SUB FOR TH0682803)

1шт.

73

0809604

Spring

(SUB FOR TH0809604)

10шт.

74

0251319

Pin

(SUB FOR AT127988)

4шт.

75

0168008

Bolt

(SUB FOR AT170382)

9шт.

76

0820205

Plate

Plate Assembly (SUB FOR TH0820205)

1шт.
