210 - TRUCK LOADING BUCKET

Запчасти John Deere 50CLC 210 - TRUCK LOADING BUCKET 3302 BUCKET WITH TEETH

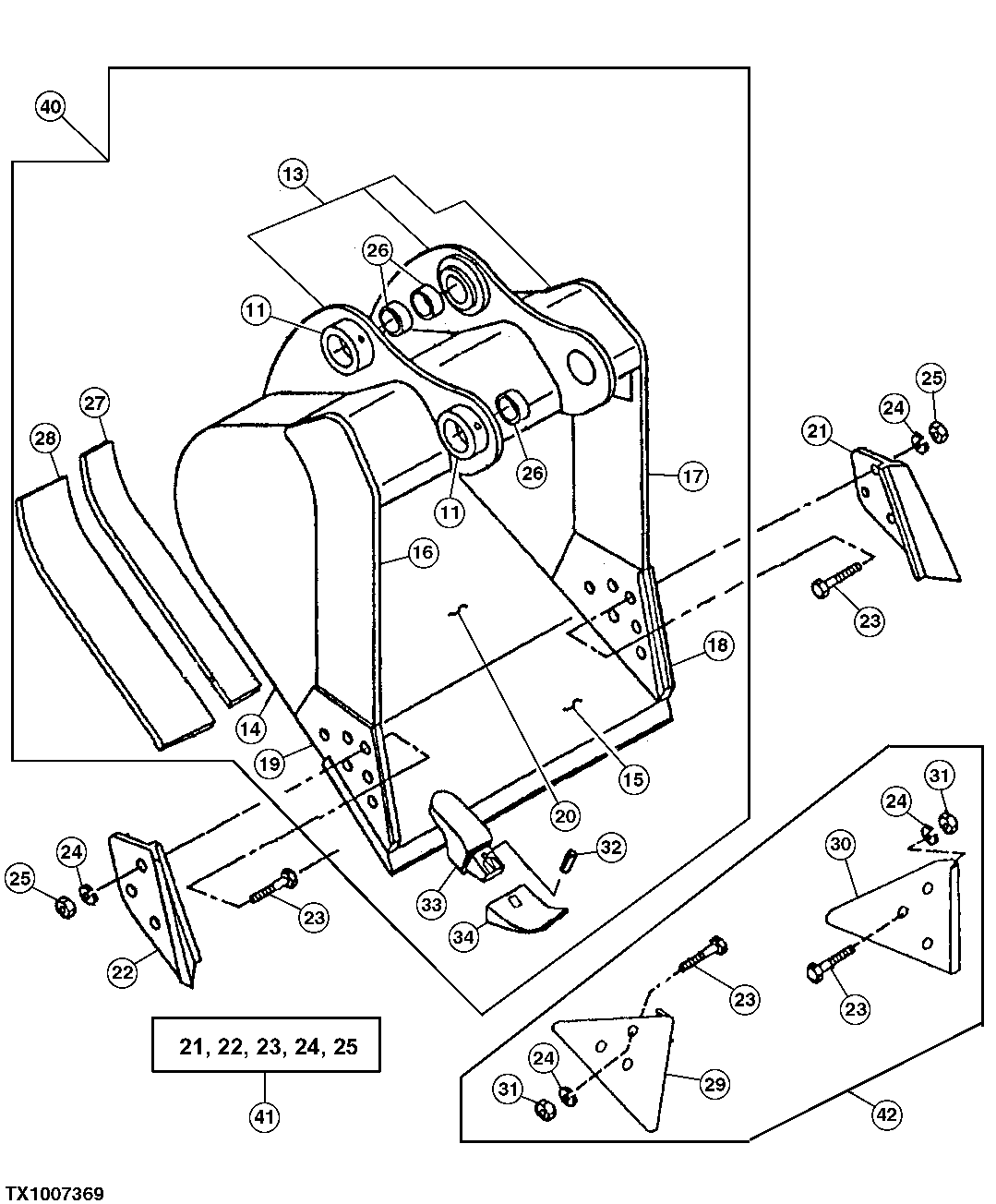

Схема запчастей John Deere 50CLC - 210 - TRUCK LOADING BUCKET 3302 BUCKET WITH TEETH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11

AT128461

Bushing

2шт.

13

C609726

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304171

Plate

(F) (RH) (LH)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300327

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER)

1шт.

17

300328

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER)

1шт.

18

309971

Vertical Cutter

(F) (LH) (CUTTER INSERT)

1шт.

19

309970

Vertical Cutter

(F) (RH) (CUTTER INSERT)

1шт.

20

608619

Moldboard

(F) (UPPER)

1шт.

610934

Moldboard

(F) (LOWER)

1шт.

21

Cutting Edge

(SUB AT131086)

1шт.

22

Cutting Edge

(SUB AT131086)

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

3шт.

27

309972

Bar

(F) (INNER WEAR)

2шт.

28

309972

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(SUB AT167878) Wear Shroud

1шт.

30

Shroud

(SUB AT167878) Wear Shroud

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

39

T145372

Label

(NLA)

1шт.

40

Excavator Bucket

(SUB FOR AT163687)( AT332744 NLA) (INCLUDES T145372 LABEL) (72 INCH - 4.18 CUBIC YARD) (REQUIRES 6 TEETH )

1шт.

41

Kit

( AT131086 NLA) (CUTTING EDGE)

1шт.

42

Kit

( AT167878 NLA) (WEAR)

1шт.
