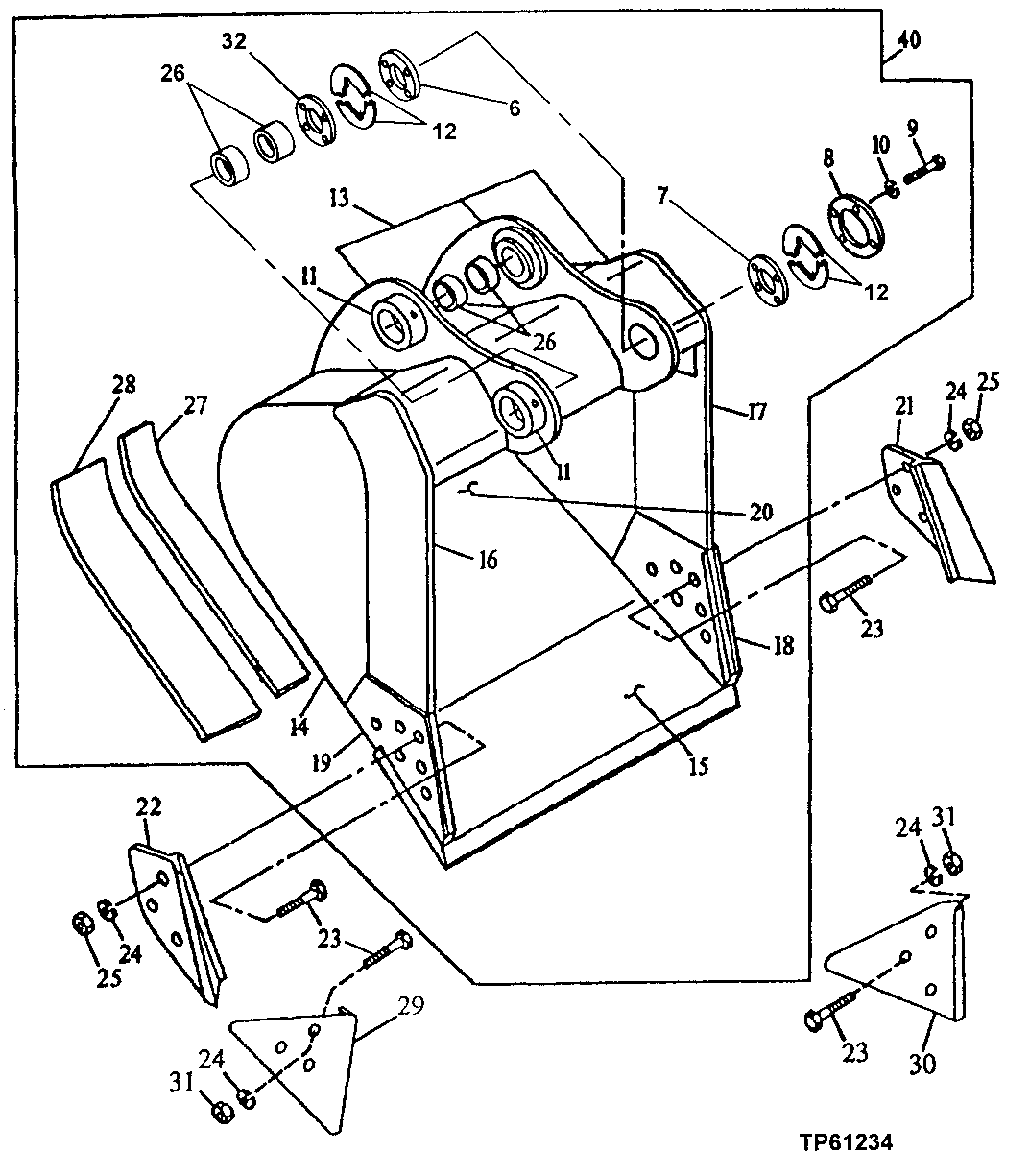

Запчасти John Deere 50CLC 201 - HEAVY DUTY HIGH CAPACITY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKET WITH TEETH

6

C31763

Boss

(F)

1шт.

7

C31764

Boss

(F)

1шт.

8

AT183653

Plate

1шт.

9

19M7884

Cap Screw

M16 X 110

4шт.

10

12M7134

Lock Washer

16 mm

4шт.

11

AT128461

Bushing

2шт.

12

AT183654

Shim

14шт.

13

C606320

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

300324

Plate

(F) Right and Left Side

2шт.

15

AT131098

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300327

Vertical Cutter

(F) Upper Right Side Cutter

1шт.

17

300328

Vertical Cutter

(F) Upper Left Side Cutter

1шт.

18

300326

Vertical Cutter

(F) Left Side Cutter Insert

1шт.

19

300325

Vertical Cutter

(F) Right Side Cutter Insert

1шт.

20

600190

Moldboard

(F) (36 INCH)

1шт.

600192

Moldboard

(F) (42 INCH)

1шт.

600194

Moldboard

(F) (48 INCH)

1шт.

600195

Moldboard

(F) (54 INCH)

1шт.

600196

Moldboard

(F) (60 INCH)

1шт.

608234

Moldboard

(F) (72 INCH)

1шт.

21

Cutting Edge

(A) (SUB AT131085)

1шт.

22

Cutting Edge

(A) (SUB AT131085)

1шт.

23

09H1771

Bolt

(A) (B) 7/8" X 3"

6шт.

24

12H245

Lock Washer

(A) (B) 7/8"

6шт.

25

14H1077

Nut

(A) 7/8"

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

4шт.

27

300645

Bar

(F) Inner Wear

1шт.

28

307451

Bar

(F) Outer Wear

1шт.

29

Shroud

(B) Wear

1шт.

30

Shroud

(B) Wear

1шт.

31

14H1044

Nut

(B) 7/8"

6шт.

32

AT183652

Boss

1шт.

40

Excavator Bucket

36 in, 96 cu yd, (AT183645 NLA ) Available Tooth Assemblies On Separate Page Requires 4 Teeth

1шт.

Excavator Bucket

( AT183646 NLA) (WHOLEGOODS) (42 INCH - 2.32 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

( AT183647 NLA) (SUB AT332745 (WHOLEGOODS) (48 INCH - 2.69 CUBIC YARD) (REQUIRES 5 TEETH) )

1шт.

Excavator Bucket

( AT183648 NLA) (SUB AT332746 (WHOLEGOODS) (54 INCH - 3.06 CUBIC YARD) (REQUIRES 5 TEETH) )

1шт.

Excavator Bucket

( AT183649 NLA) (SUB AT332747 (WHOLEGOODS) (60 INCH - 3.43 CUBIC YARD) (REQUIRES 6 TEETH) )

1шт.

Excavator Bucket

( AT183650 NLA) (SUB AT332748 (WHOLEGOODS) (66 INCH - 3.80 CUBIC YARD) (REQUIRES 6 TEETH) )

1шт.

Excavator Bucket

( AT183651 NLA) (SUB AT332749 (WHOLEGOODS) (72 INCH - 4.18 CUBIC YARD) (REQUIRES 7 TEETH) )

1шт.
