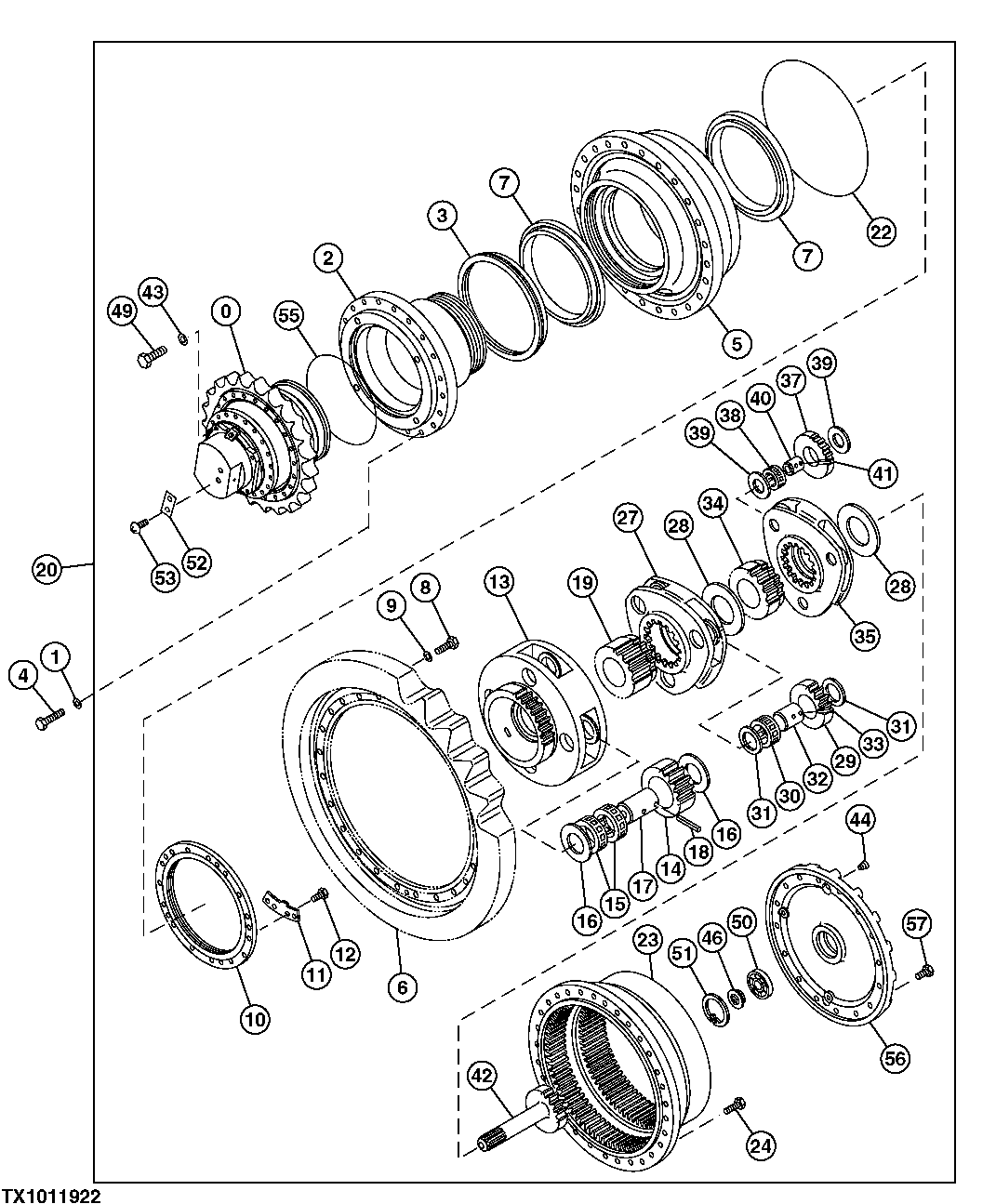

Запчасти John Deere 50CLC 9 - Propel Gear Box Components 0260 AXLES, DIFF. AND SUSP. SYS. HYD

0

4637796

Hydraulic Motor

NLA, ORDER PG200030

1шт.

PG200030

Hydraulic Motor Reman

SUB FOR TH4431549, 4431549EX O R 4481832EX, REMAN FOR 4637796

1шт.

1

T56006

Washer

40шт.

2

1027942

Housing

SUB FOR TH1027942

1шт.

3

4344155

Seal Kit

SUB FOR TH4344155

1шт.

4

J932200

Bolt

SUB FOR AT122492

40шт.

5

1015882

Drum

SUB FOR AT201649

1шт.

6

1010956

Chain Sprocket

SUB FOR AT131565, 4S00540 OR 1028494

1шт.

7

FYB00001746

Bearing

SUB FOR 4200411 AND AT131735

2шт.

8

T214405

Bolt

SUB FOR TH101870 OR J932270

24шт.

9

12H245

Lock Washer

7/8"

24шт.

10

3043140

Retainer

SUB FOR AT131651

1шт.

11

3043141

Lock Plate

SUB FOR AT131652

1шт.

12

19M7872

Cap Screw

M12 X 25

2шт.

13

1015883

Planet Pinion Carrier

SUB FOR AT201650

1шт.

14

3053195

Planet Pinion

SUB FOR AT201678

4шт.

15

4452484

Needle Bearing

SUB FOR TH4452484

8шт.

16

4219595

Thrust Washer

SUB FOR AT131899

8шт.

17

4263903

Sleeve

SUB FOR AT201720

4шт.

18

34H343

Spring Pin

5/16" X 3-1/2"

4шт.

19

3053786

Sun Gear

SUB FOR AT201683

1шт.

20

9203565

Hydraulic Motor

SUB FOR TH9203565

2шт.

22

4203187

O-Ring

SUB FOR AT131751

1шт.

23

1018360

Ring Gear

SUB FOR AT201654

1шт.

24

J931845

Bolt

SUB FOR AT201959

30шт.

27

1015523

Planet Pinion Carrier

SUB FOR AT201645

1шт.

28

4263905

Washer

SUB FOR AT201721

2шт.

29

3053194

Planet Pinion

SUB FOR AT201677

3шт.

30

4452483

Needle Bearing

SUB FOR TH4452483

3шт.

31

4201968

Shim

SUB FOR AT131747

6шт.

32

4263902

Spacer

SUB FOR AT201719

3шт.

33

4203180

Spring Pin

SUB FOR AT131748

3шт.

34

3053785

Sun Gear

SUB FOR AT201682

1шт.

35

1015505

Planet Pinion Carrier

SUB FOR AT201644

1шт.

37

3053098

Planet Pinion

SUB FOR AT201676

3шт.

38

4452480

Needle Bearing

SUB FOR TH4452480

3шт.

39

4269295

Shim

SUB FOR AT154773

6шт.

40

4263901

Spacer

SUB FOR AT201718

3шт.

41

4222030

Spring Pin

SUB FOR AT202097

3шт.

42

2044685

Shaft

SUB FOR TH2044685

1шт.

43

12H236

Lock Washer

3/4" SUB FOR 12H312

4шт.

44

0153426

Fitting Plug

SUB FOR AT133613

3шт.

46

4288767

Pin

SUB FOR AT201749

1шт.

49

19M8969

Cap Screw

M18 X 60 SUB FOR J911860

4шт.

50

4274541

Ball Bearing

SUB FOR AT160248

1шт.

51

40M7090

Snap Ring

1шт.

52

Identification Plate

AT154130 NLA

1шт.

53

37H99

Screw

0.100" X 1/4"

2шт.

55

4271596

O-Ring

SUB FOR AT131752

1шт.

56

1023348

Cover

SUB FOR AT217072

1шт.

57

4373463

Bolt

SUB FOR AT217130

16шт.
