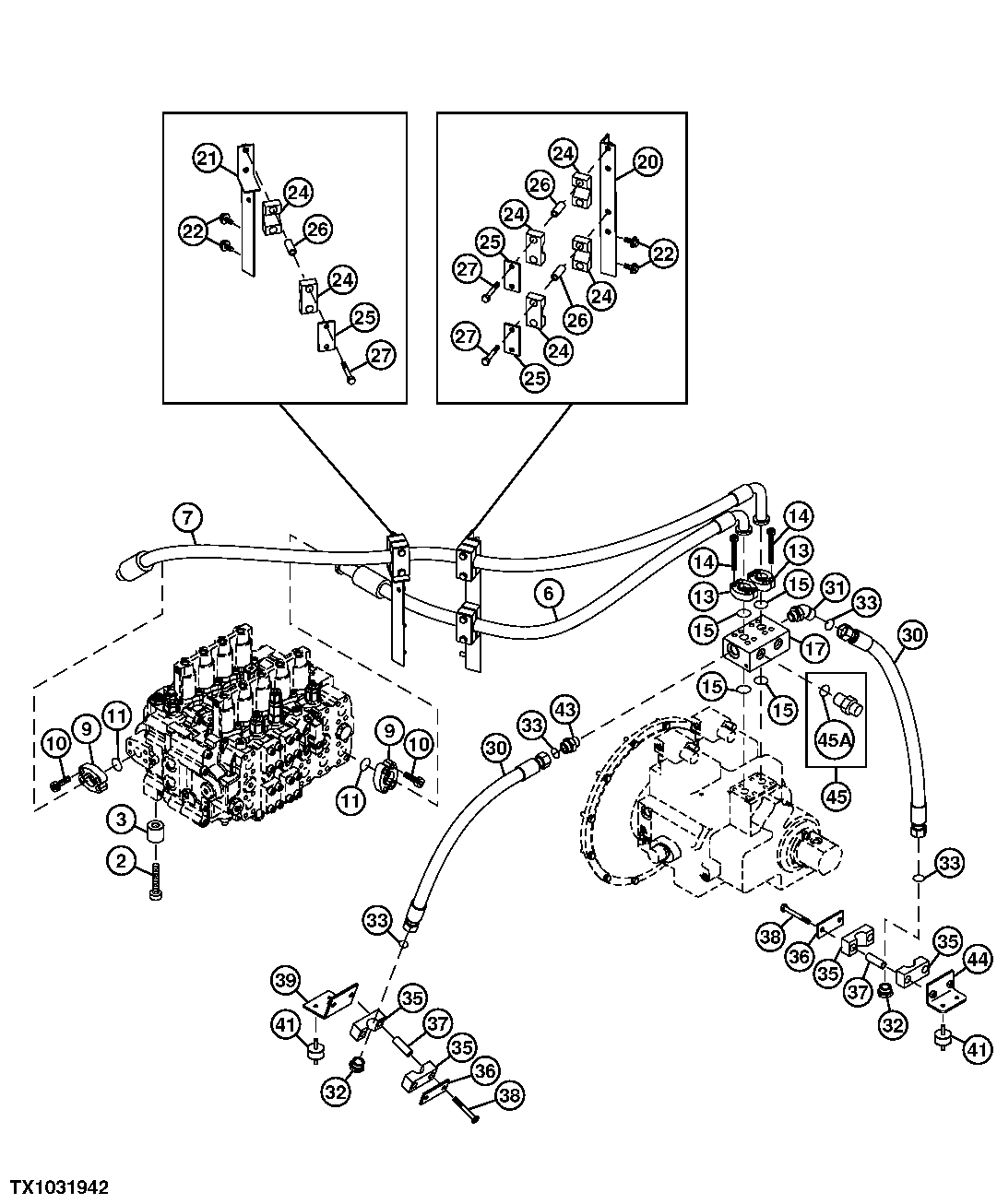

Запчасти John Deere 50CLC 193 - HYDRAULIC HOSES (PUMP TO CONTROL VALVE) 2160 VEHICLE HYDRAULICS

2

M342000

Screw

4шт.

3

4354513

Spacer

SUB FOR AT172243

4шт.

6

4436055

Hydraulic Hose

SUB FOR TH4436055

1шт.

7

4436054

Hydraulic Hose

SUB FOR TH4436054

1шт.

9

AT131685

Flange Fitting

4шт.

10

19M8734

Screw

M14 X 45

8шт.

11

T72216

O-Ring

2шт.

13

4085560

Flange Fitting

SUB FOR TH101960

4шт.

14

M341211

Bolt

SUB FOR AT202274

8шт.

15

T78313

O-Ring

4шт.

17

2043824

Manifold

SUB FOR TH2043824

1шт.

20

9754731

Bracket

SUB FOR TH9754731

1шт.

21

8079964

Bracket

SUB FOR TH8079964

1шт.

9759374

Bracket

1шт.

22

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

24

4341808

Hose Clamp

SUB FOR AT201828

6шт.

25

4341803

Plate

SUB FOR AT201827

3шт.

26

4205614

Spacer

SUB FOR AT131791

6шт.

27

19M7949

Cap Screw

M12 X 100

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

30

4286812

Hydraulic Hose

SUB FOR AT202308

2шт.

31

FYA00046237

Elbow Fitting

INCLUDES TH101926, SUB FOR AT201732 AND 4270315

1шт.

TH101926

O-Ring

1шт.

32

4210056

Plug

SUB FOR AT202300

2шт.

33

T76938

O-Ring

4шт.

35

4349621

Hose Clamp

SUB FOR AT170625

4шт.

36

4341803

Plate

SUB FOR AT201827

2шт.

37

4215879

Spacer

SUB FOR AT170626 AND 4349648

4шт.

38

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

39

9756342

Bracket

SUB FOR TH9756342

1шт.

41

4354592

Isolator

SUB FOR AT216977

4шт.

43

A853188

Adapter Fitting

INCLUDES TH101926, SUB FOR THA853188

1шт.

TH101926

O-Ring

1шт.

44

9757386

Bracket

SUB FOR TH9757386

1шт.

45

4436271

Sensor

2шт.

TH102560

O-Ring

2шт.
