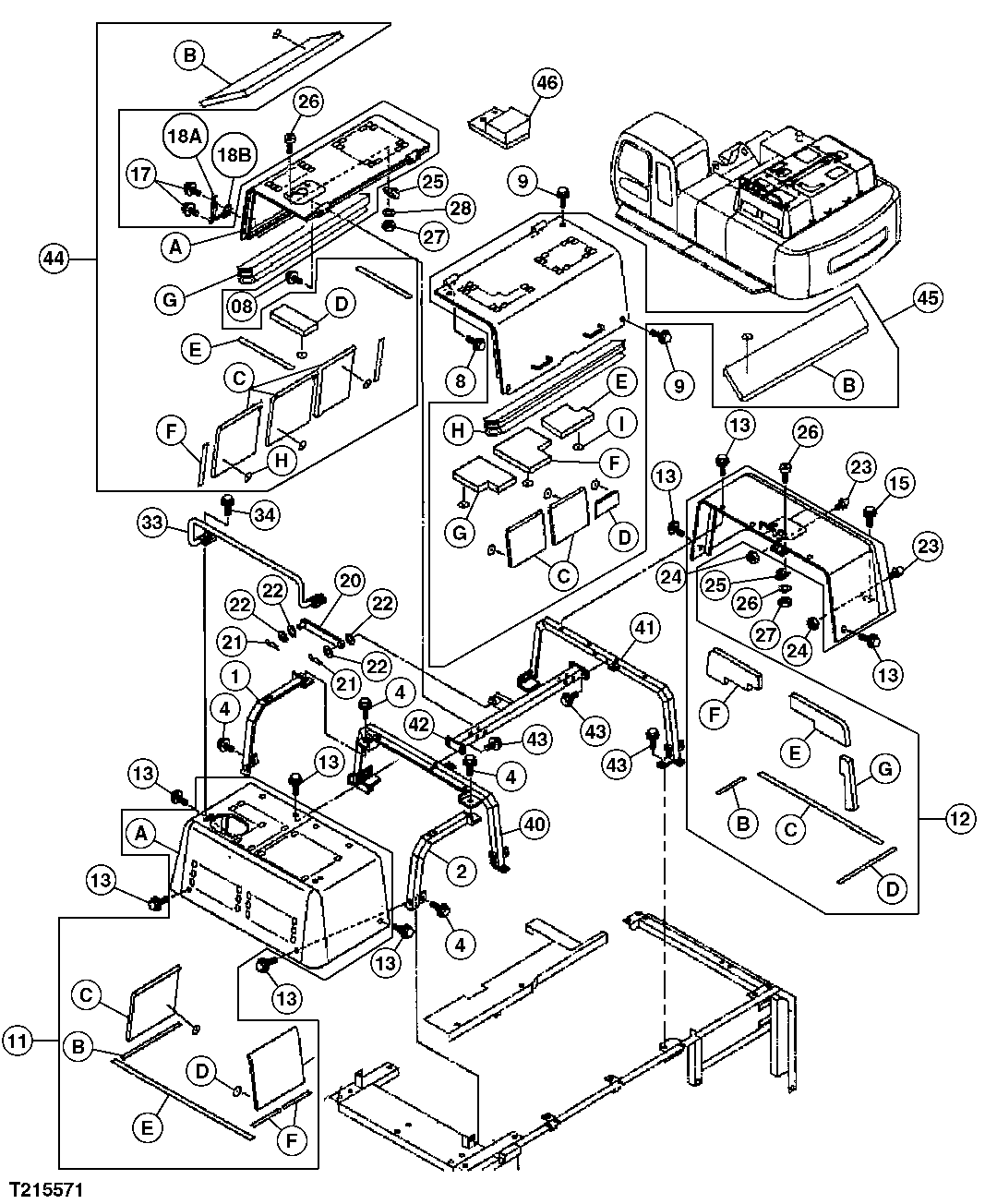

Запчасти John Deere 50CLC 183 - ENGINE COVER (CONTINUED) (SN 091879- ) 1910 HOOD AND ENGINE ENCLOSURE

13

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

14шт.

19M7403

Cap Screw

M12 X 35

14шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

14шт.

15

19M7403

Cap Screw

M12 X 35

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

17

19M7881

Screw

M8 X 20

8шт.

18A

3074568

Catch

(SUB FOR AT131654)

1шт.

18B

3021131

Anchor

(SUB FOR TH102247)

1шт.

20

9765524

Catch

1шт.

21

M40461

Spring Locking Pin

2шт.

22

J217085

Washer

(SUB FOR THJ217085)

4шт.

23

4204586

Bumper

(SUB FOR TH108668)

2шт.

24

14M7274

Nut

M10

2шт.

25

4372725

Stop

(SUB FOR TH4372725)

2шт.

26

Screw

(SUB FOR AT156973)( J460410 NLA)

4шт.

21M7396

Screw

M4 X 10

4шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

4шт.

12H315

Lock Washer

0.164"

4шт.

27

24M7117

Washer

4.300 X 9 X 0.800 mm (SUB FOR 14M7100)

4шт.

28

14M7139

Nut

M4

4шт.

33

8086634

Handrail

(SUB FOR TH8086634)

1шт.

34

19M7753

Cap Screw

M12 X 70 (SUB FOR AT200007 OR J0212 70 ) (USE WITH 12M7067 AND 24M7043)

4шт.

12M7067

Lock Washer

12 mm

4шт.

24M7043

Washer

12 X 25 X 3 mm

4шт.

40

7049853

Support

1шт.

41

7049854

Support

1шт.

42

8103425

Support

1шт.

43

19M7403

Cap Screw

M12 X 35 (SUB FOR J2712 35, 4609017 AND J011240)

10шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

10шт.

44

7049851

Door

1шт.

44A

Door

(NLA)

1шт.

44B

4647695

Isolator

1шт.

44C

4647696

Isolator

3шт.

44D

4647697

Isolator

1шт.

44E

4461705

Isolator

2шт.

44F

4647698

Isolator

2шт.

44G

4649176

Isolator

1шт.

44H

4156886

Spring Washer

17шт.

45

7049852

Door

1шт.

45A

Door

(NLA)

1шт.

45B

4647699

Isolator

1шт.

45C

4647700

Isolator

2шт.

45D

4647701

Isolator

1шт.

45E

4647702

Isolator

1шт.

45F

4647703

Isolator

1шт.

45G

4647704

Isolator

1шт.

45H

4649177

Isolator

1шт.

45I

4156886

Spring Washer

26шт.

46

9765700

Plate

2шт.
