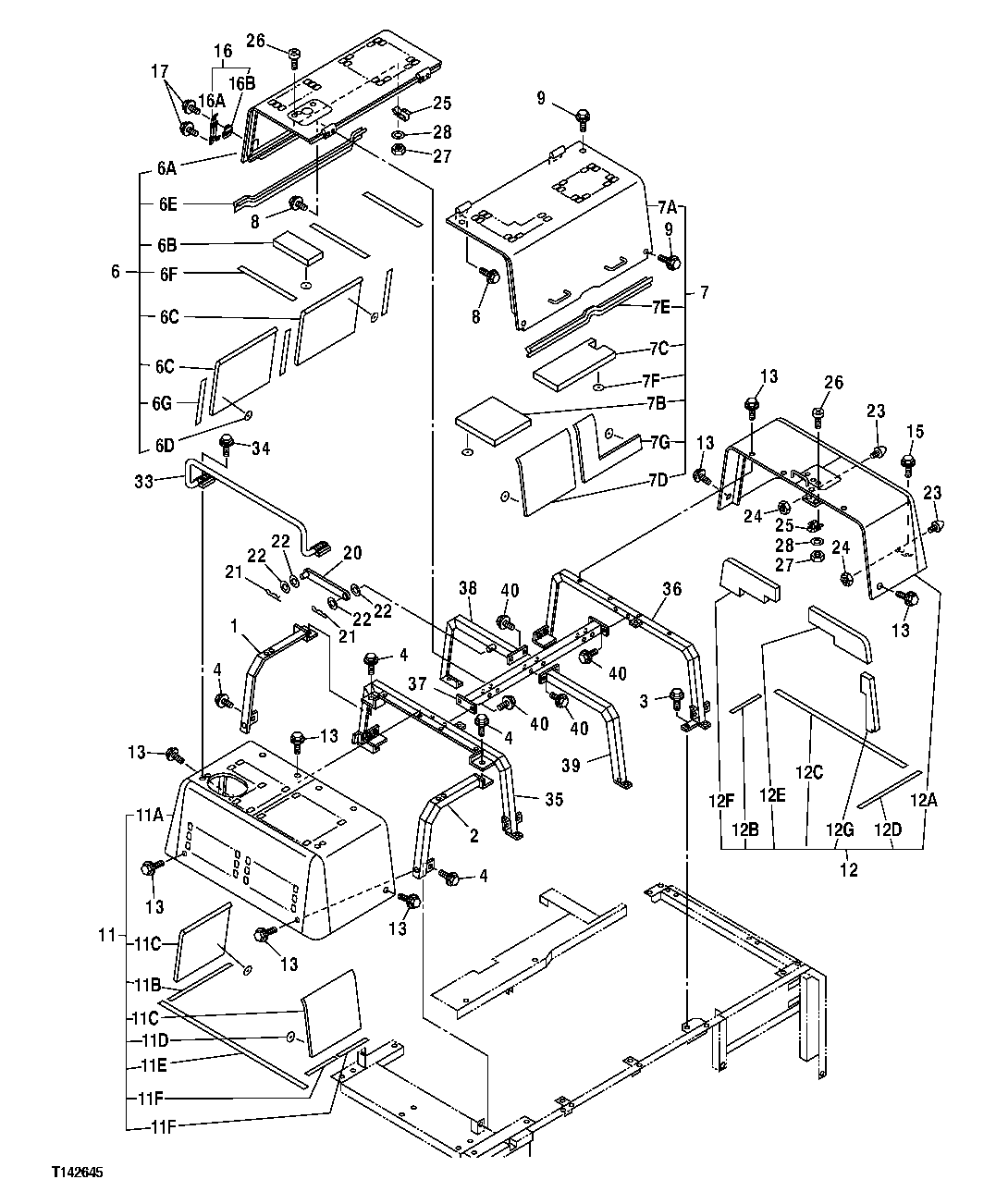

Запчасти John Deere 50CLC 180 - ENGINE COVER (SN -091878) 1910 HOOD AND ENGINE ENCLOSURE

1

8103614

Support

(SUB FOR TH8086614 OR 8086614)

1шт.

2

8086615

Support

(SUB FOR TH8086615)

1шт.

3

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

9шт.

19M7403

Cap Screw

M12 X 35 (SUB FOR J901235)

9шт.

4249324

Washer

9шт.

4

19M7403

Cap Screw

M12 X 35

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

6

7041618

Door

(SUB FOR TH7041618)

1шт.

6A

Door

( TH5008100 NLA)

1шт.

6B

4456413

Isolator

(SUB FOR TH4456413)

1шт.

6C

4456414

Isolator

(SUB FOR TH4456414)

2шт.

6D

4156886

Spring Washer

(SUB FOR AT121962)

10шт.

6E

4456950

Isolator

(SUB FOR TH4456950)

1шт.

6F

4461705

Isolator

(SUB FOR TH4461705)

3шт.

6G

4461706

Isolator

(SUB FOR TH4461706)

3шт.

7

7041619

Door

(SUB FOR TH7041619)

1шт.

7A

Door

( TH5008101 NLA)

1шт.

7B

4456415

Isolator

(SUB FOR TH4456415)

1шт.

7C

4456416

Isolator

(SUB FOR TH4456416)

1шт.

7D

4456417

Isolator

(SUB FOR TH4456417)

1шт.

7E

4467115

Isolator

(SUB FOR TH4467115)

1шт.

7F

4156886

Spring Washer

(SUB FOR AT121962)

15шт.

7G

4467901

Isolator

(SUB FOR TH4467901)

1шт.

8

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)

8шт.

12M7066

Lock Washer

10 mm

8шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

8шт.

9

19M7403

Cap Screw

M12 X 35

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

11

7041598

Cover

(SUB FOR TH7041598)

1шт.

11A

Cover

( TH5008076 NLA)

1шт.

11B

4466643

Isolator

(SUB FOR TH4466643)

1шт.

11C

4466651

Isolator

(SUB FOR TH4466651)

2шт.

11D

4287137

Washer

(SUB FOR TH4287137)

8шт.

11E

4466644

Isolator

(SUB FOR TH4466644)

1шт.

11F

4466645

Isolator

(SUB FOR TH4466645)

2шт.

12

7041268

Cover

(SUB FOR TH7041268)

1шт.

12A

Cover

( TH5008161 NLA)

1шт.

12B

4466528

Isolator

(SUB FOR TH4466528)

1шт.

12C

4466529

Isolator

(SUB FOR TH4466529)

1шт.

12D

4466530

Isolator

(SUB FOR TH4466530)

1шт.

12E

4461632

Isolator

(SUB FOR TH4461632)

1шт.

12F

4459182

Isolator

(SUB FOR TH4459182)

1шт.

12G

4465919

Isolator

(SUB FOR TH4465919)

1шт.
