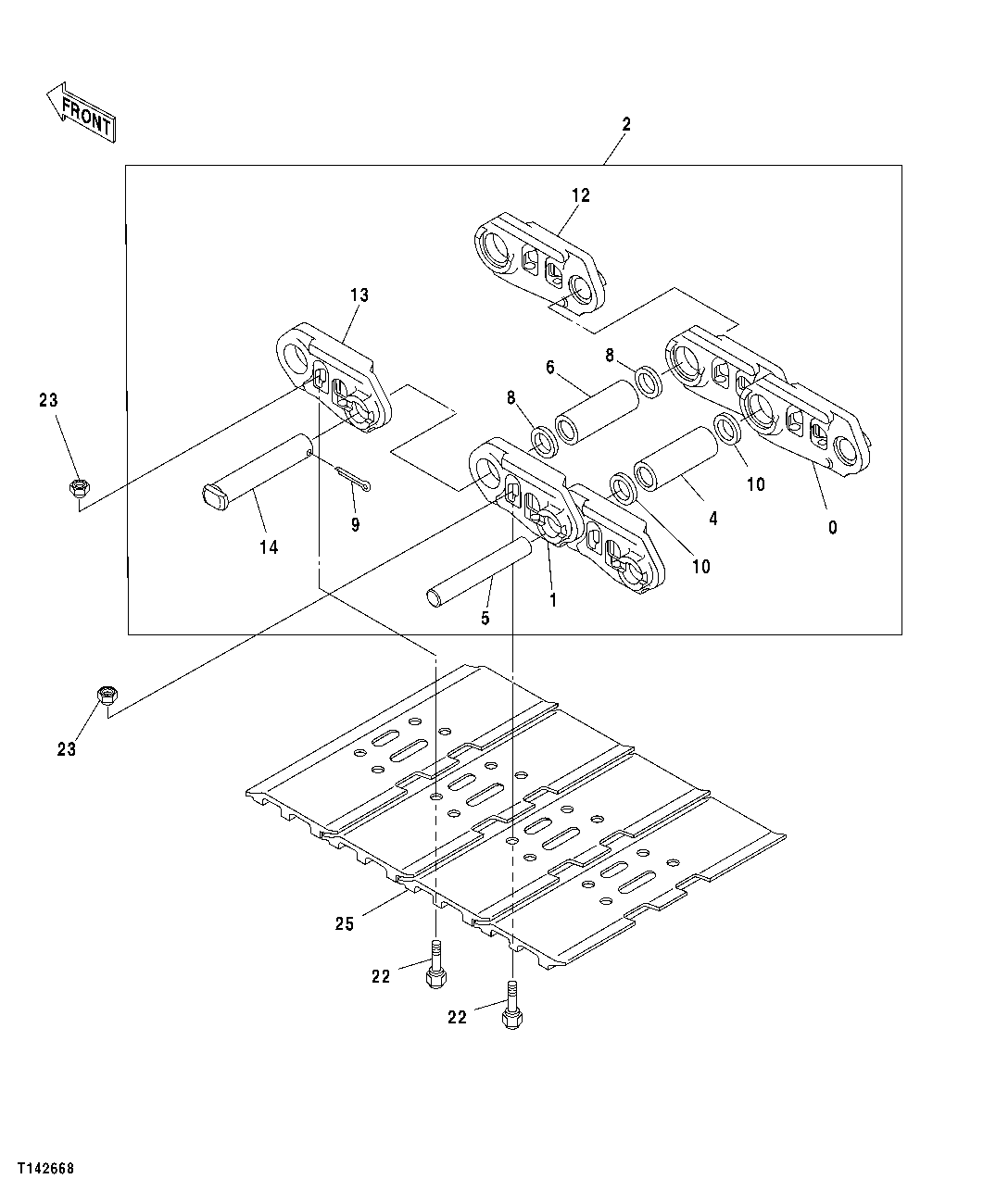

Запчасти John Deere 50CLC 8 - TRACK CHAIN 0130 TRACK SYSTEM

0

4328027

Track Link

(RH) (SUB FOR AT201777)

52шт.

1

4328028

Track Link

(LH) (SUB FOR AT201778)

52шт.

2

9129617

Track Chain W/O Shoes

(SUB FOR AT201936, 4387659)

1шт.

4

4328031

Bushing

(SUB FOR AT201781)

52шт.

5

AT132153

Pin

45.57mm x 254mm

52шт.

6

AT132505

Bushing

Master

1шт.

8

4328032

Seal

(SUB FOR AT201782)

2шт.

9

11H259

Cotter Pin

3/8" X 3-1/2"

1шт.

10

AT132527

Seal

104шт.

12

4342893

Master Track LINK-RH

(SUB FOR AT201779)

1шт.

13

4342894

Master Track LINK-LH

(SUB FOR AT201780)

1шт.

14

4342895

Master Track Pin

Master (SUB FOR AT202240)

1шт.

22

4328034

Bolt

(SUB FOR AT201783)

212шт.

23

4328035

Nut

(SUB FOR AT201784)

212шт.

25

4403212

Triple Bar Shoe

750mm, (SUB FOR AT250131)

53шт.

4409428

Open Center 3 Bar Shoe

900mm, (SUB FOR AT187361)

53шт.
