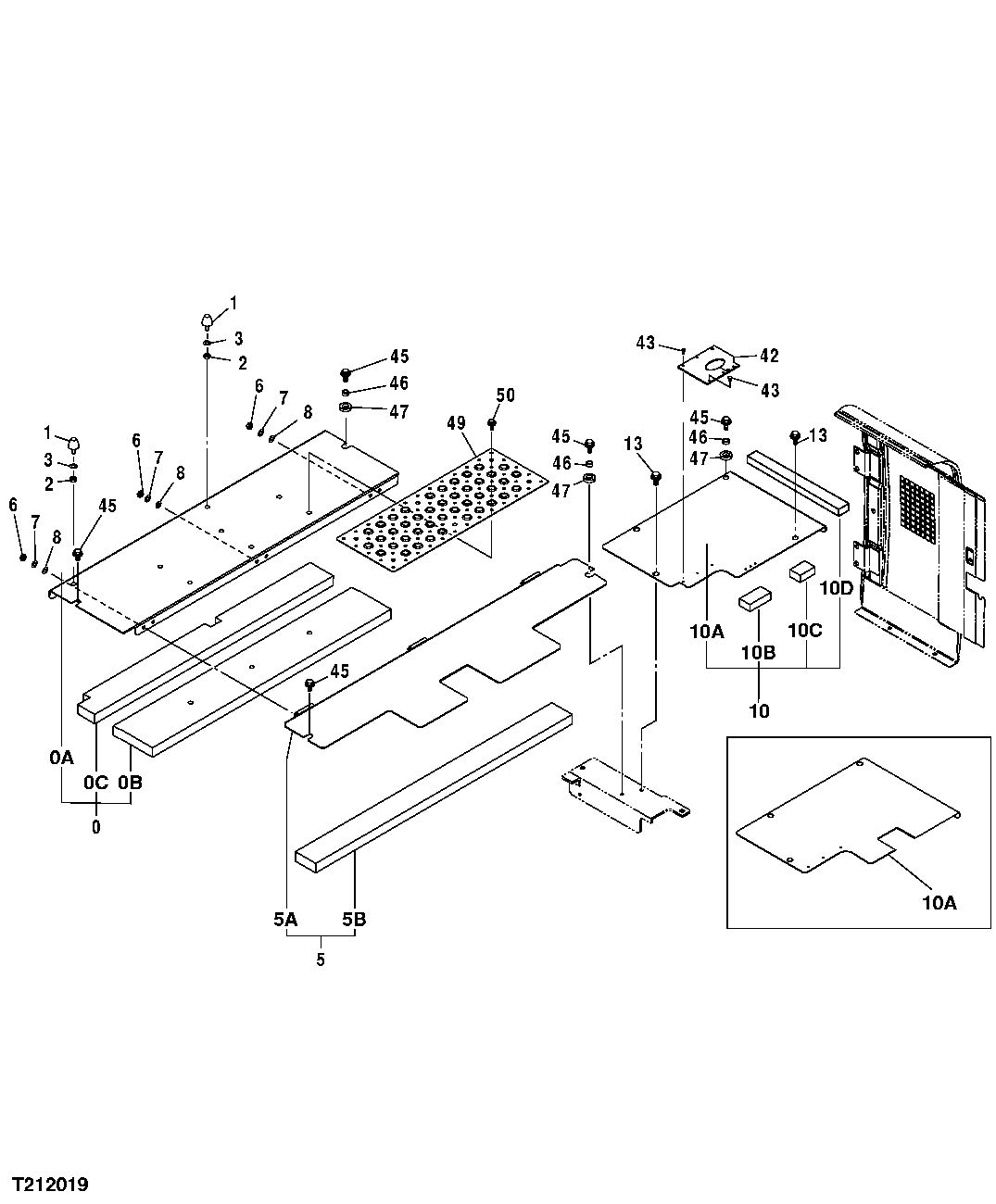

Запчасти John Deere 50CLC 175 - TOP COVERS 1910 HOOD AND ENGINE ENCLOSURE

0

7041101

Cover

SUB FOR TH7041101

1шт.

0A

Cover

TH7041100 NLA

1шт.

0B

4461992

Isolator

SUB FOR TH4461992

1шт.

0C

4461993

Isolator

SUB FOR TH4461993

1шт.

1

4204586

Bumper

SUB FOR TH108668

2шт.

2

14M7274

Nut

M10

2шт.

3

12M7066

Lock Washer

10 mm

2шт.

5

7040576

Cover

SUB FOR TH7040576

1шт.

7049857

Cover

1шт.

5A

7040570

Cover

SUB FOR TH7040570

1шт.

7049856

Cover

1шт.

5B

4461994

Isolator

SUB FOR TH4461994

1шт.

4647705

Isolator

1шт.

6

14M7273

Nut

M8

6шт.

7

Washer

12M7065 NLA

6шт.

8

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

10

8084495

Cover

SUB FOR 8082065

1шт.

8100437

Cover

1шт.

10A

Cover

8084494, 8100438 NLA SUB 8100437

1шт.

10B

4459338

Isolator

SUB FOR TH4459338

1шт.

10C

4445540

Isolator

SUB FOR TH4445540

1шт.

10D

4485886

Isolator

1шт.

13

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

42

4456777

Isolator

SUB FOR TH4456777

1шт.

43

4425573

Clip

SUB FOR TH4425573

7шт.

45

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

19M7403

Cap Screw

M12 X 35

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

46

4435575

Spacer

SUB FOR TH4435575

2шт.

47

4456191

Isolator

SUB FOR TH4456191

2шт.

49

3091338

Cover

SUB FOR TH3091338

1шт.

50

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.
