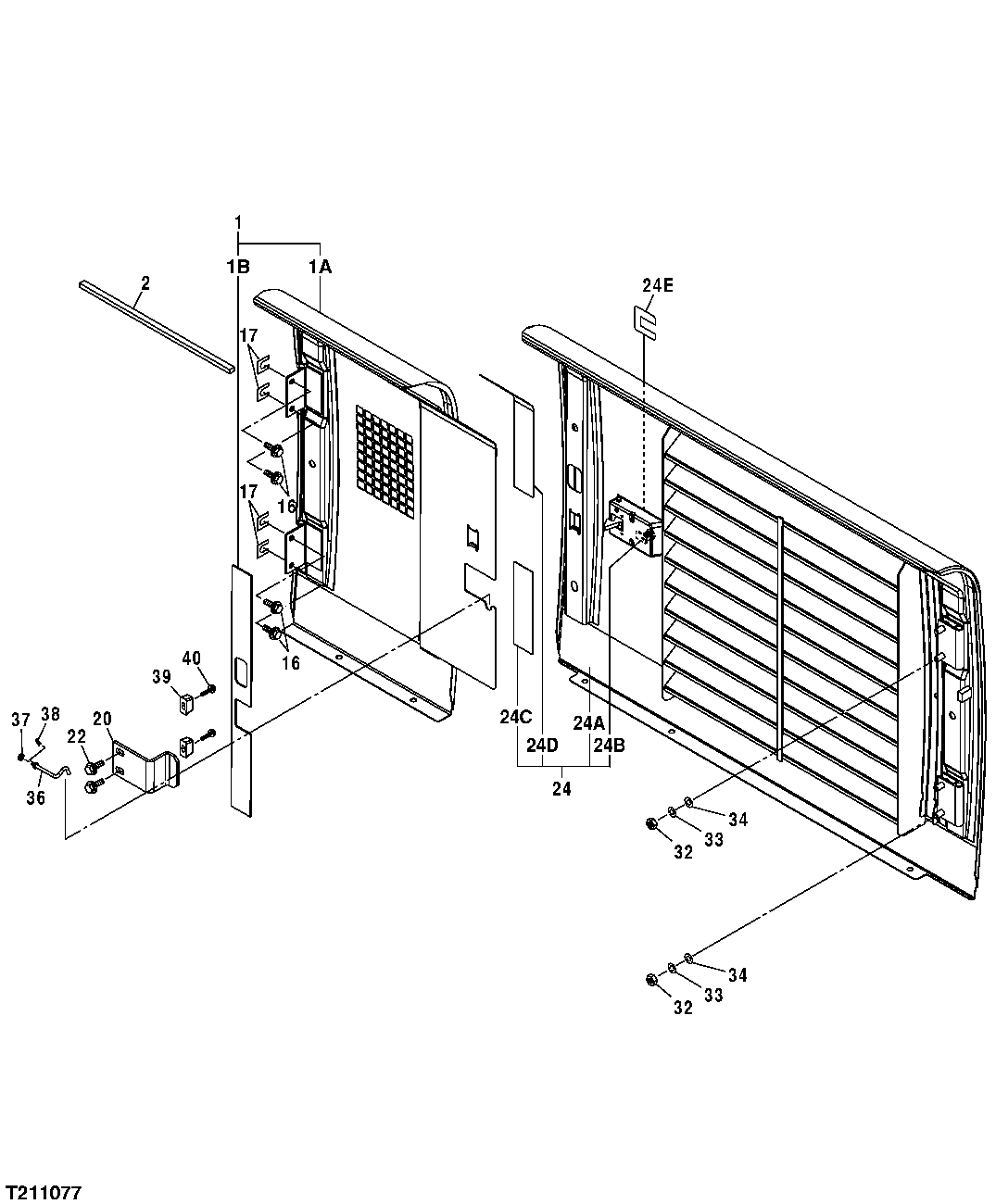

Запчасти John Deere 50CLC 174 - ACCESS DOORS AND PANEL (RIGHT SIDE) 1910 HOOD AND ENGINE ENCLOSURE

1

7041519

Door

NLA; ORDER 7043596; SUB FOR TH7041519

1шт.

7043596

Door

SUB FOR 7041519; ALSO ORDER 4463782

1шт.

1A

Door

TH6020617 NLA

1шт.

1B

FYA00015875

Isolator

SUB FOR 4425576 AND TH4425576

1шт.

2

4463782

Isolator

SUB FOR TH4463782

1шт.

16

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

17

4345838

Shim

SUB FOR AT202357

4шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

20

4445849

Stop

SUB FOR TH4445849

1шт.

22

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

24

6019689

Door

SUB FOR TH6019689

1шт.

24A

Door

TH5007428 NLA

1шт.

24B

4409396

Lock

SUB FOR TH4409396

1шт.

24C

4453765

Isolator

SUB FOR TH4453765

1шт.

24D

4453760

Isolator

SUB FOR TH4453760

1шт.

24E

4461342

Clip

1шт.

32

14M7275

Nut

M12

4шт.

33

12H301

Lock Washer

1/2"

4шт.

34

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

36

9751797

Latch

SUB FOR TH9751797

1шт.

37

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

38

M800051

Pin

SUB FOR CH10542

1шт.

39

4609950

Stop

SUB FOR TH4424157, 4424157

2шт.

40

19M8477

Cap Screw

M6 X 40

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.
