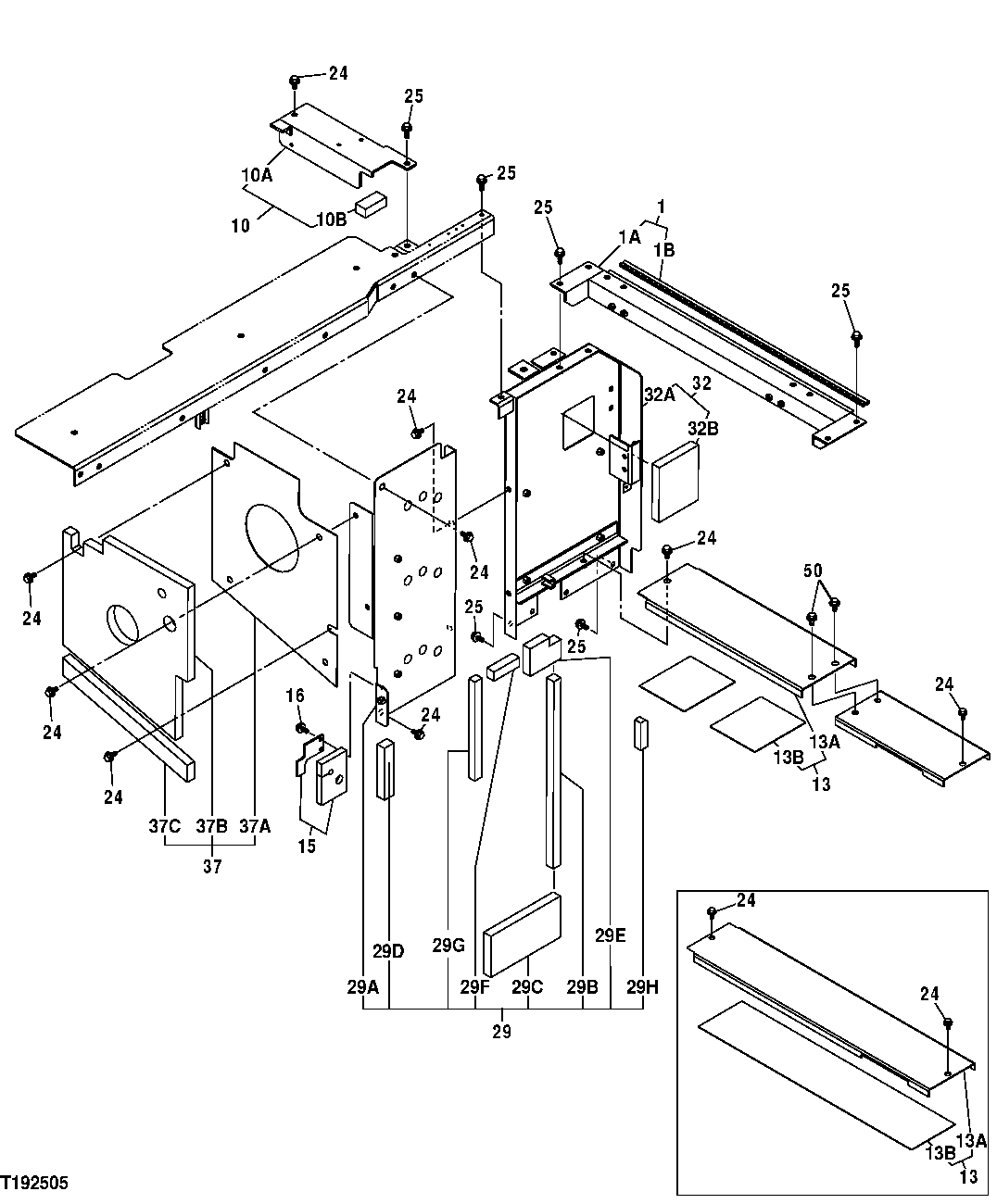

Запчасти John Deere 50CLC 172 - SHEET METAL (SUPPORTS AND COVERS) 1910 HOOD AND ENGINE ENCLOSURE

1

7039465

Support

(SUB FOR TH7039465)

1шт.

1A

Support

( TH7039460 NLA)

1шт.

1B

4446179

Sealing Trim

(SUB FOR TH4446179)

1шт.

10

9757575

Support

(SUB FOR TH9757575)

1шт.

10A

Support

( TH8084542 NLA)

1шт.

10B

4463431

Isolator

(SUB FOR TH4463431)

1шт.

13

8079863

Cover

(SUB FOR TH8079863)

1шт.

8091846

Cover

1шт.

13A

Cover

( TH3089281 NLA)

1шт.

Cover

( 3098158 NLA)

1шт.

13B

4436867

Isolator

(SUB FOR TH4436867)

1шт.

4601635

Isolator

2шт.

15

9757492

Cover

(SUB FOR TH9757492)

1шт.

16

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

24

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

12шт.

19M8011

Cap Screw

M12 X 30

12шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

12шт.

25

19M8011

Cap Screw

M12 X 30

10шт.

12H301

Lock Washer

1/2"

10шт.

24M7047

Washer

13 X 24 X 2.500 mm

10шт.

29

7040866

Cover

(SUB FOR TH7040866)

1шт.

29A

Cover

( TH7040865 NLA)

1шт.

29B

4436921

Isolator

(SUB FOR TH4436921)

1шт.

29C

4436922

Isolator

(SUB FOR TH4436922)

1шт.

29D

4459173

Isolator

(SUB FOR TH4459173)

1шт.

29E

4459174

Isolator

(SUB FOR TH4459174)

1шт.

29F

4463427

Isolator

(SUB FOR TH4463427)

1шт.

29G

4463426

Isolator

(SUB FOR TH4463426)

1шт.

29H

4462305

Isolator

(SUB FOR TH4462305)

1шт.

32

8084546

Support

(SUB FOR TH8084546)

1шт.

32A

Support

( TH7040578 NLA)

1шт.

32B

4449555

Isolator

(SUB FOR TH4449555)

1шт.

37

7040871

Cover

(SUB FOR TH7040871)

1шт.

37A

Cover

( TH3092803 NLA)

1шт.

37B

3092804

Isolator

(SUB FOR TH3092804)

1шт.

37C

4436866

Isolator

(SUB FOR TH4436866)

1шт.

48

8091847

Cover

1шт.

50

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.
