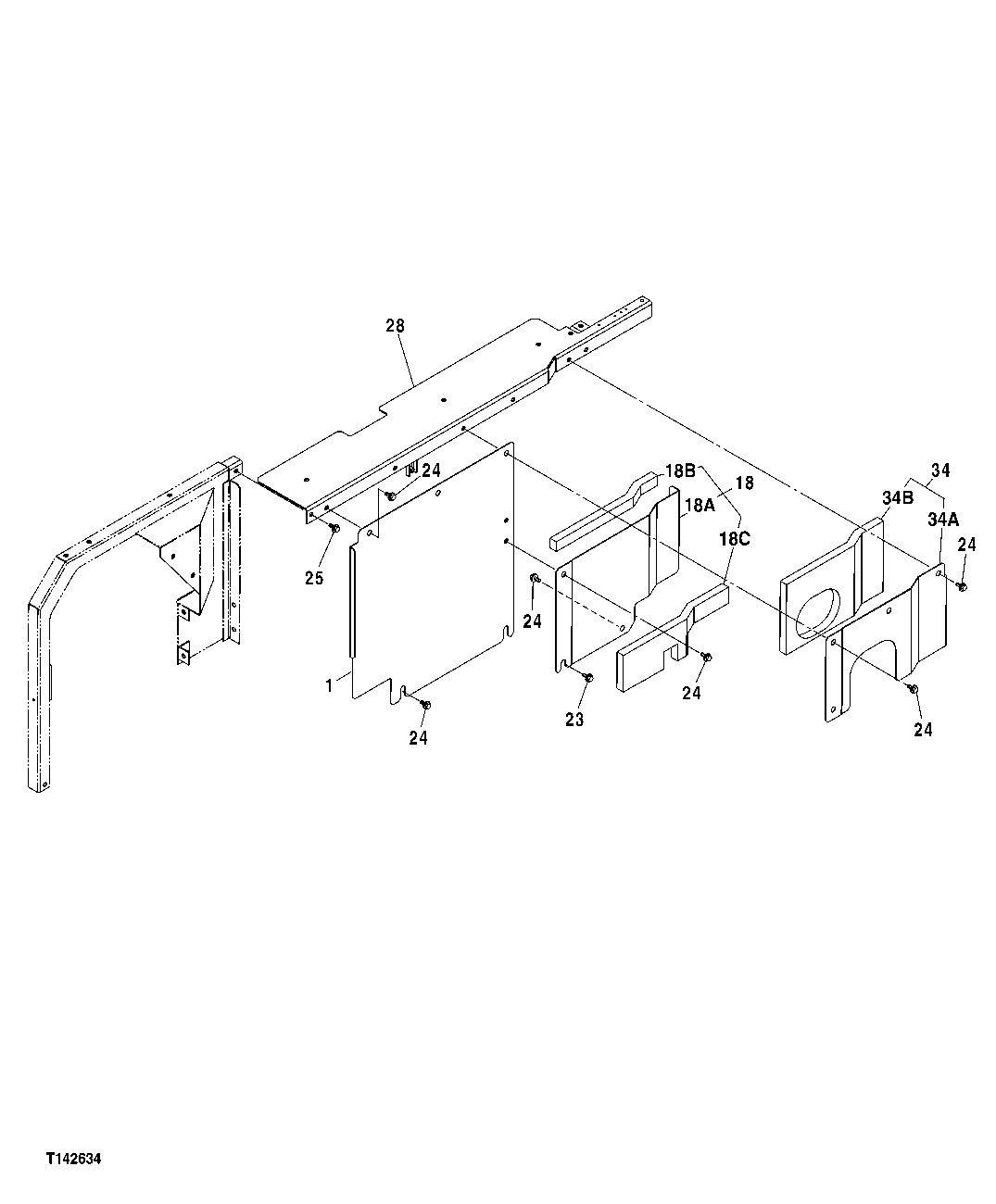

Запчасти John Deere 50CLC 171 - SHEET METAL (SUPPORTS AND COVERS) 1910 HOOD AND ENGINE ENCLOSURE

1

Cover

(SUB FOR TH7040489)( 7040489 NLA)

1шт.

18

8084251

Cover

(SUB FOR TH8084251)

1шт.

18A

Cover

( TH2046692 NLA)

1шт.

18B

4455162

Isolator

(SUB FOR TH4455162)

1шт.

18C

4455161

Isolator

(SUB FOR TH4455161)

1шт.

23

19M7872

Cap Screw

M12 X 25

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

24M7180

Washer

13 X 37 X 3 mm

1шт.

24

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

9шт.

19M8011

Cap Screw

M12 X 30

9шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

9шт.

25

19M8011

Cap Screw

M12 X 30

1шт.

12H301

Lock Washer

1/2"

1шт.

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

28

7040452

Support

(SUB FOR TH7040452)

1шт.

7049855

Support

1шт.

34

8084250

Cover

(SUB FOR TH8084250)

1шт.

34A

Cover

( TH3092207 NLA)

1шт.

34B

4455160

Isolator

(SUB FOR TH4455160)

1шт.
