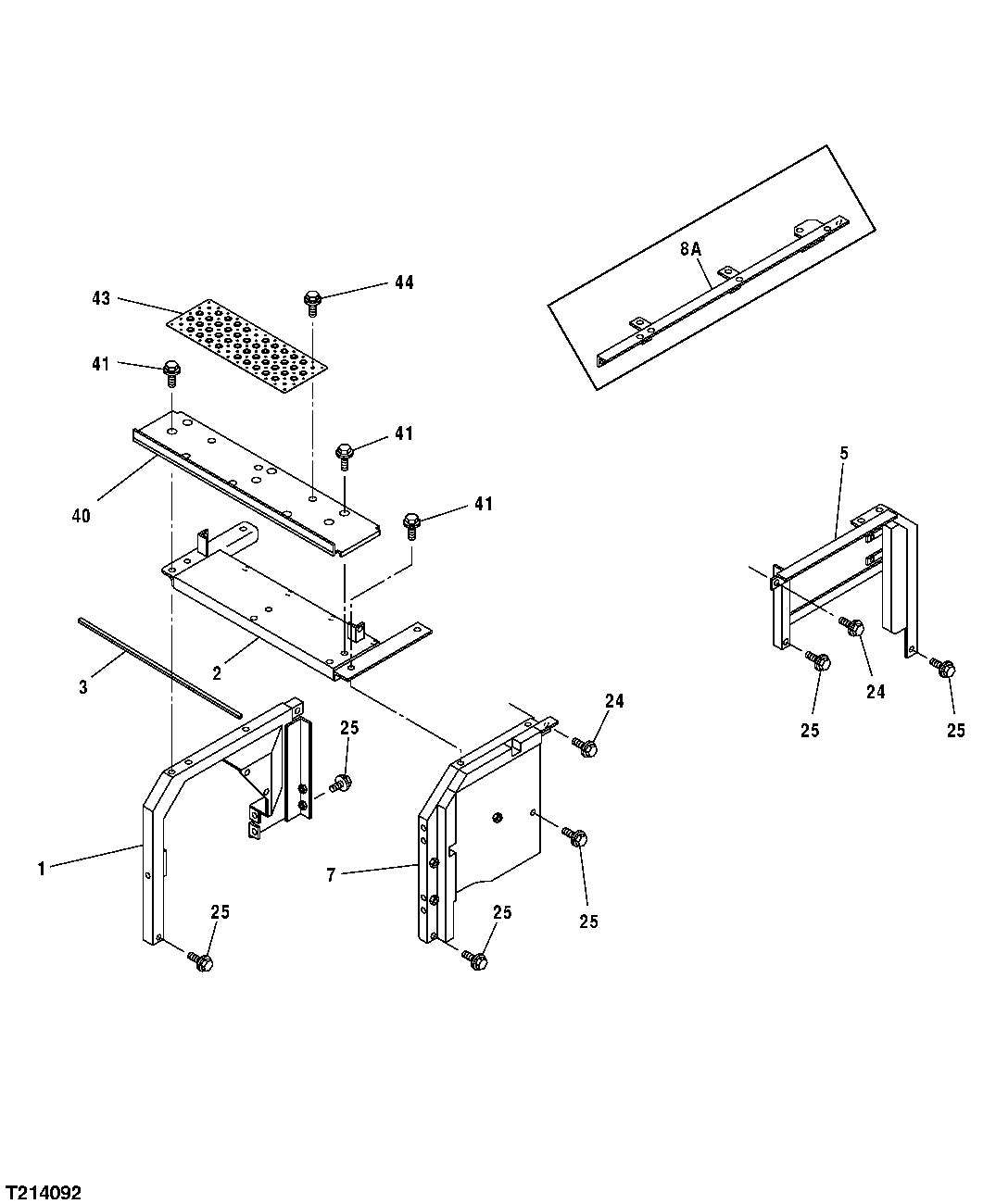

Запчасти John Deere 50CLC 170 - SHEET METAL (SUPPORTS AND COVERS) 1910 HOOD AND ENGINE ENCLOSURE

1

7040487

Support

(SUB FOR TH7040487)

1шт.

7044063

Support

1шт.

2

7041457

Cover

(SUB OR 8090528 ) (ALSO ORDER 4485884 ) (SUB FOR TH7041457)

1шт.

3

4485884

Isolator

1шт.

5

8084270

Support

(SUB FOR TH8084270)

1шт.

7

Support

1шт.

8A

8084408

Support

(SUB FOR TH8084408)

1шт.

8B

8103426

Support

1шт.

24

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

25

19M8011

Cap Screw

M12 X 30

7шт.

12H301

Lock Washer

1/2"

7шт.

24M7047

Washer

13 X 24 X 2.500 mm

7шт.

40

7041644

Step

(SUB FOR TH7041644)

1шт.

41

19M7361

Cap Screw

M12 X 50

6шт.

12M7068

Lock Washer

14 mm

6шт.

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

43

3091338

Cover

(SUB FOR TH3091338)

1шт.

44

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.
