Запчасти John Deere 50CLC 167 - HEATER HOSES 1830 HEATING AND AIR CONDITIONING

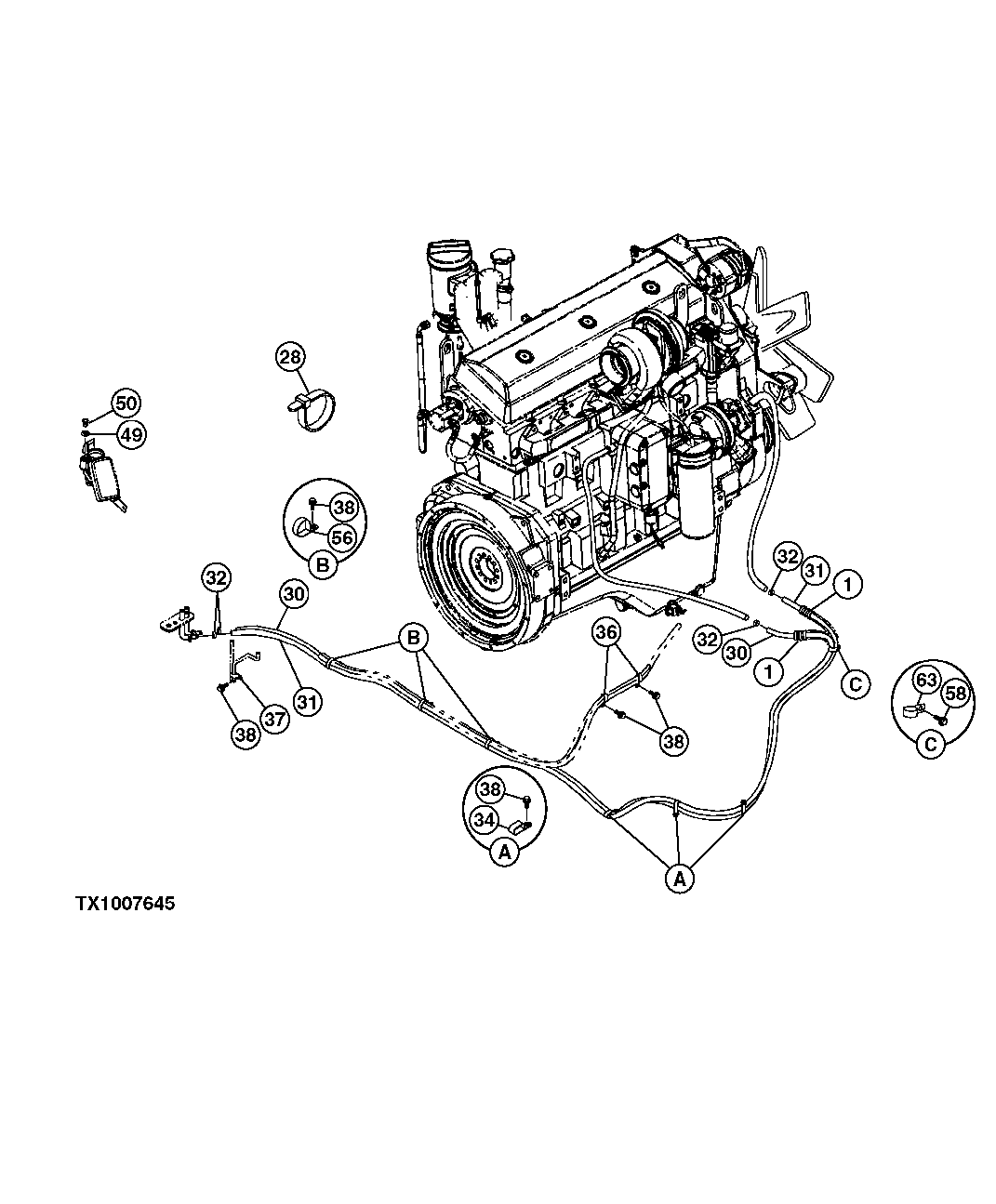

Схема запчастей John Deere 50CLC - 167 - HEATER HOSES 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

1

Hose Guard

(CTL) (MAKE FROM AT138222)

6шт.

28

H77698

Tie Band

20шт.

30

4460917

Hose

Heater (SUB FOR TH4460917)

1шт.

31

4460916

Hose

Heater (SUB FOR TH4460916)

1шт.

32

WZ2141223

Hose Clamp

(SUB FOR AA34965)

4шт.

34

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

3шт.

36

4190266

Clip

(SUB FOR TH108793)

2шт.

37

T32854

Clamp

1шт.

38

19M7938

Cap Screw

M10 X 20

9шт.

12M7066

Lock Washer

10 mm

9шт.

49

4405194

Spacer

(SUB FOR AT186240)

1шт.

50

4405814

Sensor

(SUB FOR AT186239)

1шт.

56

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

3шт.

58

19M8324

Cap Screw

M10 X 16

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

63

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

Выбрано товаров: 16
