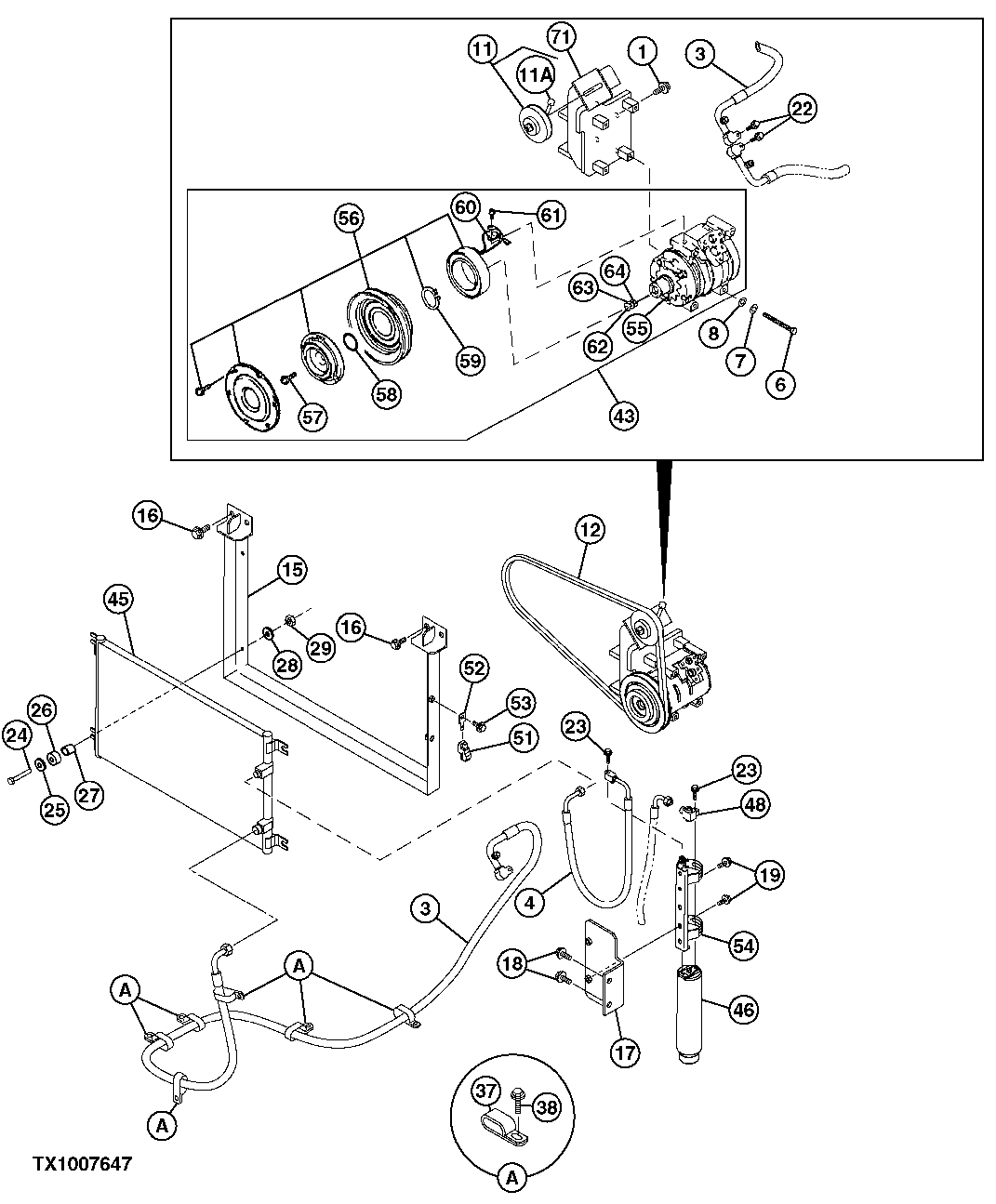

Запчасти John Deere 50CLC 163 - AIR CONDITIONER (COMPRESSOR AND CONDENSER) (CONTINUED) 1830 HEATING AND AIR CONDITIONING

38

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

43

4436025

Compressor

SUB FOR TH4436025

1шт.

Compressor Reman

SE502087 NLA, REMAN FOR 4436025

1шт.

45

Vapor Condenser

4431082 NLA

1шт.

4617327

Vapor Condenser

1шт.

46

4333461

Tank

SUB FOR AT215511

1шт.

48

4374958

Adapter Fitting

SUB FOR AT181084

1шт.

51

4405815

Sensor

SUB FOR AT186241

1шт.

52

4411931

Bracket

SUB FOR TH4411931

1шт.

53

19M7881

Screw

M8 X 20

1шт.

54

4446657

Holder

SUB FOR TH4446657

1шт.

55

Compressor

ORDER 4436025, 4469049 NLA

1шт.

56

4469050

Clutch

1шт.

57

4475244

Bolt

1шт.

58

4475230

Ring

1шт.

59

4475236

Ring

1шт.

60

4475246

Clamp

1шт.

61

4475245

Screw

1шт.

62

4475237

Washer

1шт.

63

4475242

Washer

1шт.

64

4475243

Washer

1шт.

70

4618721

Bushing

Not Illustrated

4шт.

70A

4618720

Isolator

Not Illustrated

1шт.

70B

4618719

Spacer

Not Illustrated

1шт.

71

7040651

Bracket

SUB FOR TH7040651

1шт.
