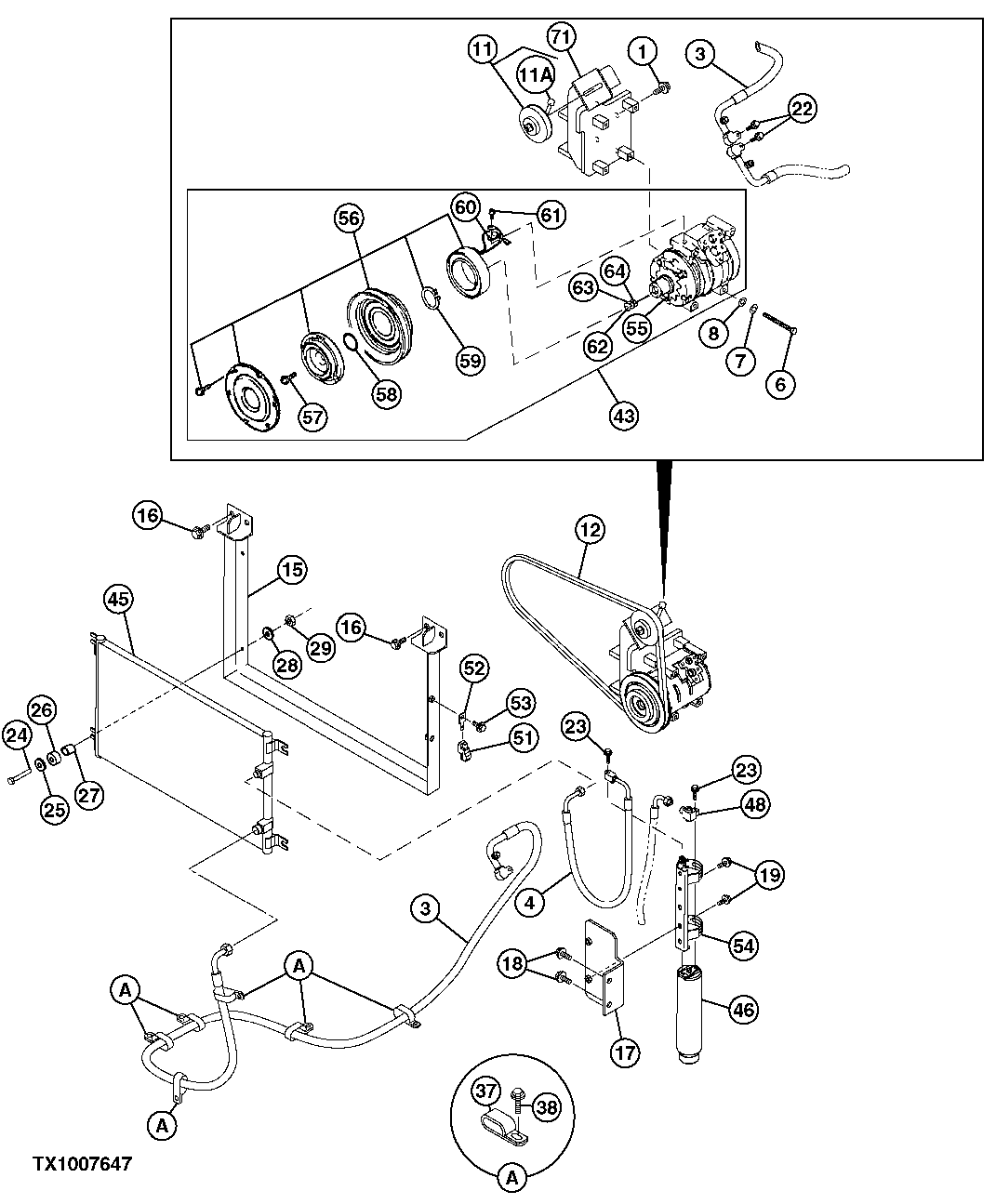

Запчасти John Deere 50CLC 162 - AIR CONDITIONER (COMPRESSOR AND CONDENSER) 1830 HEATING AND AIR CONDITIONING

1

19M7403

Cap Screw

M12 X 35

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

3

4456607

Refrigerant Hose

SUB FOR TH4456607

1шт.

957366

O-Ring

SUB FOR 4350207

1шт.

4475232

Cap

1шт.

4

4436479

Refrigerant Hose

SUB FOR TH4436479

1шт.

CH11568

Packing

SUB FOR 4350187 AND 4226445

1шт.

6

19M8504

Cap Screw

M8 X 80

4шт.

7

Washer

12M7065 NLA

4шт.

8

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

11

4346770

Pulley

SUB FOR AT213915

1шт.

11A

4451204

Bolt

1шт.

12

4661031

V-Belt

SUB FOR AT215493 OR 4235487 AND AT332521

1шт.

15

8082202

Bracket

SUB FOR TH8082202

1шт.

Bracket

8089832 NLA SUB 8082202, 461732 7, 4618721, 19M7513 AND 24M7055

1шт.

8082202

Bracket

1шт.

16

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

17

8081152

Bracket

SUB FOR TH8081152

1шт.

18

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

19

19M7163

Cap Screw

M8 X 25 USE WITH 8082202

6шт.

Washer

USE WITH 8082202; 12M7065 NLA

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm USE WITH 8082202

6шт.

19M7163

Cap Screw

M8 X 25 USE WITH 8089832

2шт.

Washer

USE WITH 8089832; 12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm USE WITH 8089832

2шт.

22

19M7874

Cap Screw

M6 X 30

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12H302

Lock Washer

1/4"

2шт.

23

19M7933

Cap Screw

M6 X 25

2шт.

12M7006

Lock Washer

6 mm

2шт.

24

19M7288

Cap Screw

M8 X 30

4шт.

19M8359

Cap Screw

M8 X 45

4шт.

25

4346037

Washer

SUB FOR 4338215

4шт.

4346037

Washer

4шт.

26

4618722

Cushion

4шт.

27

4620483

Spacer

4шт.

28

J222008

Washer

4шт.

29

14M7273

Nut

M8

4шт.

37

T32854

Clamp

6шт.
