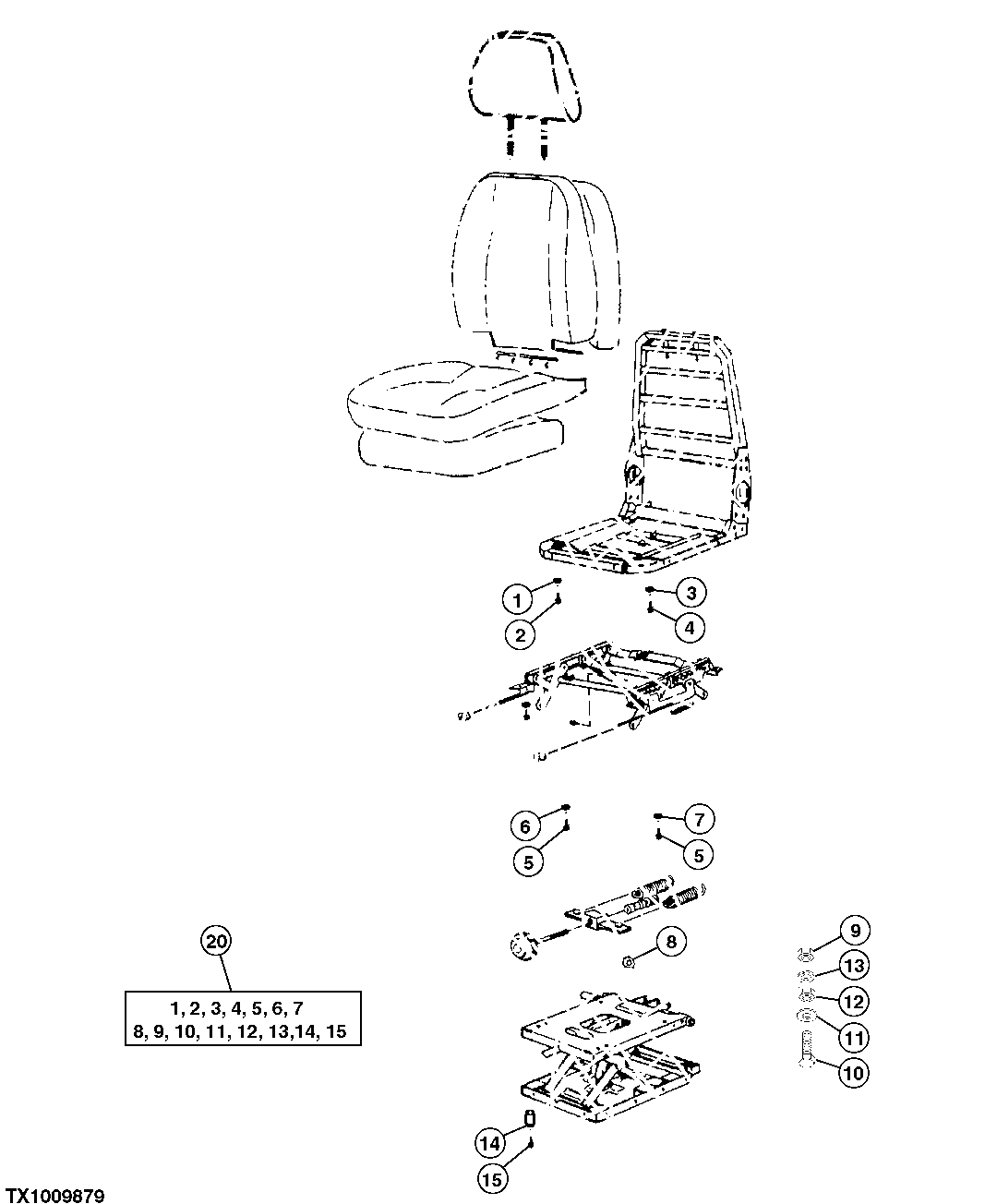

Запчасти John Deere 50CLC 155 - SEAT HARDWARE SERVICE KIT 1821 SEAT AND SEAT BELTS

1

Washer

( 157020 NLA) Height R iser To Upper Hardware

4шт.

2

Cap Screw

( 157070 NLA) Height R iser To Upper Hardware

4шт.

3

Washer

( 2160621013 NLA) Height Riser To Upper Hardware

4шт.

4

Cap Screw

( 53511340001 NLA) Holds The Height Riser To The Upper Seat

4шт.

5

Bolt

( 79495 NLA) Height Rise r To Suspension Hardware

4шт.

6

Spacer

( 151141 NLA) Height Ris er To Suspension Hardware

2шт.

7

Washer

( 151207 NLA) Height Ris er To Suspension Hardware

2шт.

8

Washer

( 53530010007 NLA) Height R iser To Suspension Hardware

4шт.

9

Nut

( 53500250005 NLA) Sli de Rails To Suspension

6шт.

10

Screw

( 53490210001 NLA) Sli de Rails To Suspension

6шт.

11

Washer

( 53530020006 NLA) Sli de Rails To Suspension

6шт.

12

Spacer

( 166579 NLA) Slide Rails To Suspension

6шт.

13

Washer

( 2160821019 NLA) Below The N ut On Slide Rail To Suspension

6шт.

14

Spacer

( 150584 NLA) Between Slide Rail and Suspension Brackets

4шт.

15

Screw

( 2050616016 NLA) Front Slid e Rail Brackets To Suspension

4шт.

20

AT335573

Hardware Kit

1шт.
