Запчасти John Deere 50CLC 133 - CAB COMPONENTS (DOOR) 1810 OPERATOR ENCLOSURE

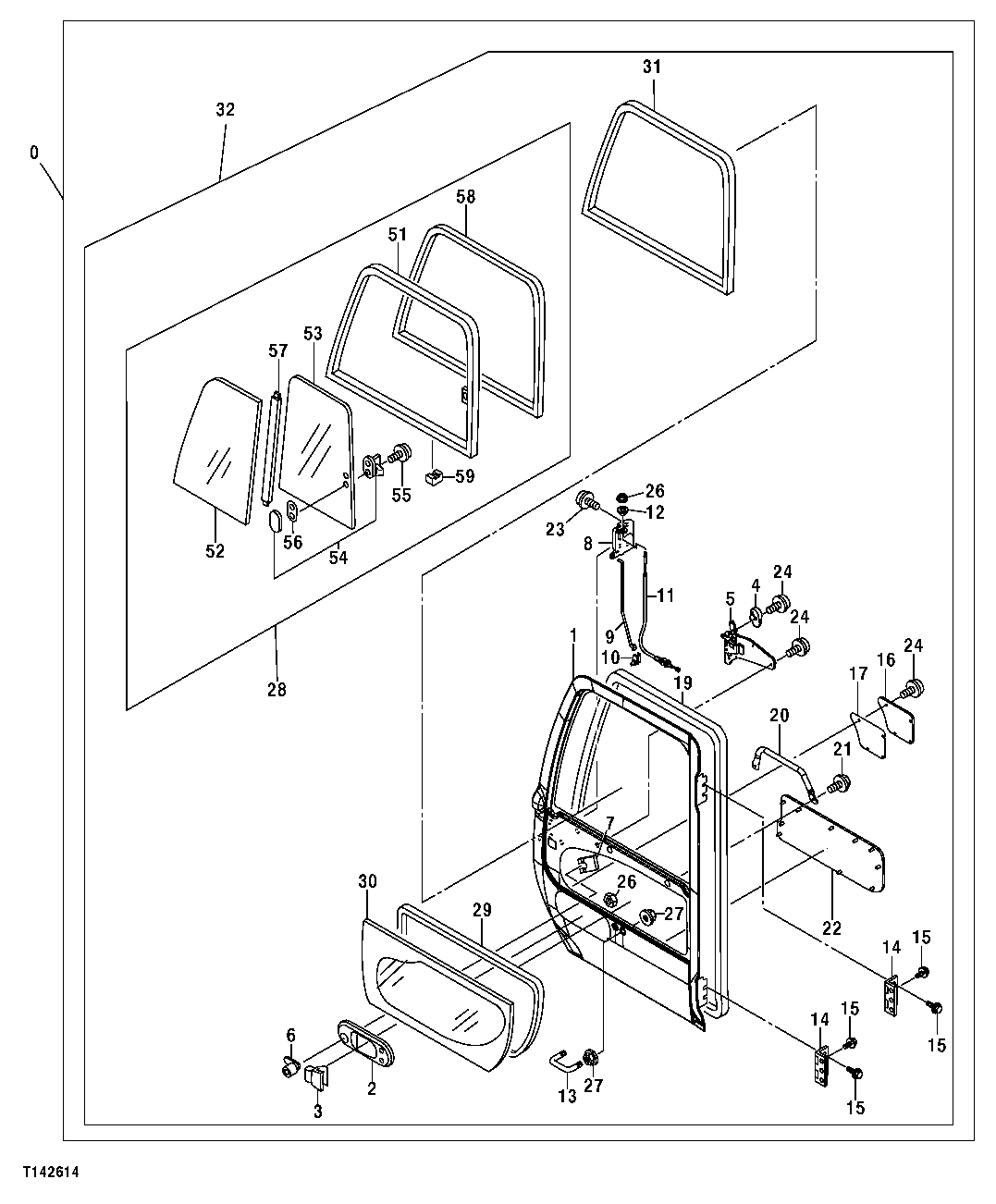

Схема запчастей John Deere 50CLC - 133 - CAB COMPONENTS (DOOR) 1810 OPERATOR ENCLOSURE

Артикул

Название

Примечание

Количество

0

9205229

Cab

Contains All Items On This Page - Additional Components Listed On S eparate Pages (SUB FOR TH9205229)

1шт.

1

Door

TH4453669NLA;

1шт.

2

4455979

Cover

(SUB FOR TH4455979)

1шт.

3

4369645

Handle

Outer (SUB FOR AT214145)

1шт.

4

4455975

Handle

Inner (SUB FOR TH4455975)

1шт.

5

4620431

Handle

(SUB FOR TH4456173, 4456173)

1шт.

6

4362135

Lock

(SUB FOR AT176789)

1шт.

7

4372091

Clip

(SUB FOR AT214290)

1шт.

8

4455982

Lock

(SUB FOR TH4455982)

1шт.

9

4455983

Rod

(SUB FOR TH4455983)

1шт.

10

4444664

Holder

(SUB FOR TH4444664)

1шт.

11

4456171

Wire

(SUB FOR TH4456171)

1шт.

12

4455981

Bushing

(SUB FOR TH4455981)

1шт.

13

4369661

U-Bolt

(SUB FOR AT214160)

1шт.

14

4666483

Hinge

( 4455980 NLA) (SUB FOR TH4455980)

2шт.

15

R168831

Cap Screw

(SUB FOR AT214313, 4372261 OR 4356695)

ARшт.

24M7028

Washer

10.500 X 20 X 2 mm ( 24M7271 NLA)

ARшт.

16

4455976

Cover

(SUB FOR TH4455976)

1шт.

17

4455977

Isolator

(SUB FOR TH4455977)

1шт.

19

4455978

Weatherstrip

(SUB FOR TH4455978)

1шт.

20

4666484

Handrail

(SUB FOR 4453670 OR 4453670J)

1шт.

21

4372212

Screw With Washer

(USE WITH 4453670J) (SUB FOR AT214299)

2шт.

4463961

Bolt

(USE WITH 4666484)

2шт.

22

4453671

Sheet

(SUB FOR TH4453671)

1шт.

23

4382885

Bolt

(SUB FOR AT213624, M470625)

3шт.

12M7081

Lock Washer

6.400 mm (SUB FOR AT214314 OR 4372560)

1шт.

24

21M7285

Screw

M6 X 12 (SUB FOR 21M7246)

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

26

4456172

Nut

(SUB FOR TH4456172)

1шт.

27

4414857

Nut

(SUB FOR AT157068)

4шт.

28

4453676

Window

Bronze (SUB FOR TH4453676)

1шт.

4602582

Window

Green

1шт.

29

4400087

Seal

(SUB FOR AT218141)

1шт.

30

4448310

Windowpane

Bronze (SUB FOR TH4468943, 4468943)

1шт.

4602566

Windowpane

Green

1шт.

31

4448315

Isolator

(SUB FOR TH4448315)

1шт.

32

4474301

Door

(SUB FOR TH4453668)

1шт.

51

4453673

Frame

1шт.

52

Windowpane

Bronze ( 4448308, TH444 8308 NLA) (SUB 4602564R)

1шт.

4602564R

Windowpane

Green (SUB FOR 4602564)

1шт.

53

Windowpane

Bronze (SUB FOR TH4448309 ) (SUB 4602565R ( 4448309 NLA))

1шт.

4602565R

Windowpane

Green (SUB FOR 4602565)

1шт.

54

4369653

Lock

(SUB FOR AT214152)

1шт.

55

J680410

Screw With Washer

(SUB FOR AT213608)

2шт.

56

4420531

Spacer

(SUB FOR AT214292, 4372093)

1шт.

57

4453675

Isolator

(SUB FOR TH4453675)

1шт.

58

4453674

Window

Felt Pad in Frame Chan nel (SUB FOR TH4453674)

1шт.

59

4147896

Spacer

(SUB FOR TH108646)

3шт.

Выбрано товаров: 49
