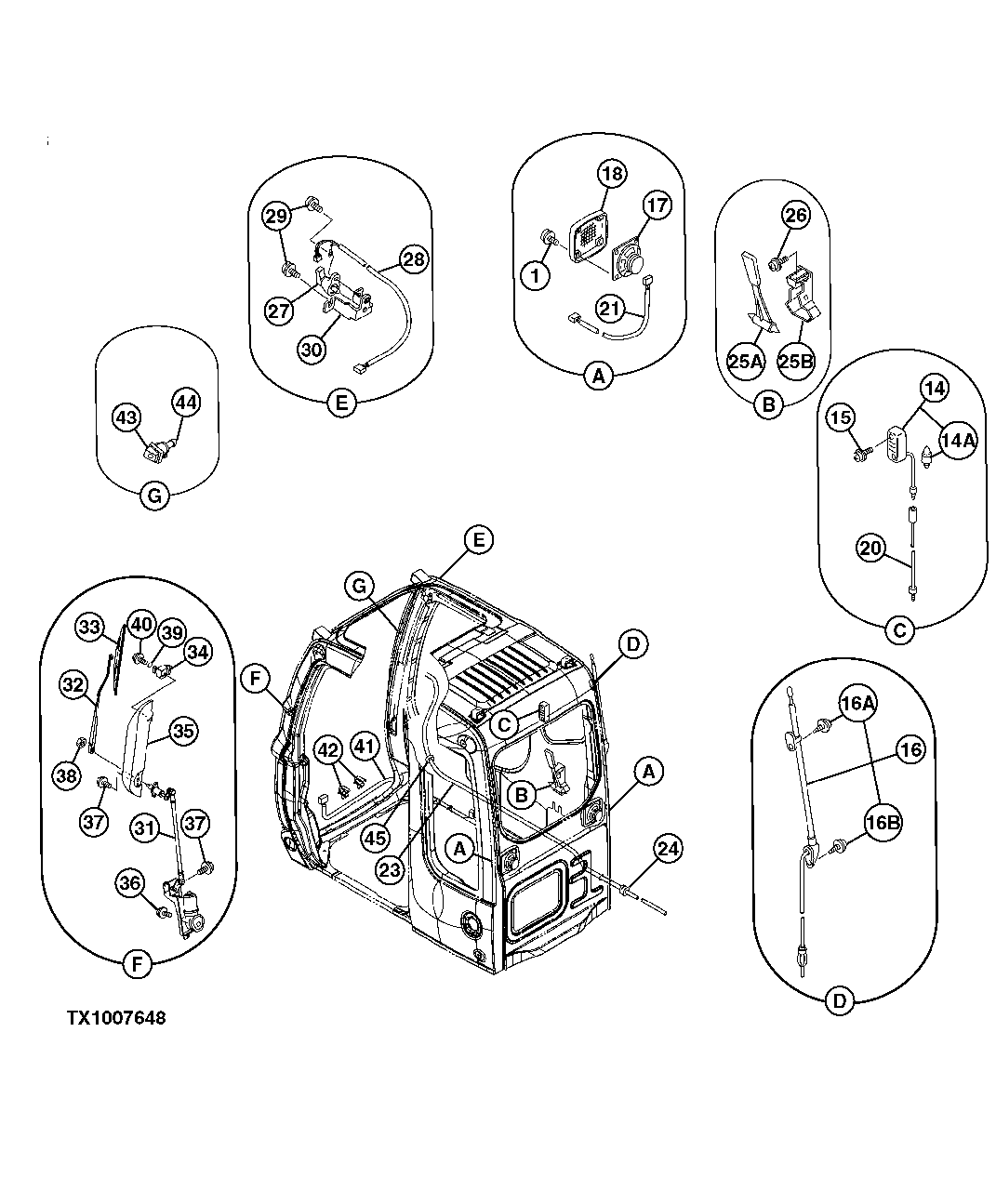

Запчасти John Deere 50CLC 130 - CAB COMPONENTS (RADIO, WIPER) 1810 OPERATOR ENCLOSURE

0

9205229

Cab

Contains All Items On This Page - Additional Components Listed On Separate Pages SUB FOR TH9205229

1шт.

1

4456427

Screw

SUB FOR TH4456427

8шт.

14

4187082

Lamp

SUB FOR TH108567

1шт.

14A

4698994

Bulb

SUB FOR TH108568, 4187083

1шт.

15

4456428

Screw

SUB FOR TH4456428

2шт.

16

4707183

Antenna

SUB FOR AT131697; 4123177 NLA

1шт.

16A

4210412

Screw

SUB FOR AT131864

1шт.

16B

4210413

Screw

SUB FOR AT131865

1шт.

17

4361302

Speaker

SUB FOR AT214007

2шт.

18

4364504

Grille

SUB FOR AT214017

2шт.

20

4260369

Wiring Harness

SUB FOR AT154278

1шт.

21

4369547

Wiring Harness

SUB FOR AT214061

2шт.

23

Bulk Hose

SUB FOR AT214063; 4369549 NLA; MAKE FROM TY25139, CTL, 1530 mm

1шт.

24

4287903

Grommet

SUB FOR AT154413

1шт.

25A

4362700

Hammer

SUB FOR T158020

1шт.

25B

2038764

Bracket

SUB FOR T158021

1шт.

26

4456428

Screw

SUB FOR TH4456428

2шт.

27

4387837

Switch

SUB FOR AT182625

1шт.

28

4402476

Wiring Harness

SUB FOR AT182626

1шт.

29

4456428

Screw

SUB FOR TH4456428

3шт.

30

4456429

Bracket

SUB FOR TH4456429

1шт.

31

4453690

Wiper Motor

SUB FOR TH4453690

1шт.

32

4453687

Wiper Arm

SUB FOR TH4453687

1шт.

33

4453686

Wiper Blade

SUB FOR TH4453686

1шт.

34

4456433

Holder

SUB FOR TH4456433

1шт.

35

4456434

Guard

SUB FOR TH4456434

1шт.

36

19M7881

Screw

M8 X 20

3шт.

37

4456238

Bolt

SUB FOR TH4456238

4шт.

38

14M7273

Nut

M8

1шт.

39

4092111

O-Ring

SUB FOR AT154150

1шт.

40

4456458

Bolt

SUB FOR TH4456458

1шт.

41

4456435

Wiring Harness

SUB FOR TH4456435

1шт.

42

4456436

Clip

SUB FOR TH4456436

2шт.

43

4456450

Nozzle

SUB FOR TH4456450

1шт.

44

4367481

Flow Control Hyd. Valve

SUB FOR AT214041

1шт.

45

4369569

Grommet

SUB FOR AT214079

1шт.
