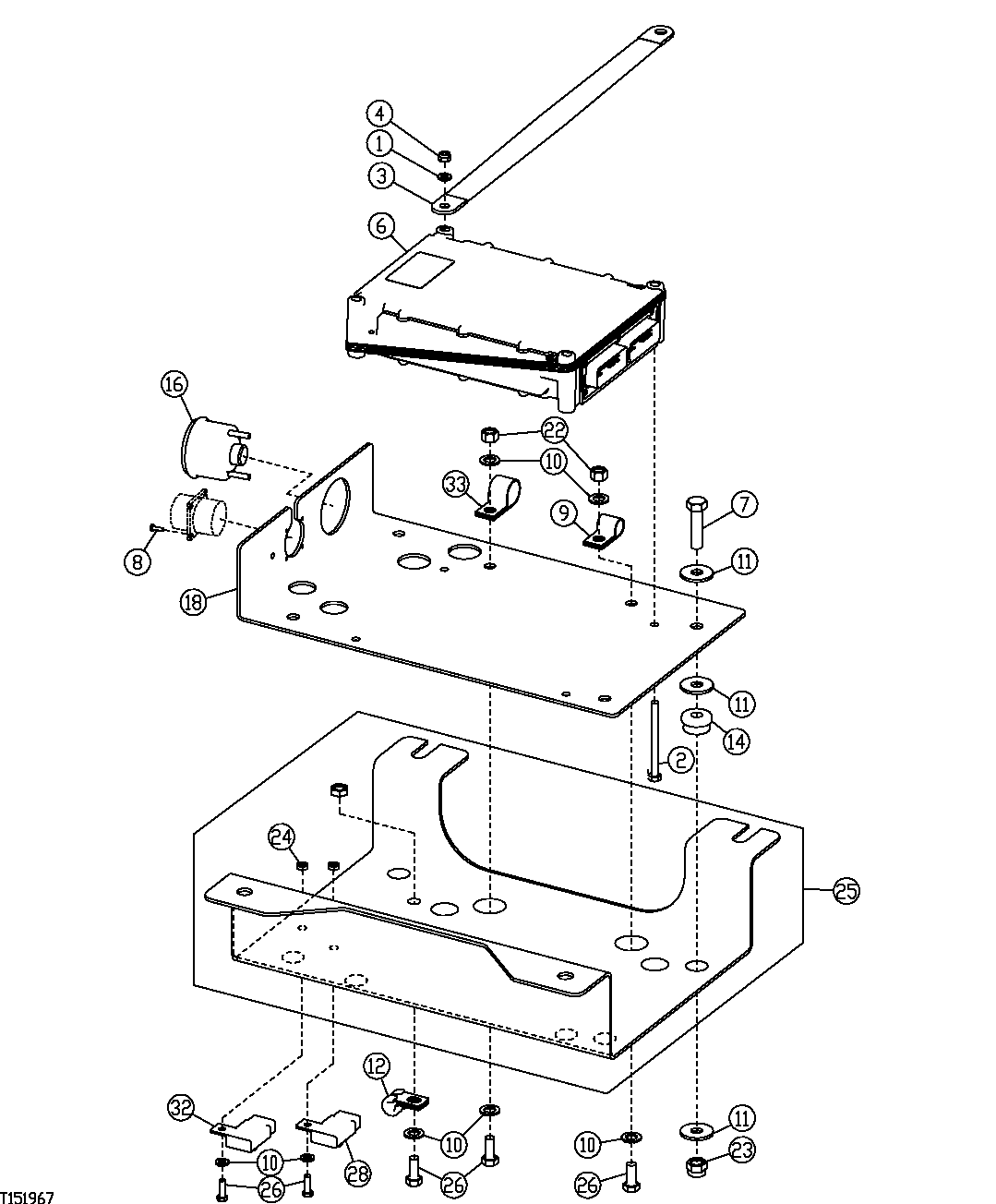

Запчасти John Deere 50CLC 114 - ENGINE CONTROL UNIT ASSEMBLY 1674 WIRING HARNESS AND SWITCHES

1

24M7088

Washer

6.600 X 12 X 1.600 mm

6шт.

2

19M7763

Cap Screw

M6 X 75

4шт.

3

AT180705

Ground Cable

1шт.

4

14M7165

Lock Nut

M6

4шт.

5

19M7372

Cap Screw

M5 X 16

2шт.

6

RE507981

Engine Controller

(MARKED RE507981)

1шт.

7

19M8637

Cap Screw

M10 X 40

4шт.

8

21M7394

Screw

M3 X 10

4шт.

9

T75197

Clamp

1шт.

10

24M7096

Washer

10.500 X 18 X 1.600 mm

5шт.

11

24M7296

Washer

10.500 X 30 X 2.500 mm

12шт.

12

T78974

Clamp

1шт.

14

AT116162

Isolator

4шт.

16

RE68155

Gauge

DIAGNOSTIC DISPLAY UNIT

1шт.

18

T184934

Support

1шт.

22

14M7327

Lock Nut

M8

2шт.

23

14M7517

Lock Nut

M10

4шт.

24

14M7442

Nut

M5

2шт.

25

AT197100

Cover

1шт.

26

19M7881

Screw

M8 X 20

3шт.

28

57M7121

Fuse

1шт.

32

57M7125

Fuse

1шт.

33

T78787

Clamp

1шт.
